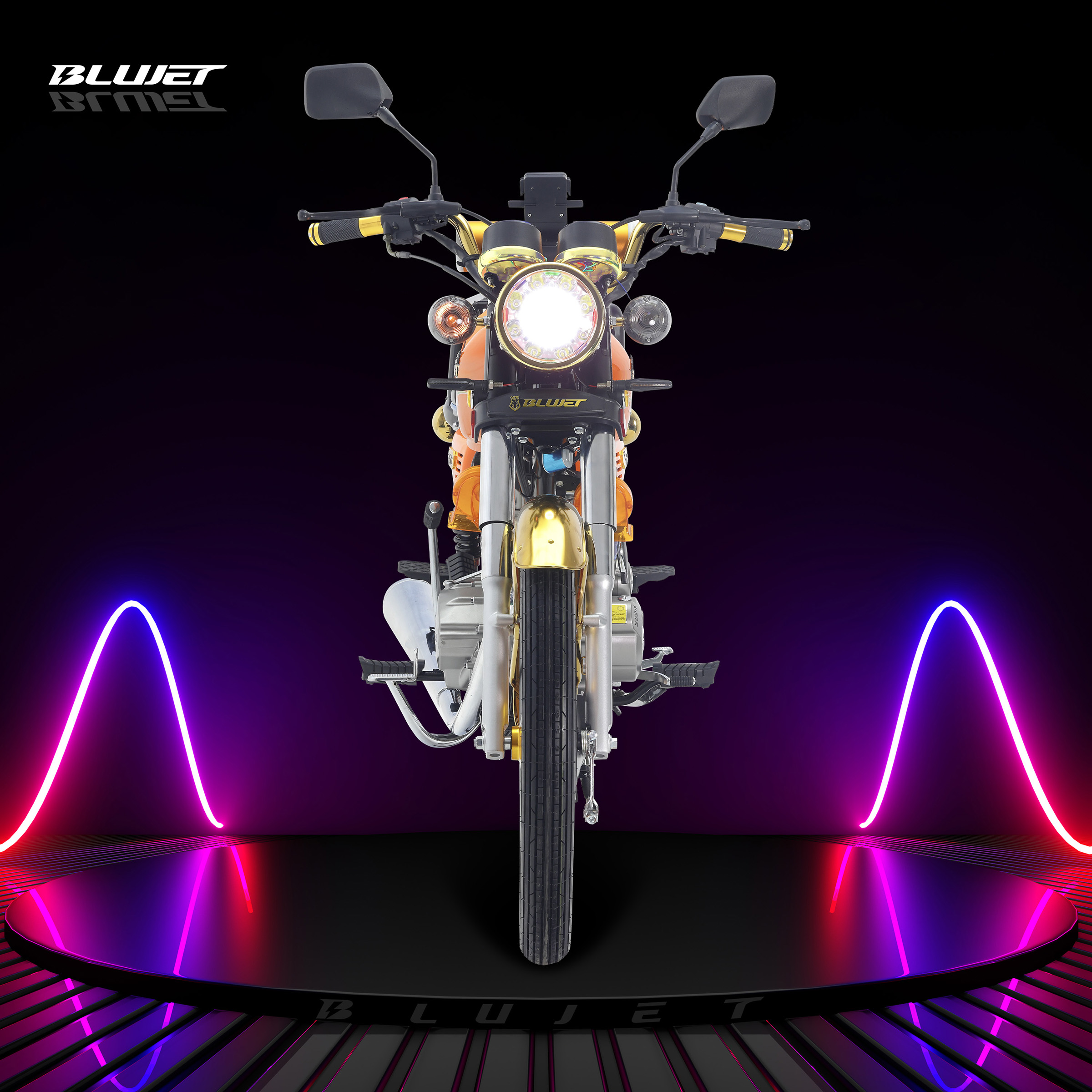

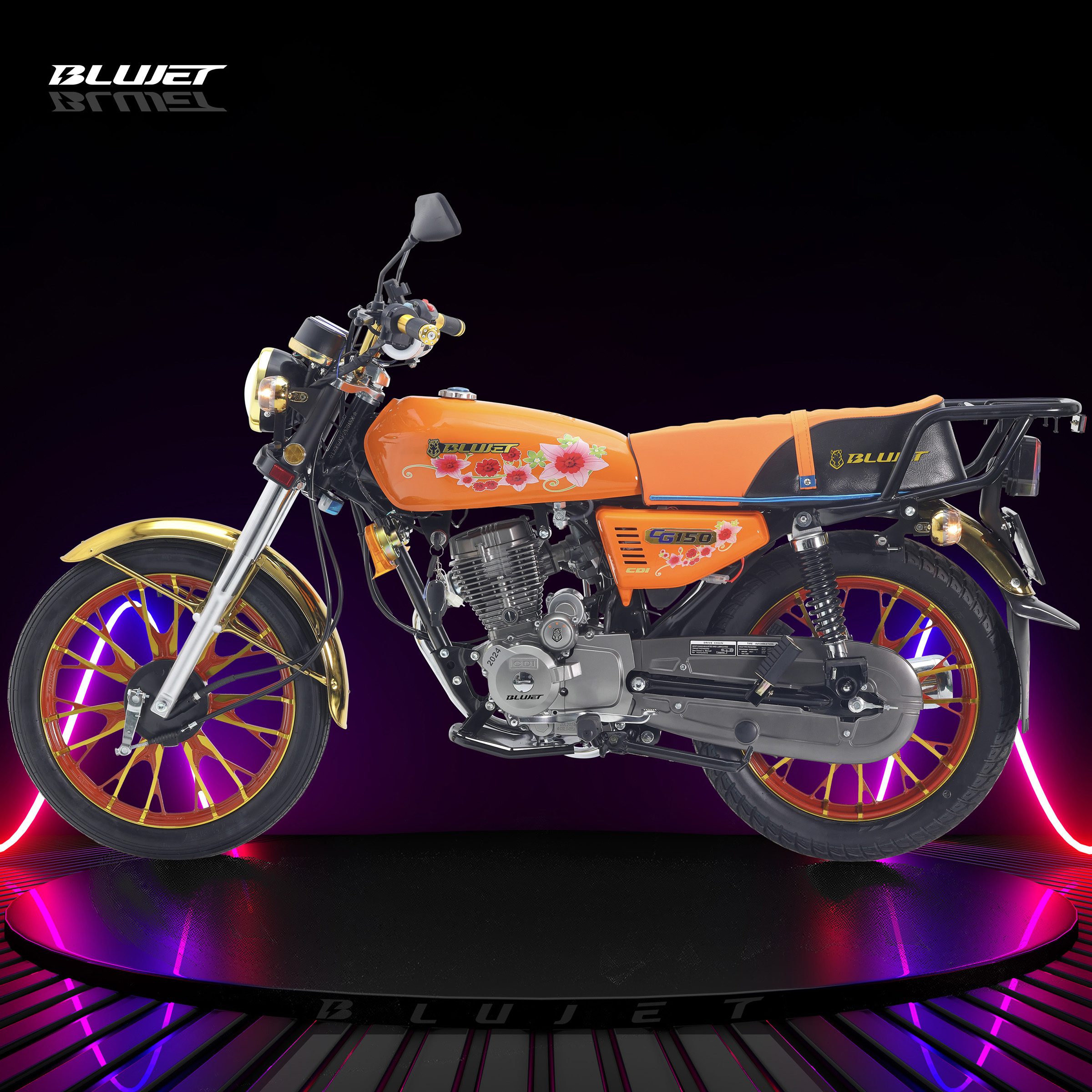

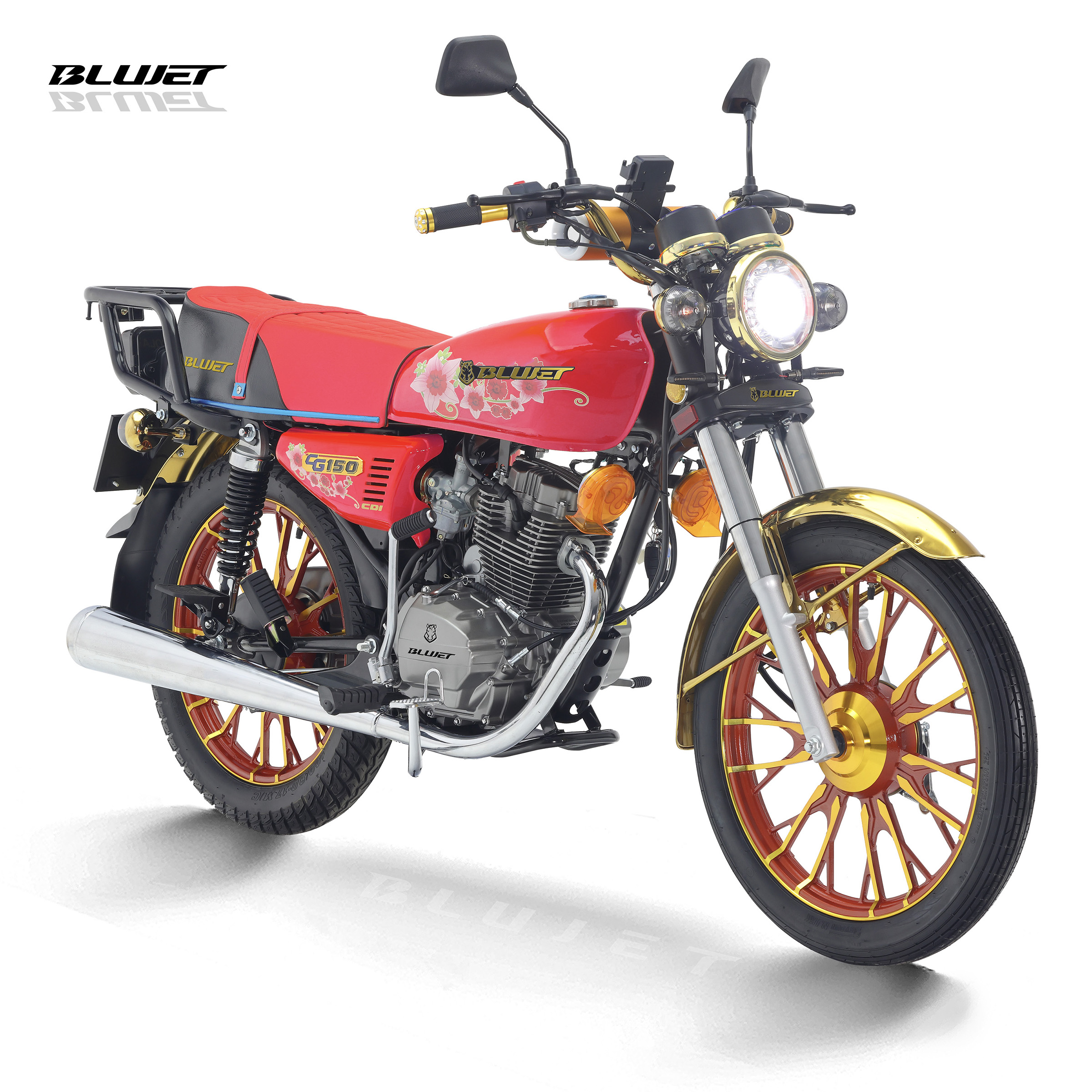

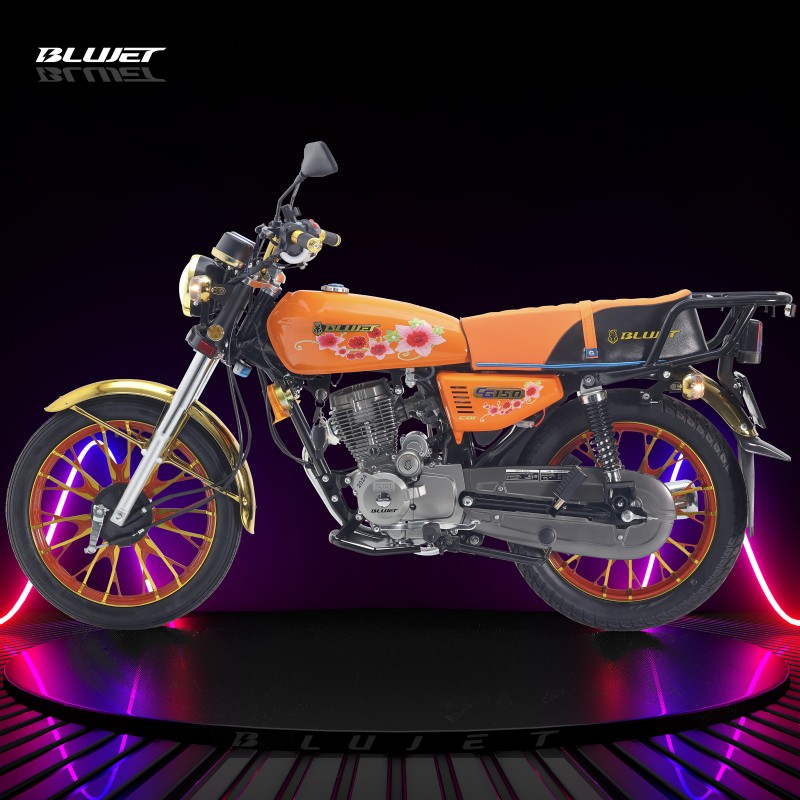

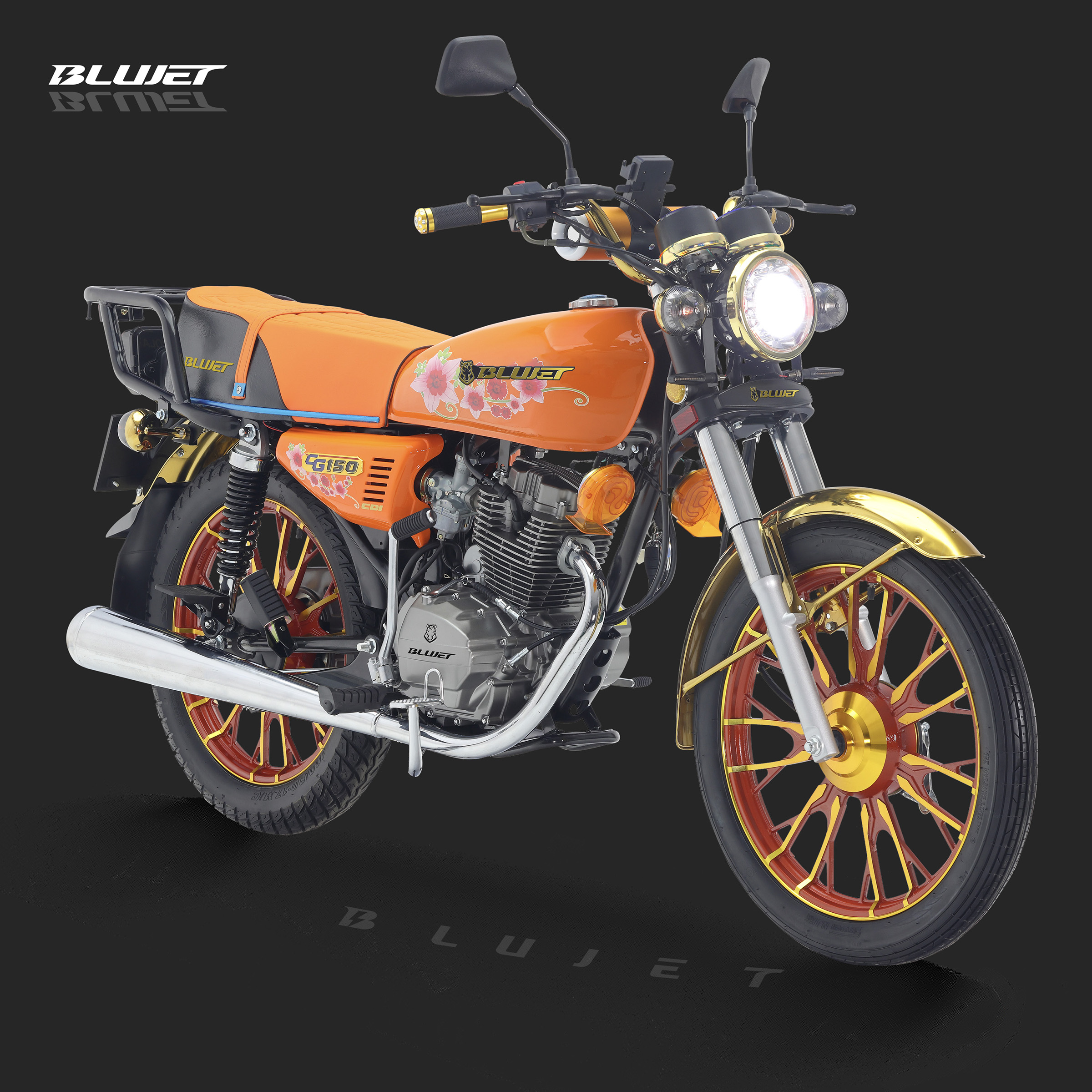

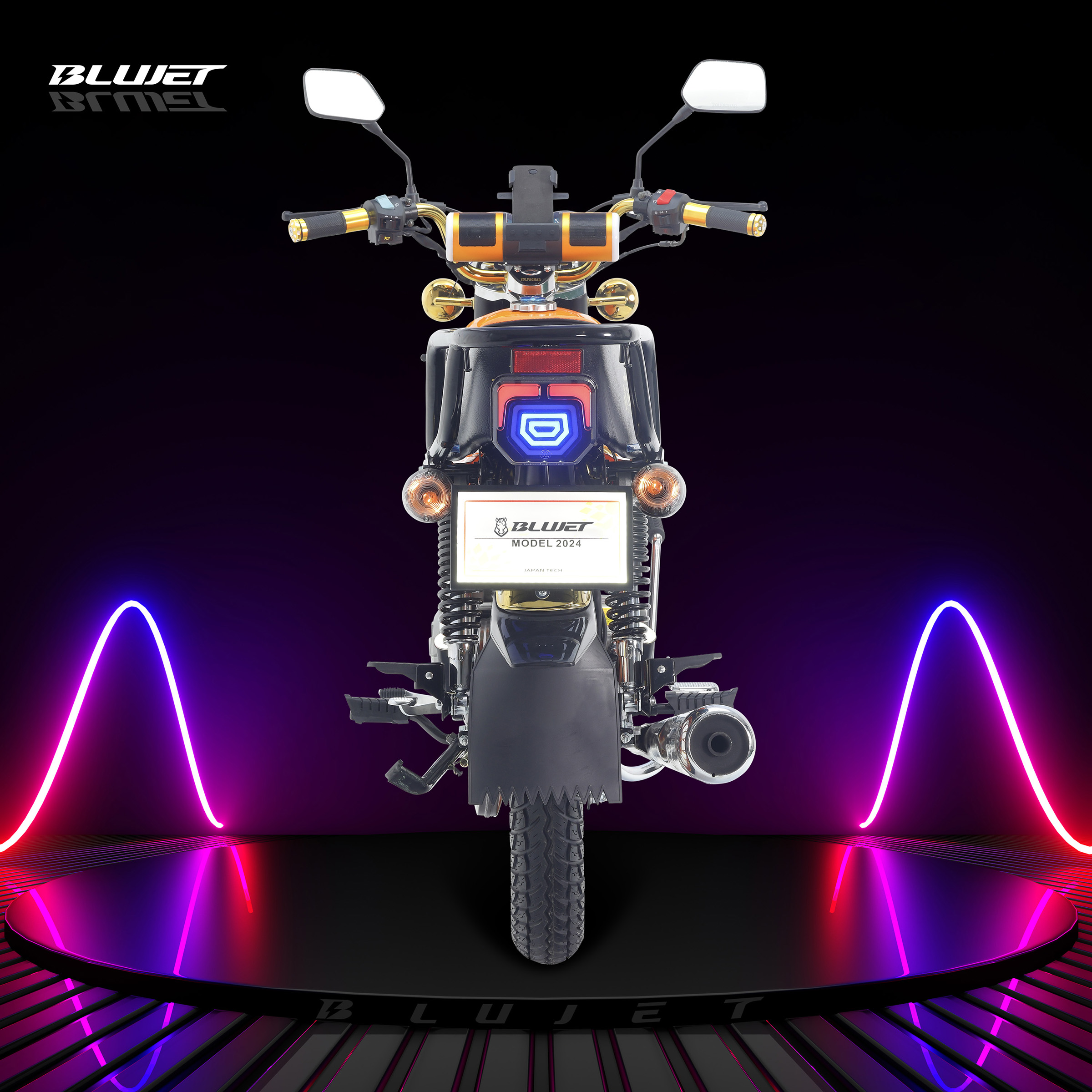

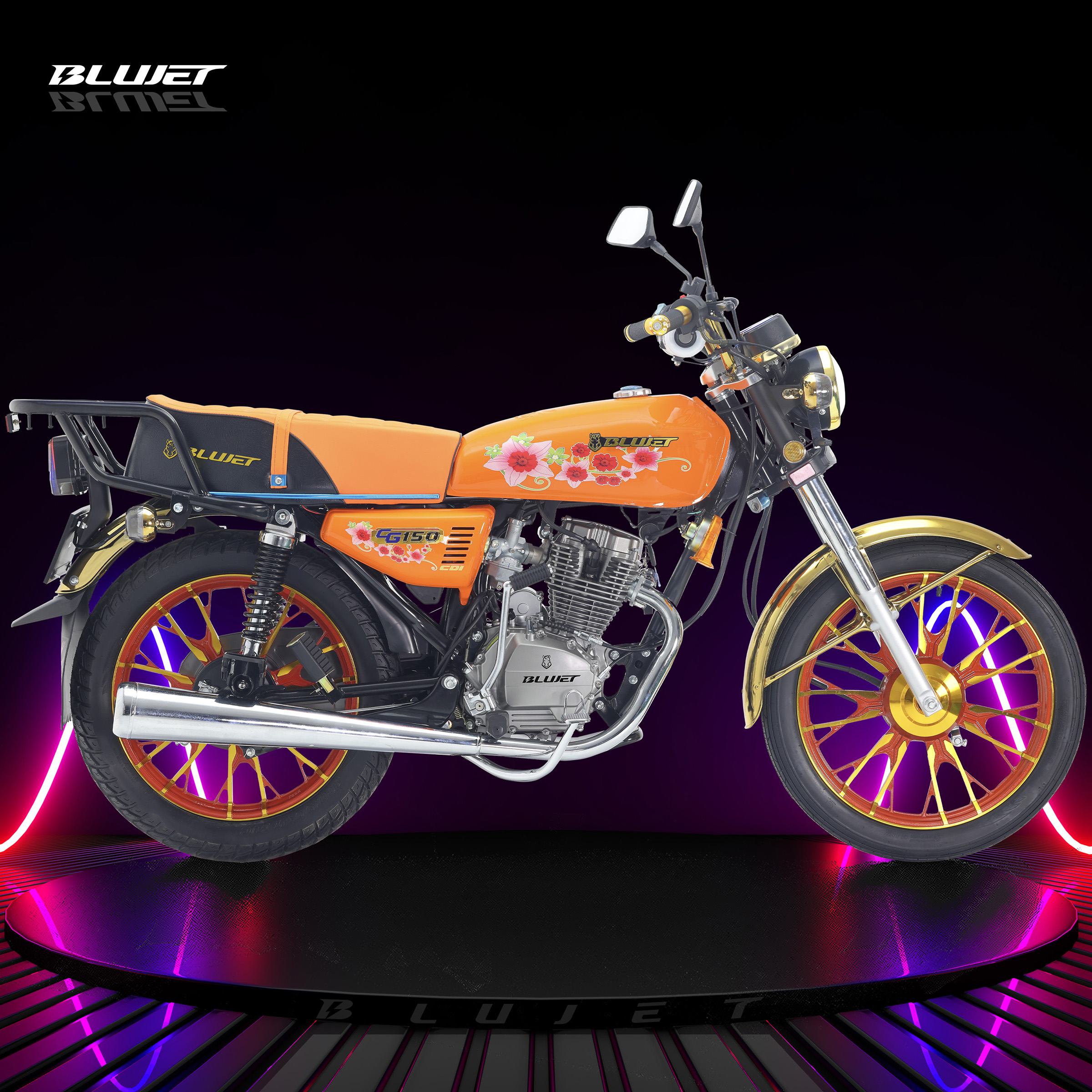

CG150 CG125 Afghanistan golden

mp3, LED lights, golden parts, new design

$430.00 Price drop reminder
  • Brand: Symcot
  • Product Code: CG150 Afghanistan
  • Availability: 1000

Total $430.00
Dimension.(L×W×H)(mm) 2015×945×1110
Wheel base(mm) 1290
Ground (mm) 200
Seat height(mm) 780
Turning angle 48°
Min turning radius(mm) 2040
Front/rear sprocket teeth 15/38
Gearshift 5-forward
Fuel tank(L) 8L
 Fuel Type Gasoline
Max. Load Capacity(kg) 150
Dead Weight(kg) 109
Displacement/Power(ml/kw): 150cc
Eco fuel consumption(L/100km) 2.2L
Brake Mode Front Wheel Drum brake
Rear Wheel Drum brake
  Front Wheel Manual
Brake Operation Mode Rear Wheel kick
Wheel Rim Type Front aluminum wheel:        1.60×18
Rear aluminum wheel:        1.85×18
Tire type With tube
Front tire 2.75-18
Rear tire 3.00-18
Head light 12V  35W/35W
Winker 12V  10W
Batterymm Jelly battery 12N6.5AH    150×60×130
Engine type 1-Cylinder, 4-stroke, air-cool, OHC
Engine Model FXR162FMJ-B
Start Electric+kick
Ignition CDI
Bore×Distance 62×49.5
Displacement(ml) 144.6
Compression rate 8.6:1
Magneto 12V 8head full phase
Oil capacity(ml) 1100
Spark plug D8TC
Spark clearance(mm) 0.6~0.7
Valve clearance(mm) 0.04~0.06
Lubriation Press+splash
Carburetor PZ27
Transmission Constant mesh
Clutch type manual, wet, multi-disc
Initial trans rate 3.333
Gearshift rates 1st: 2.769 ,2nd: 1.882,third; 1.400,forth: 1.130,fifth: 0.960
Final trans Chain
Rotation direction Facing shaft, unclock wise
Size(mm) 358×324×446
N.W.(kg) 31
Rated power 8.5KW(8500r/min±5%)
Max power 9.6KW(9500r/min±5%)
Max torque 9.5N·m(7500r/min)
Load Quantity 40HQ 240 sets in CKD
Load Quantity 40HQ 126 sets in SKD(double package)
