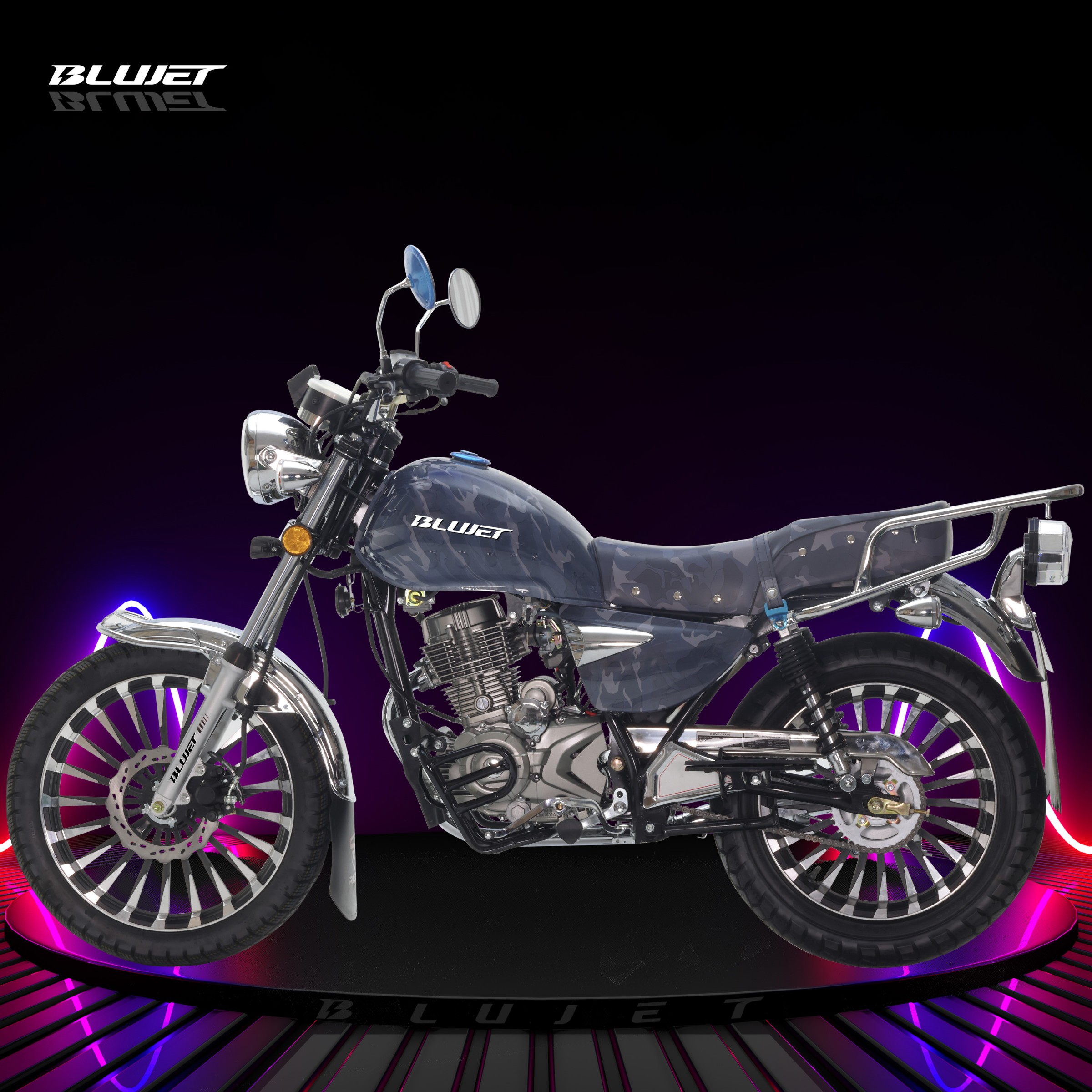

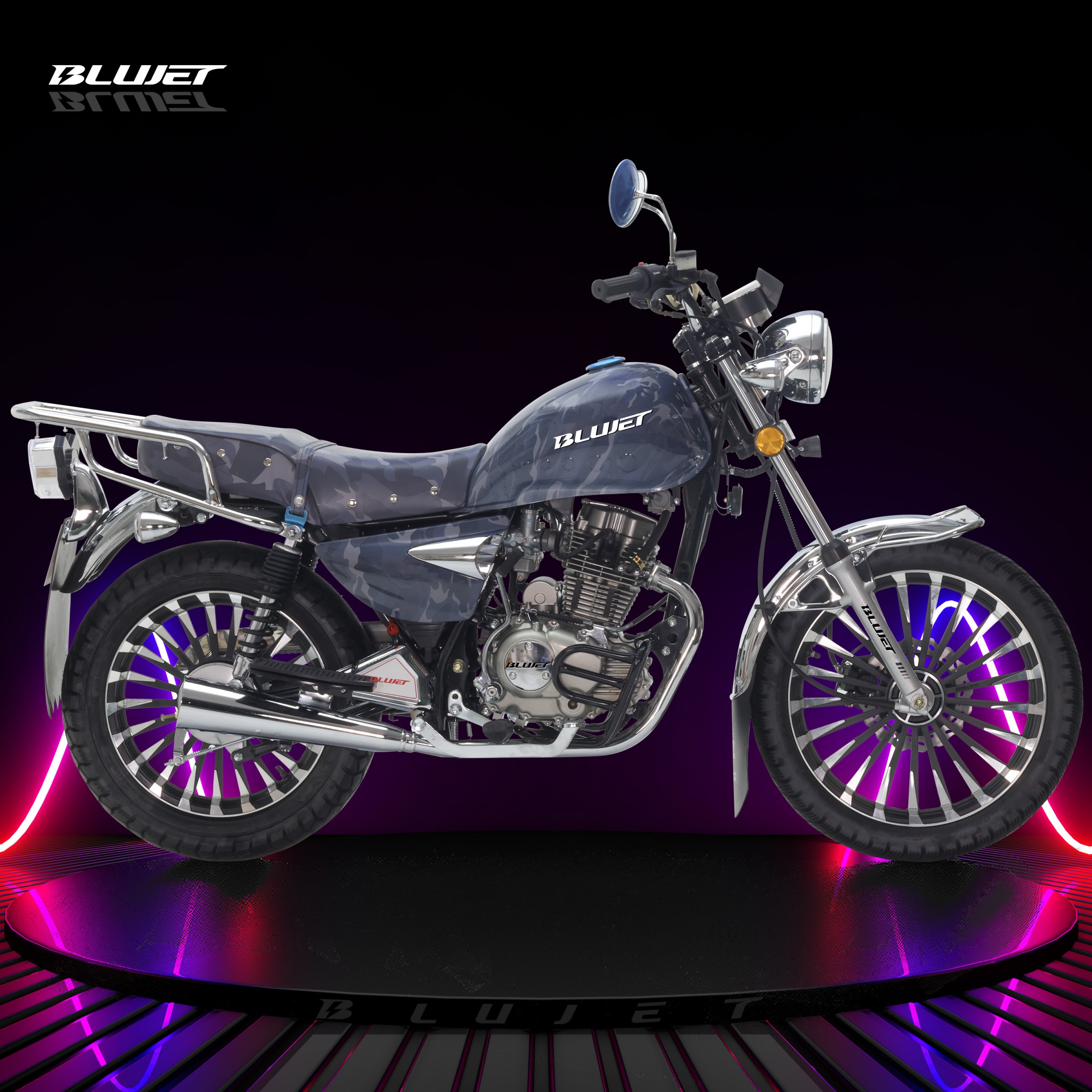

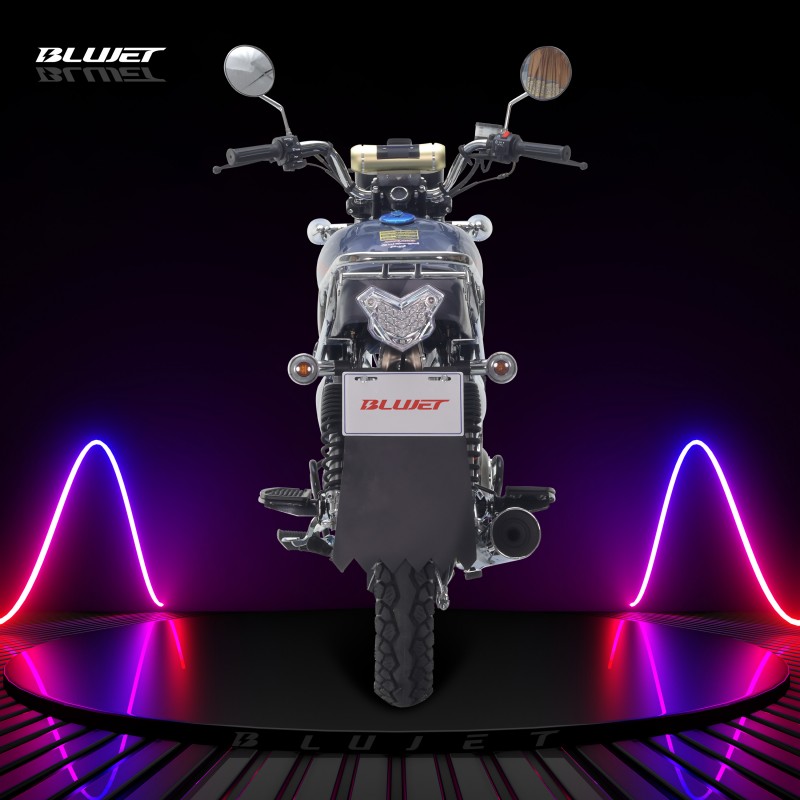

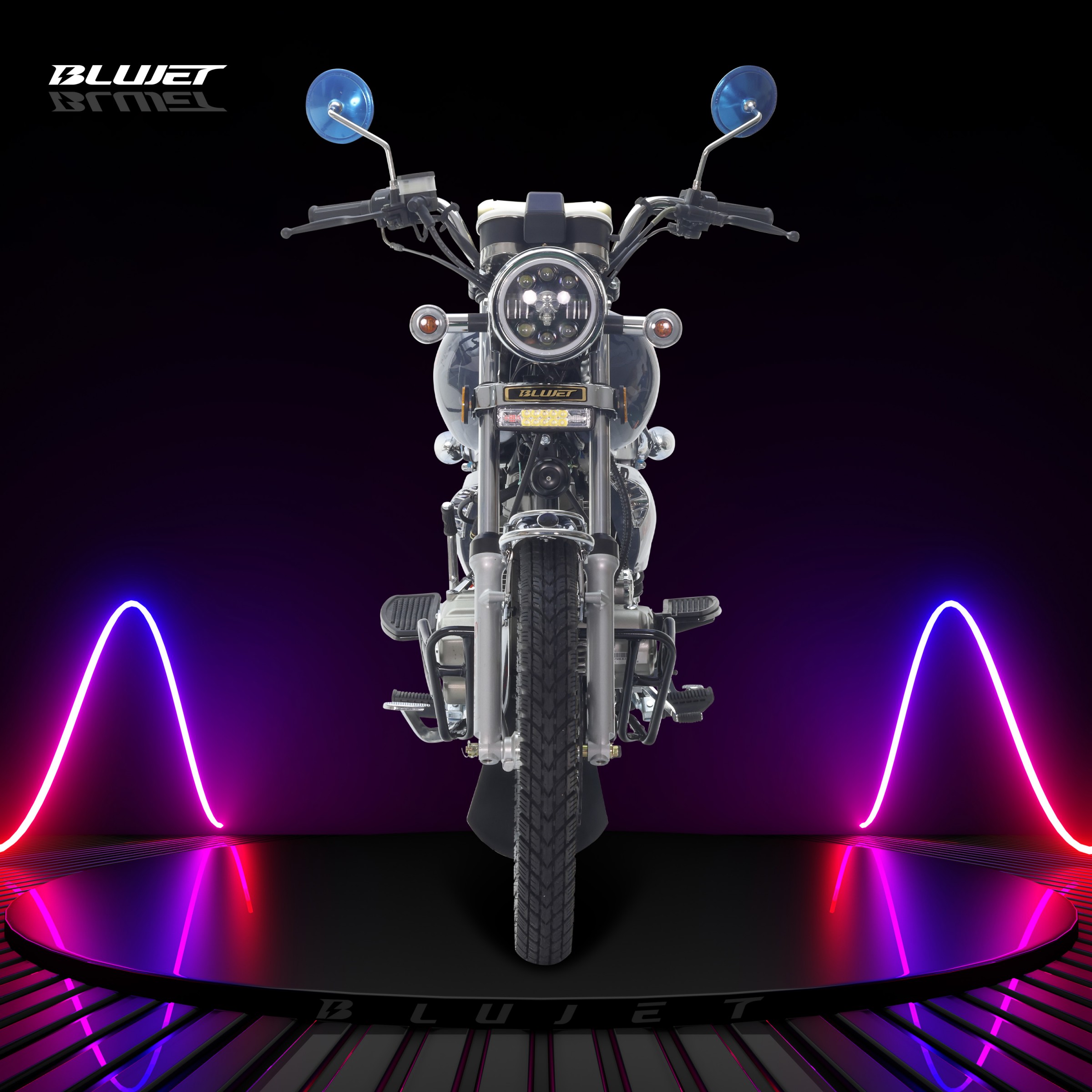

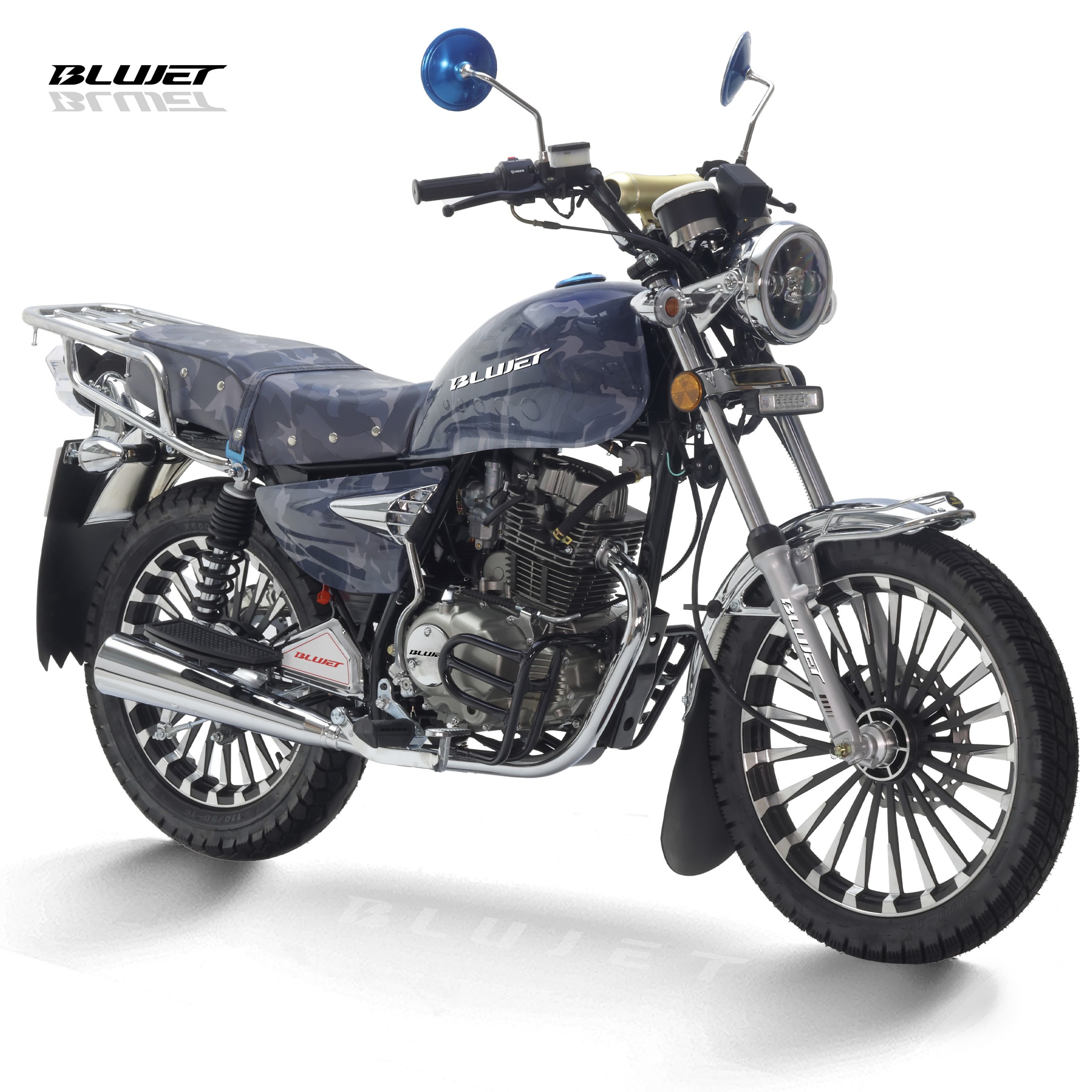

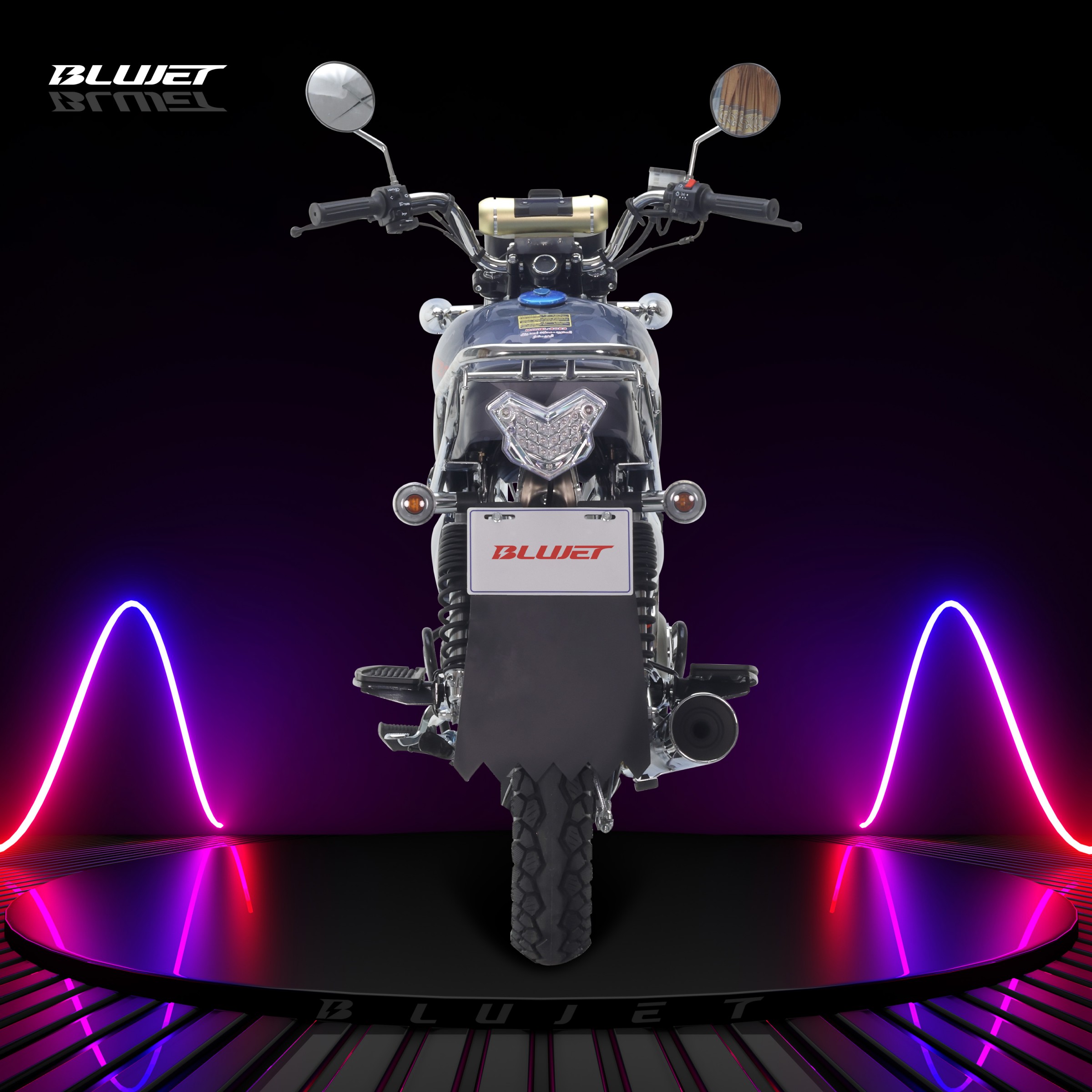

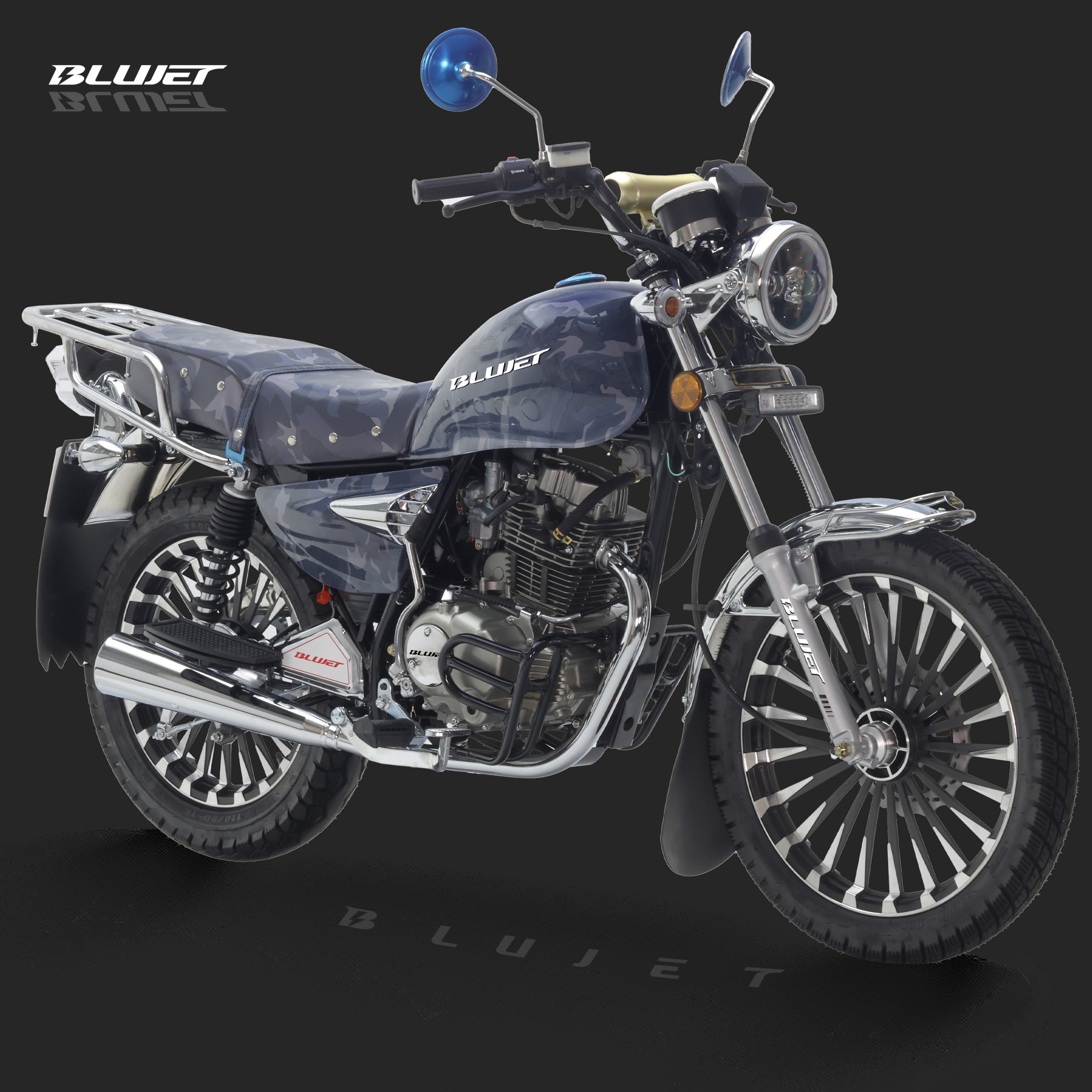

GN250 AMD

$600.00 Price drop reminder
  • Product Code: GN250 AMD
  • Availability: 1000
  • Promotion:
    Full reduction Up to $100.00 and up to 1 quantity discount $20.00 and give gifts

Total $600.00
 Model GN250
Dimension.(L×W×H)(mm) 1945×815×1110
Wheel base(mm) 1280
Min ground clearance (mm) 175
Seat height(mm) 760
Turning angle 48°
Min turning radius(mm) 2120
Front/rear sprocket teeth 17/42
Gearshift 5-forward
Fuel tank(L) 14L
 Fuel Type Gasoline
Max. Load Capacity(kg) 150
Dead Weight(kg) 115
Displacement/Power(ml/kw): 229cc
Eco fuel consumption(L/100km) 2.1
Brake Mode Front Wheel:Disc brake
Rear Wheel:Drum brake
Wheel Rim Type Front aluminum wheel:       1.60×18
Rear aluminum wheel:          2.10×16
Tire type With tube
Front tire 2.75-18
Rear tire 110/90-16
Head light 12V  35W/35W
Winker 12V  10W
Batterymm Maintenance Free: 12V7AH    114×71×106

Engine type 1-Cylinder, 4-stroke, air-cool, with balancer
Engine Model ZS167FMM-B, CG engine
Start Electric+kick
Ignition CDI
Bore×Distance 67×65
Displacement(ml) 229.5
Compression rate 8.71
Magneto 12V 8head full phase
Oil capacity(ml) 1100
Spark plug D8EANGK
Spark clearance(mm) 0.6~0.7
Valve clearance(mm) 0.04~0.06
Lubriation press+splash
Carburetor PZ30
Transmission Constant mesh
Clutch type Manual, multi-disc
Initial trans rate 3.333
Gearshift rates 1st: 2.769 2nd: 1.882 3rd: 1.400 4th 1.130fifth: 0.960
Final trans Chain
Rotation direction Facing shaft, unclock wise
Size(mm) 470×410×450
N.W.(kg) 31
Max power 10.5KW(7000r/min±5%)
Max torque 16.5N·m(5500r/min)

Load Quantity 40HQ: 126 units
Load Quantity 40HQ: 210 sets
