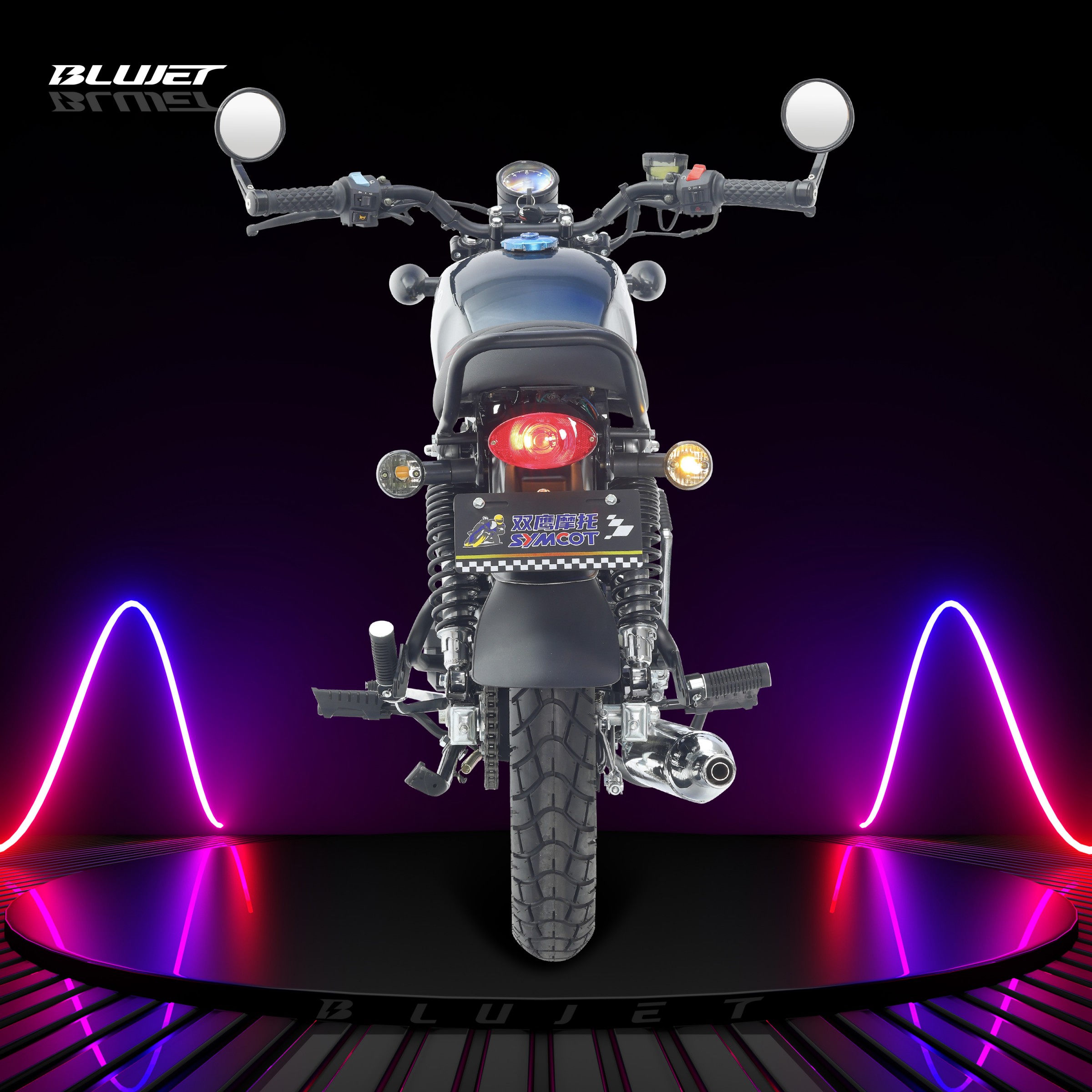

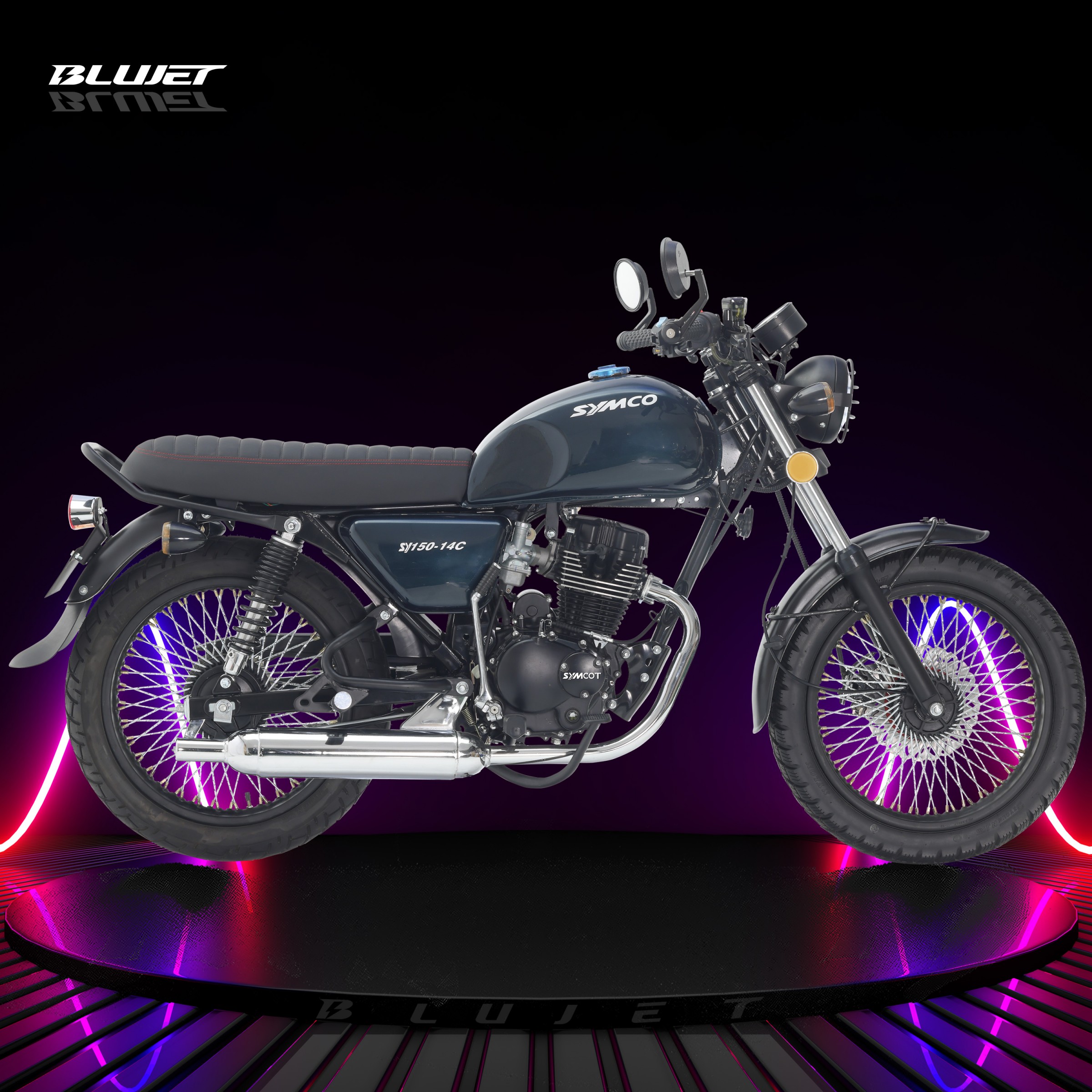

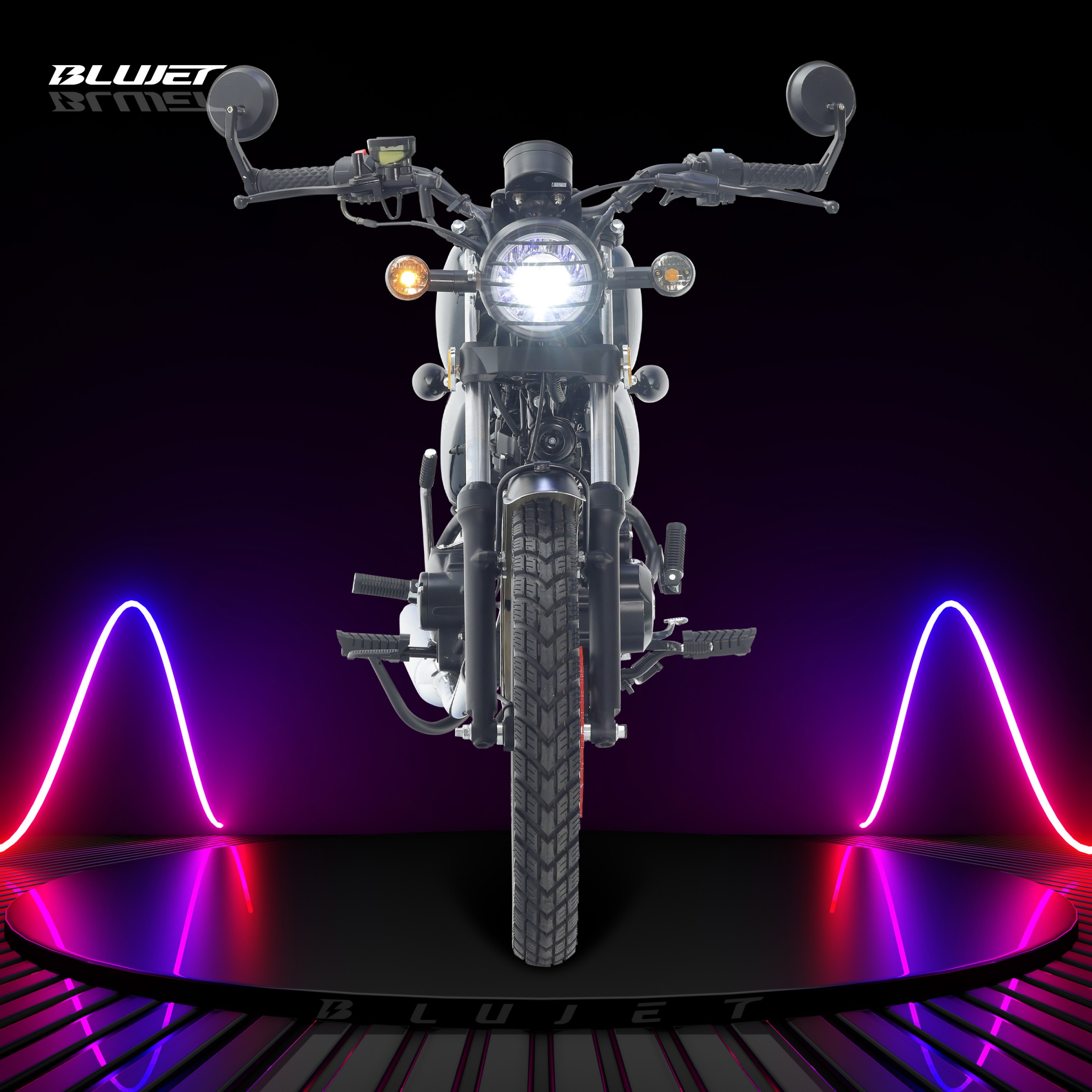

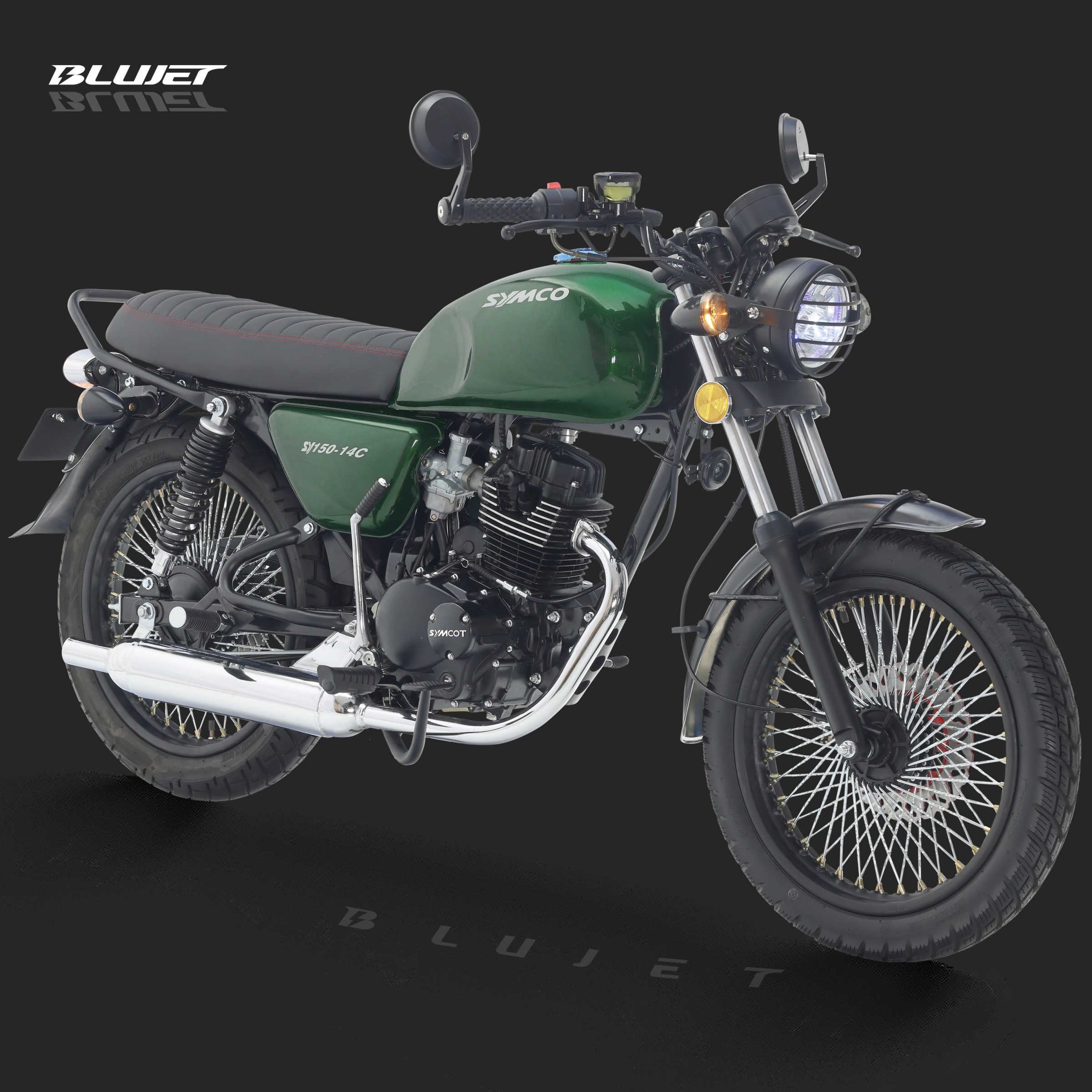

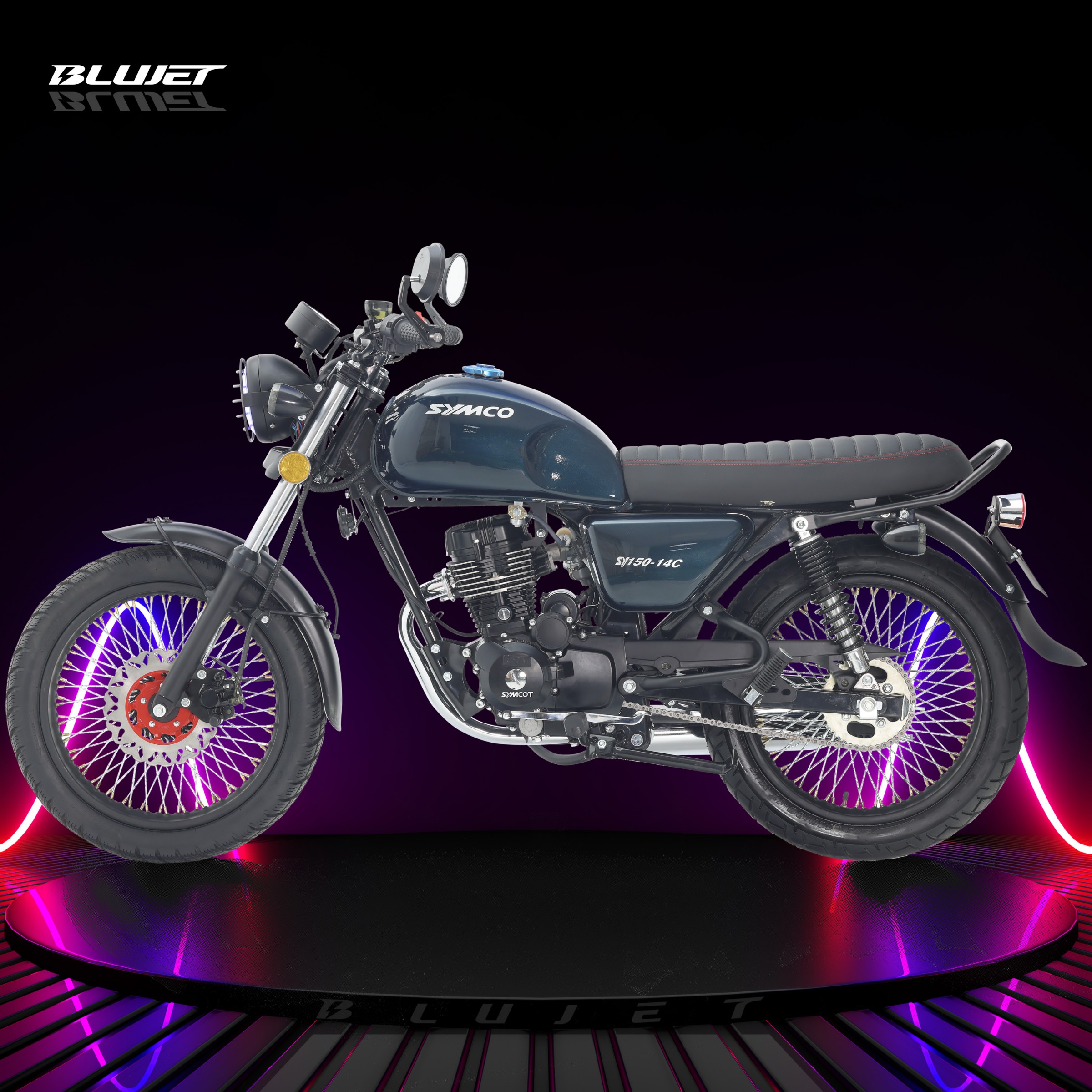

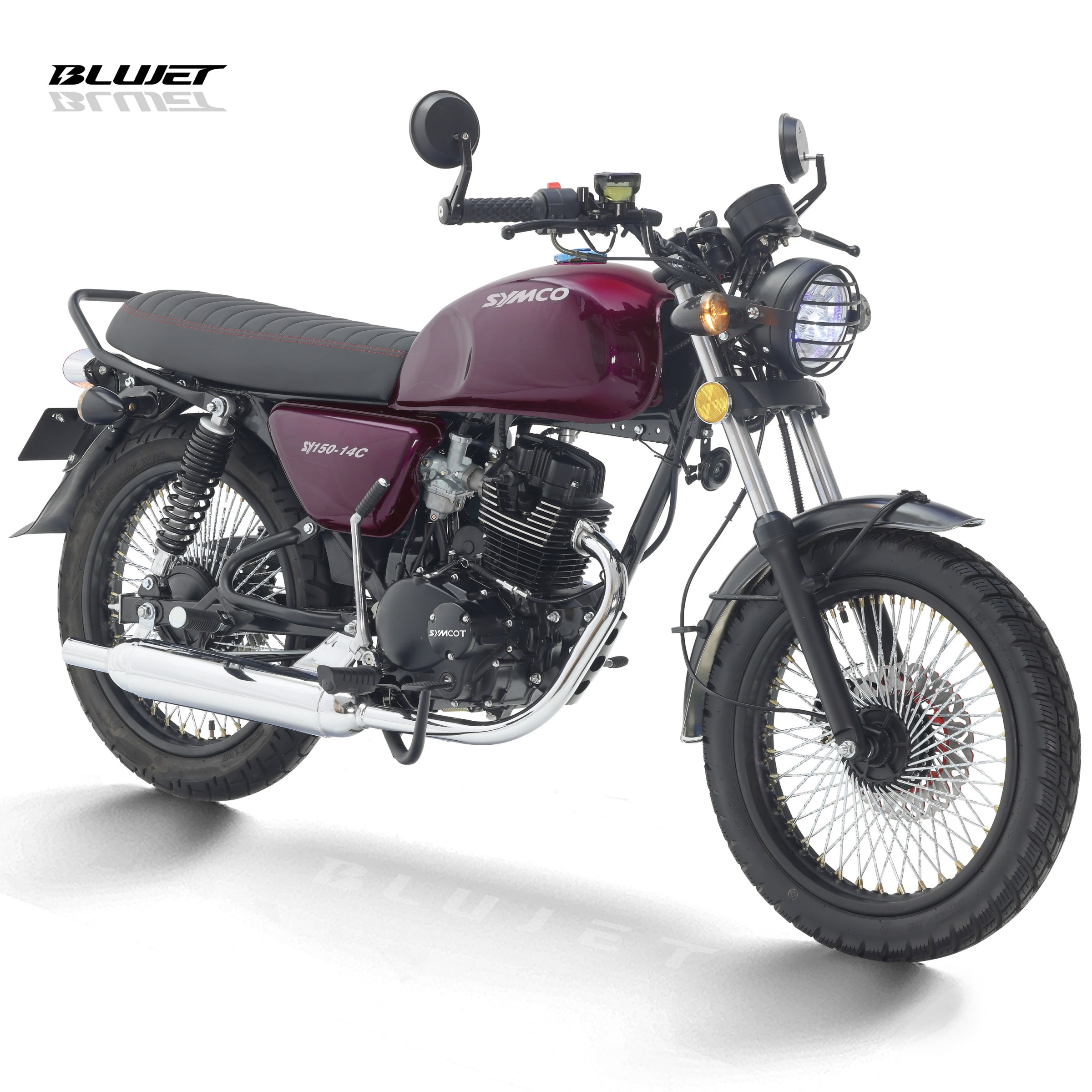

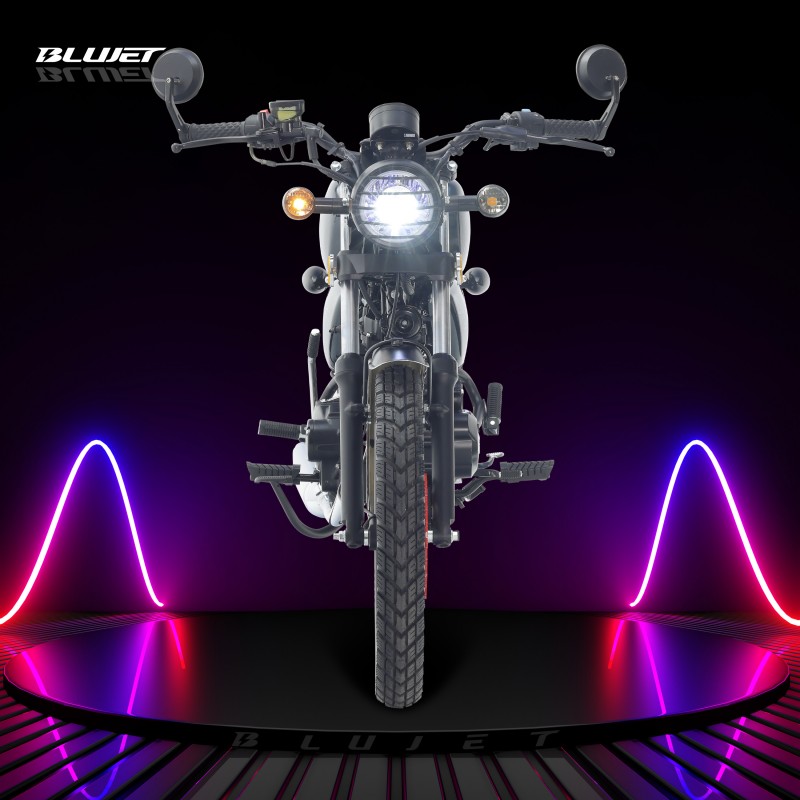

Vintage 200

200cc vintage style motorcycle, spoke rim, high quality engine

$500.00 Price drop reminder
  • Product Code: Vintage 200
  • Availability: 1000

Total $500.00
This product has a minimum quantity of 34
 Model Vintage 200
Dimension.(L×W×H)(mm) 1900×830×1060
Wheel base(mm) 1290
Min ground clearance (mm) 200
Seat height(mm) 800
Turning angle 48°
Min turning radius(mm) 2120
Front/rear sprocket teeth 15/42
Gearshift 5-forward
Fuel tank(L) 10
 Fuel Type Gasoline
Max. Load Capacity(kg) 150
Dead Weight(kg) 132
Displacement/Power(ml/kw): 196
Eco fuel consumption(L/100km) 2.2
Brake Mode Front Wheel:Disc brake
Rear Wheel:Drum brake
  Front Wheel
Brake Operation Mode Rear Wheel
Wheel Rim Type Front spoke wheel:       1.85×17
Rear spoke  wheel:     2.5×17
Tire type With tube
Front tire 3.00-17
Rear tire 110/80-17
Head light 12V  35W/35W
Winker 12V  10W
Batterymm 12N7-4A      114×71×106
Engine type 1-Cylinder, 4-stroke, air-cool, with balancer
Engine Model 163FML
Start Electric+kick
Ignition CDI
Bore×Distance 63.5*62.2
Displacement(ml) 197
Compression rate 9.21
Magneto 12V 8head full phase
Oil capacity(ml) 1100
Spark plug D8EANGK
Spark clearance(mm) 0.6~0.7
Valve clearance(mm) 0.04~0.06
Lubriation press+splash
Carburetor PZ30, KEIHIN
Transmission Constant mesh
Clutch type Manual, multi-disc
Initial trans rate 3.333
Gearshift rates 1st: 2.769 2nd: 1.882 3rd: 1.400 4th 1.130fifth: 0.960
Final trans Chain
Rotation direction Facing shaft, unclock wise
Size(mm) 388×324×446
N.W.(kg) 33
Rated power 10.5KW(7500r/min±5%)
Max power 12.8KW(8000r/min±5%)
Max torque 16.5N·m(5500r/min)
Load Quantity SKD 40HQ:105 units
Load Quantity SKD DOUBLE PACKAGE 40HQ:126 units
