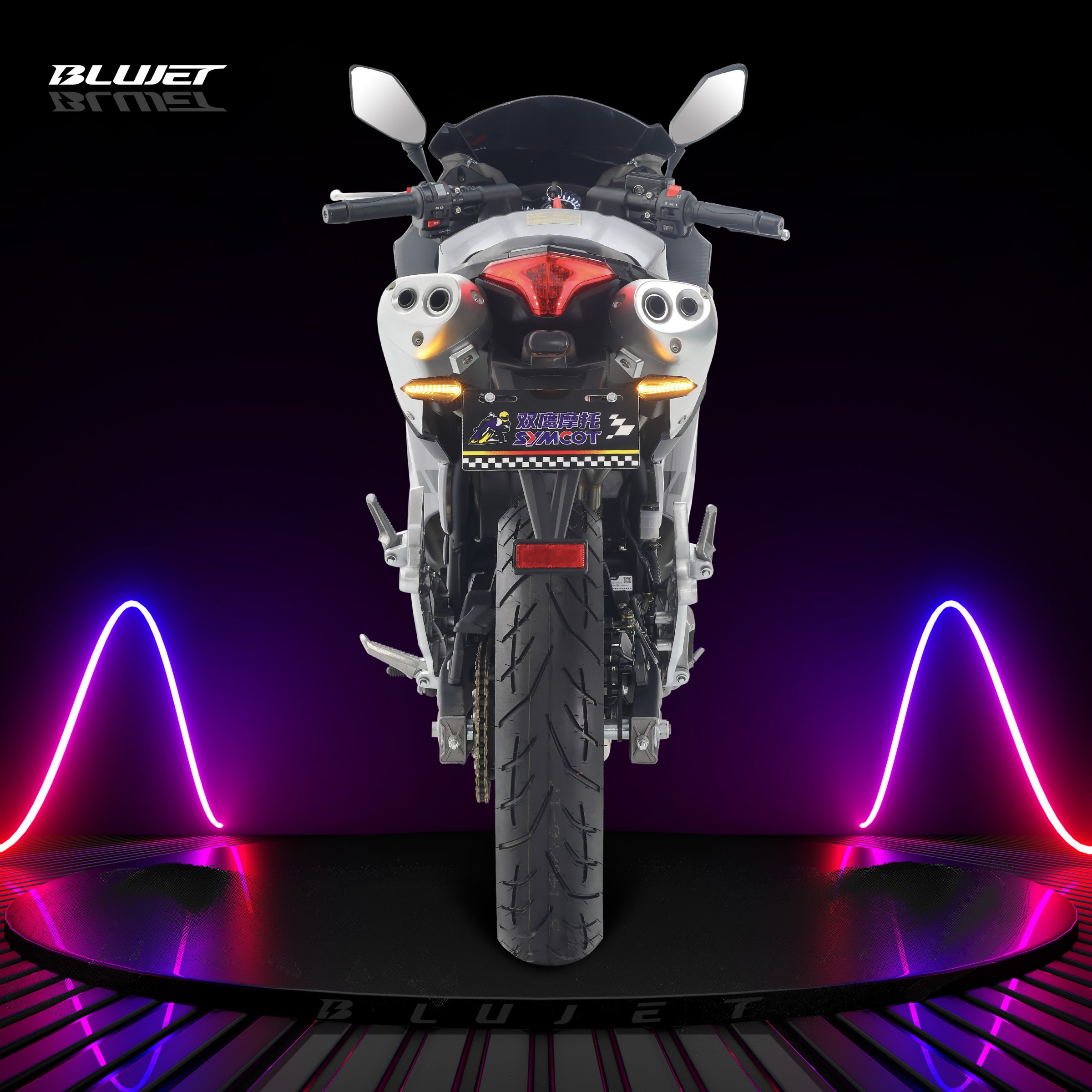

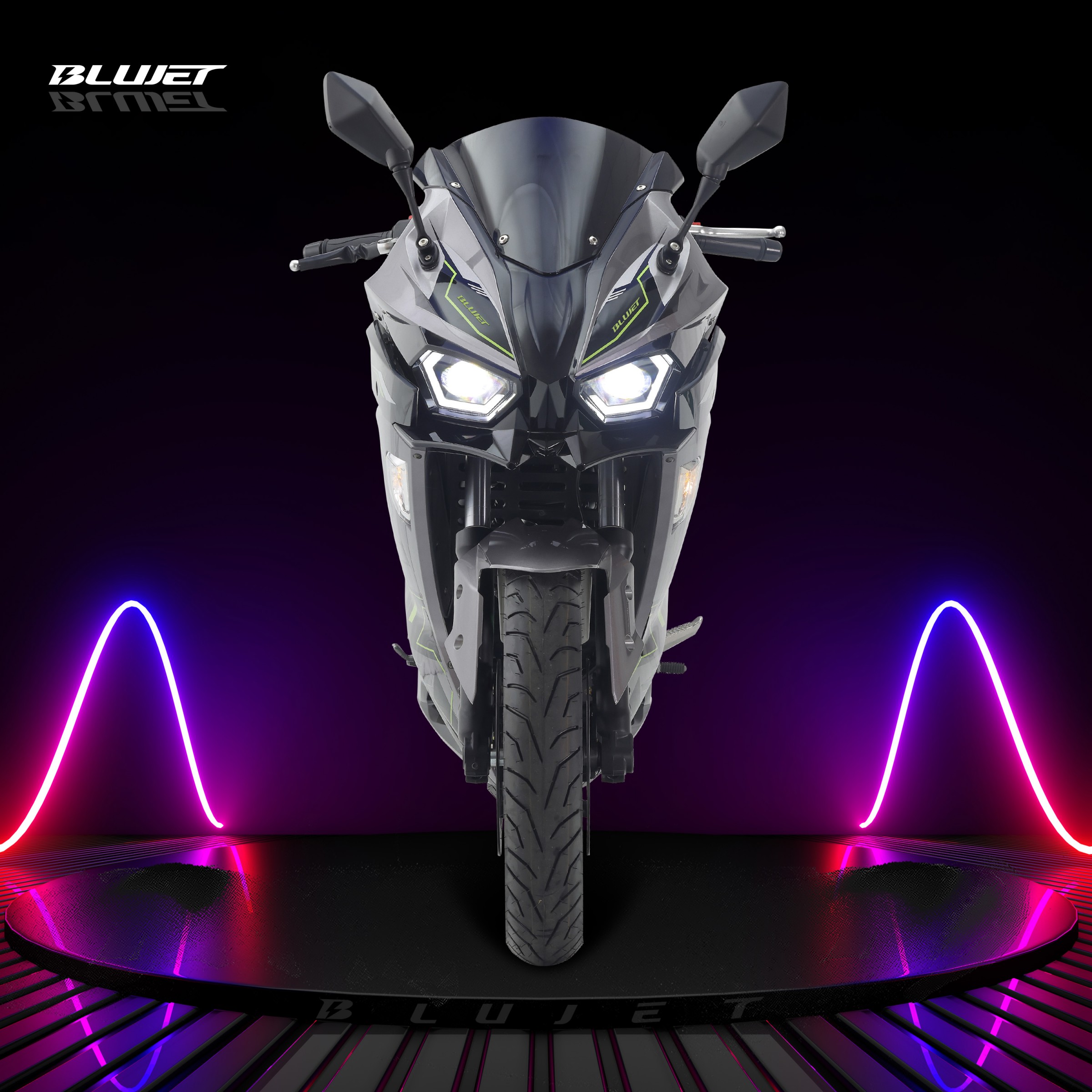

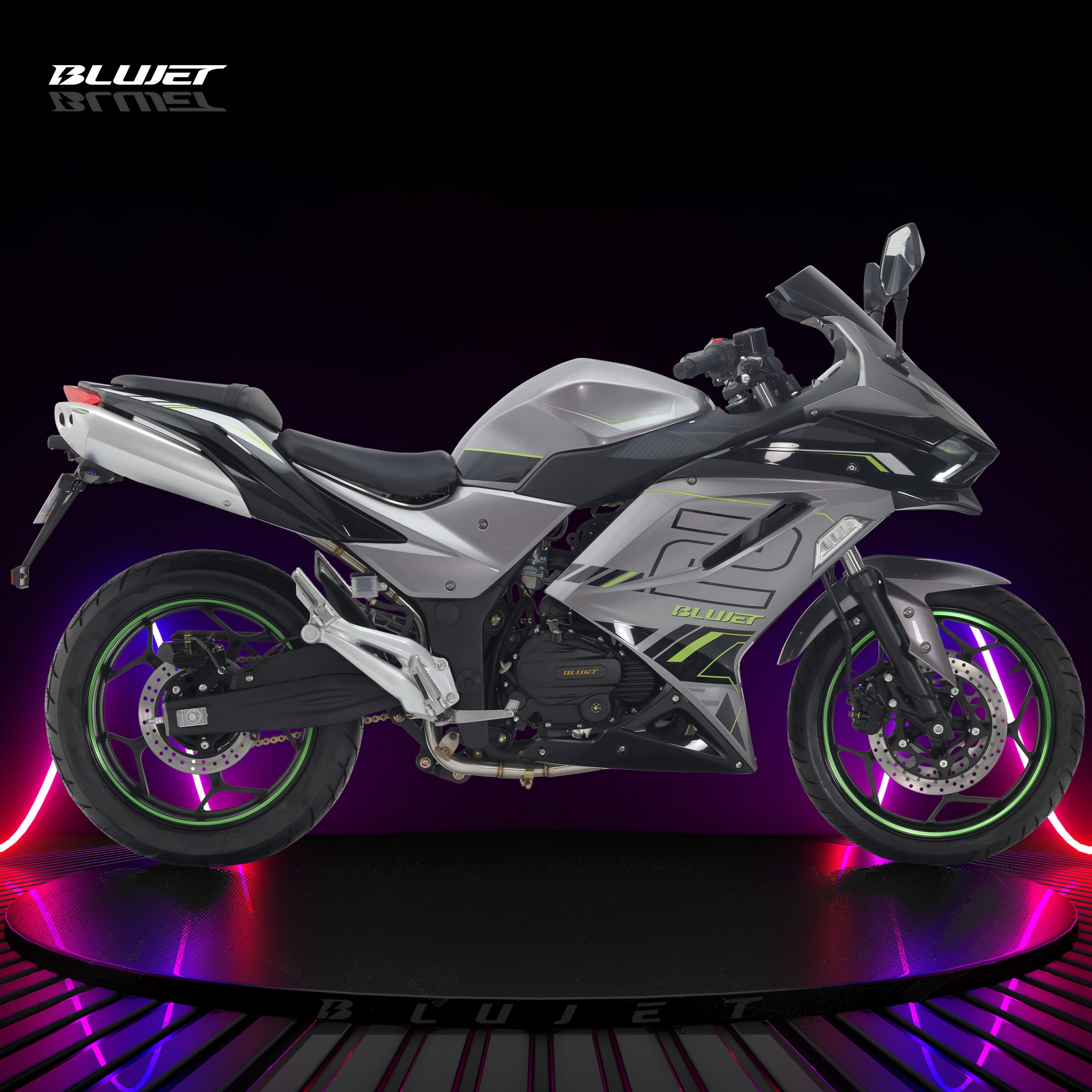

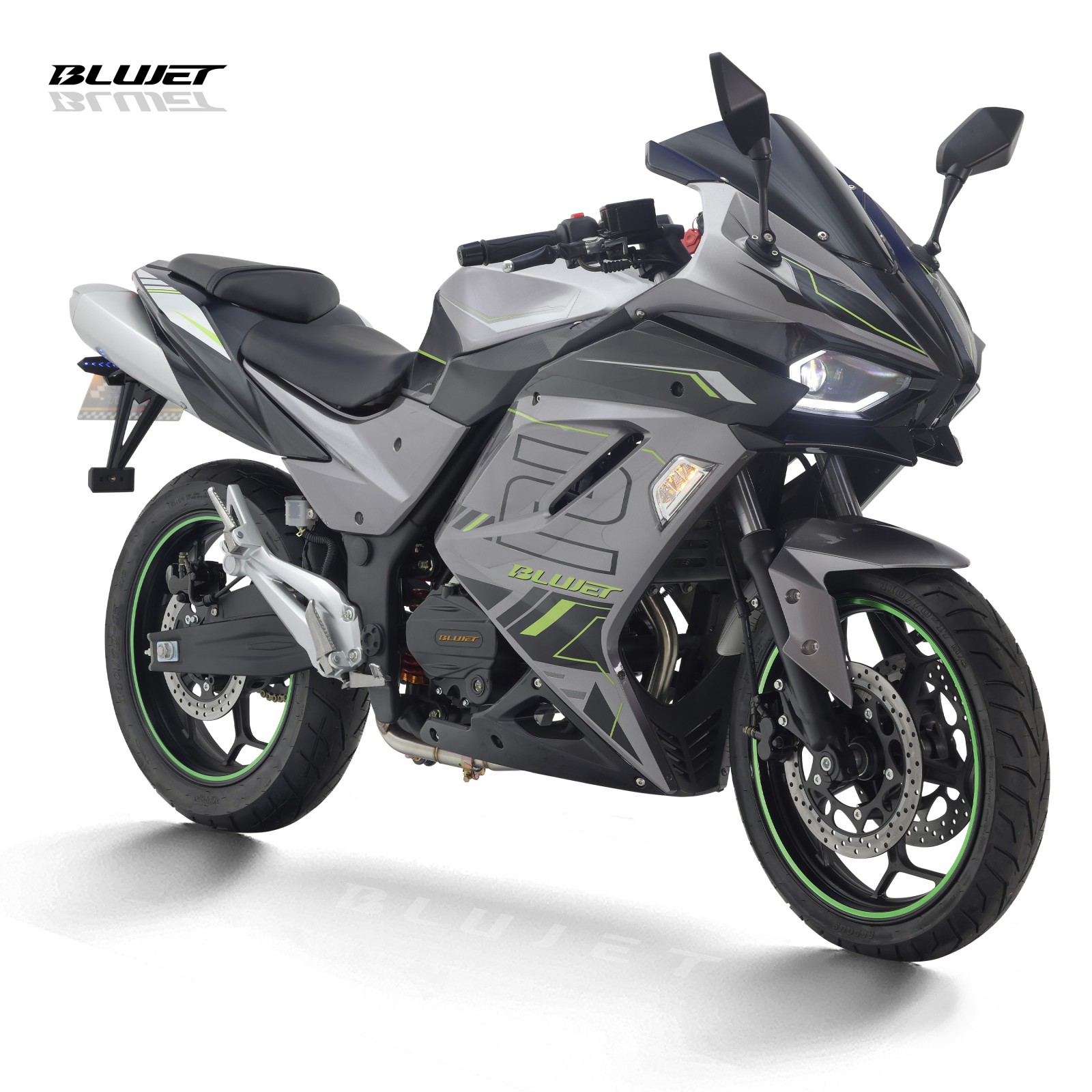

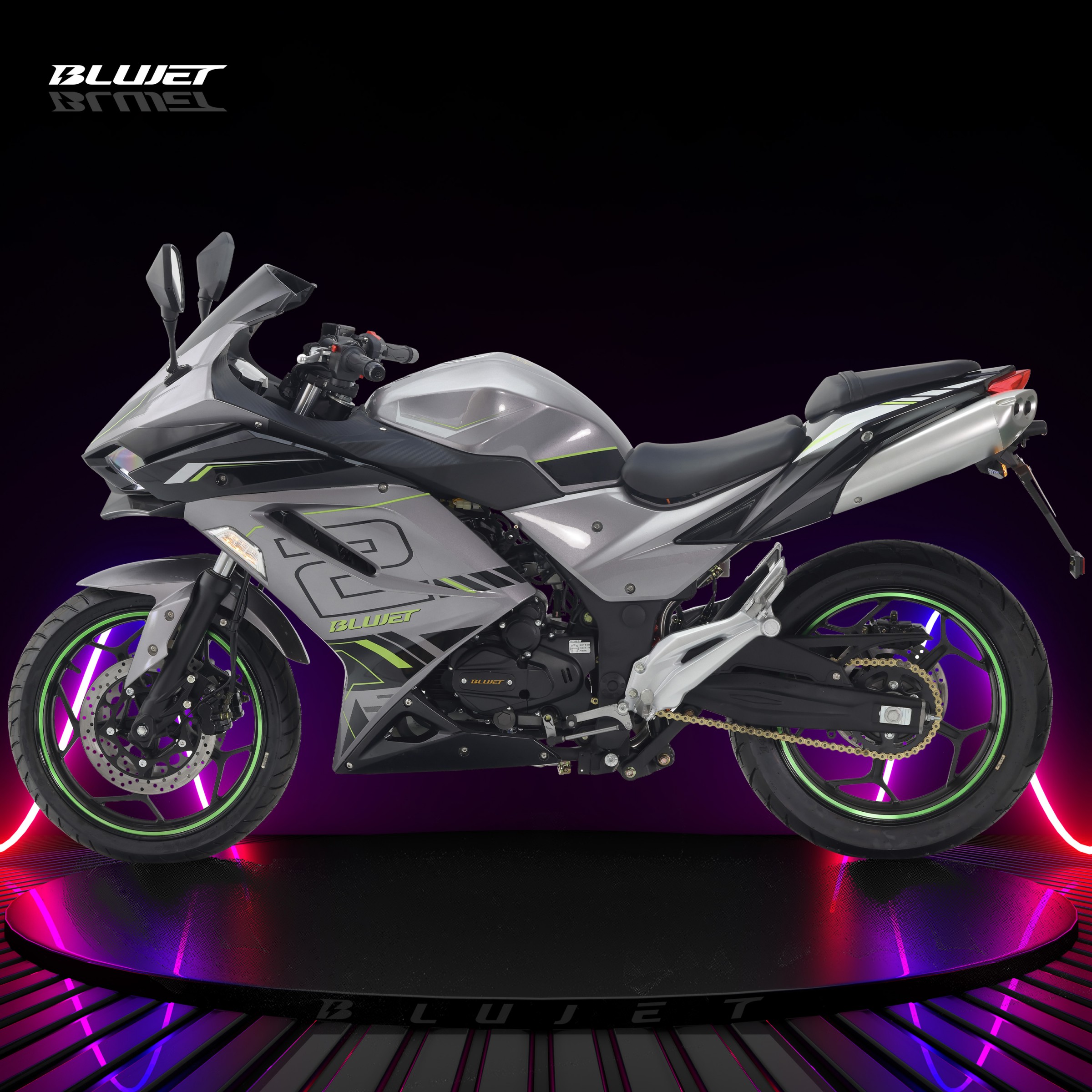

H2 2-muffler 250

$900.00 Price drop reminder
  • Product Code: H2 2-muffler 250
  • Availability: 1000

Total $900.00
This product has a minimum quantity of 10
Model: H2 2-muffler 250
Dimension.(L×W×H)(mm) 2010×715×1110
Wheel base(mm) 1410
Min ground clearance (mm) 150
Seat height(mm) 780
Turning angle <48°
Min turning radius(mm) 2120
Front/rear sprocket teeth 17/42
Gearshift 5-forward
Fuel tank(L) 17L
 Fuel Type Gasoline
Max. Load Capacity(kg) 150
Dead Weight(kg) 132
Displacement/Power(ml/kw): 250㏄
Eco fuel consumption(L/100km) 2.5
Brake Mode: Front Wheel: Disc brake
  Rear Wheel: Disc brake
Brake Operation Mode Front Wheel: Hand clip
  Rear Wheel: Kick
Wheel Rim Type Front aluminum wheel:       2.50×17
  Rear aluminum wheel:        3.50×17
Tire type With tube
Front tire 110/70-17
Rear tire 140/70-17
Head light 12V  35W/35W
Winker 12V  10W
Battery(mm) Maintenance Free: 12V7AH    114×71×106
Engine type 1-Cylinder, 4-stroke, air-cool, with balancer
Engine Model ZS167FMM-B, CG engine, 6-gears
Start Electric+kick
Ignition CDI
Bore×Distance 67×65
Displacement(ml) 229.5
Compression rate 8.7:1
Magneto 12V 8head full phase
Oil capacity(ml) 1100
Spark plug D8EA(NGK)
Spark clearance(mm) 0.6~0.7
Valve clearance(mm) 0.04~0.06
Lubriation press+splash
Carburetor PZ30
Transmission Constant mesh
Clutch type Manual, multi-disc
Initial trans rate 3.333
Gearshift rates 1st: 2.769 2nd: 1.882 3rd: 1.400 4th 1.130,fifth: 0.960 6th: 0.87
Final trans Chain
Rotation direction Facing shaft, unclock wise
Size(mm) 470×410×450
N.W.(kg) 31
Max power 12.5KW(7000r/min±5%)
Max torque 16.5N·m(5500r/min)
Load Quantity 40HQ:72 units
