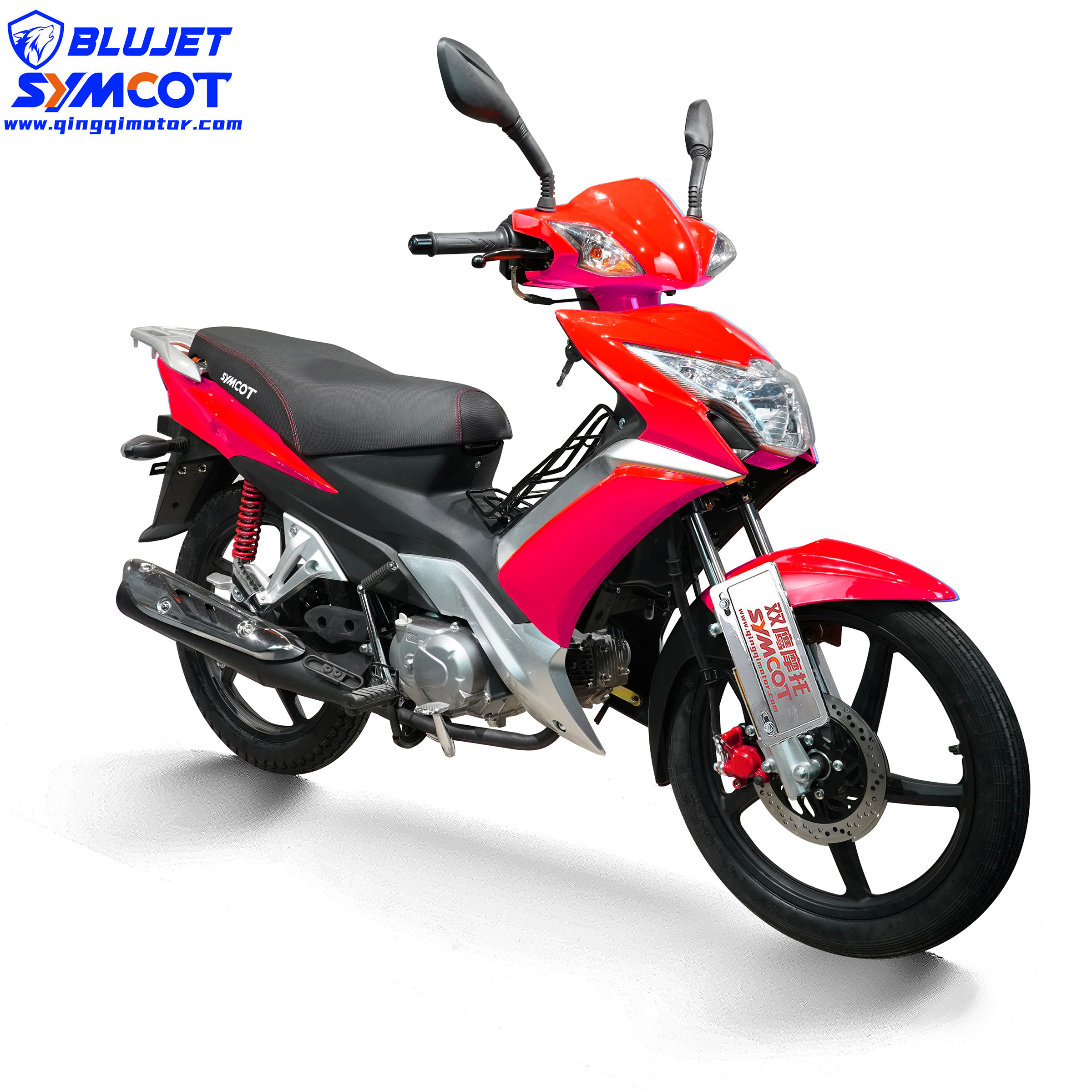

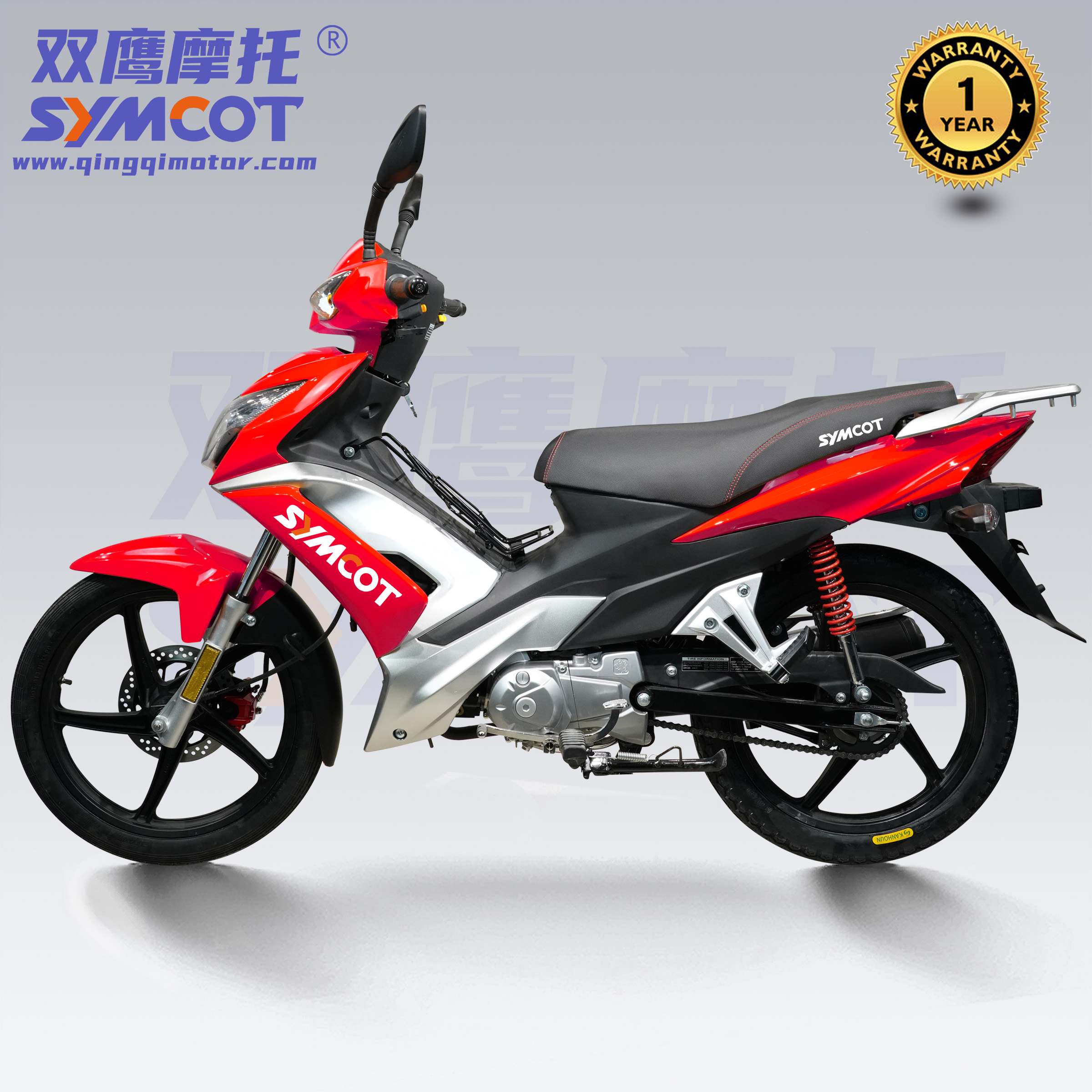

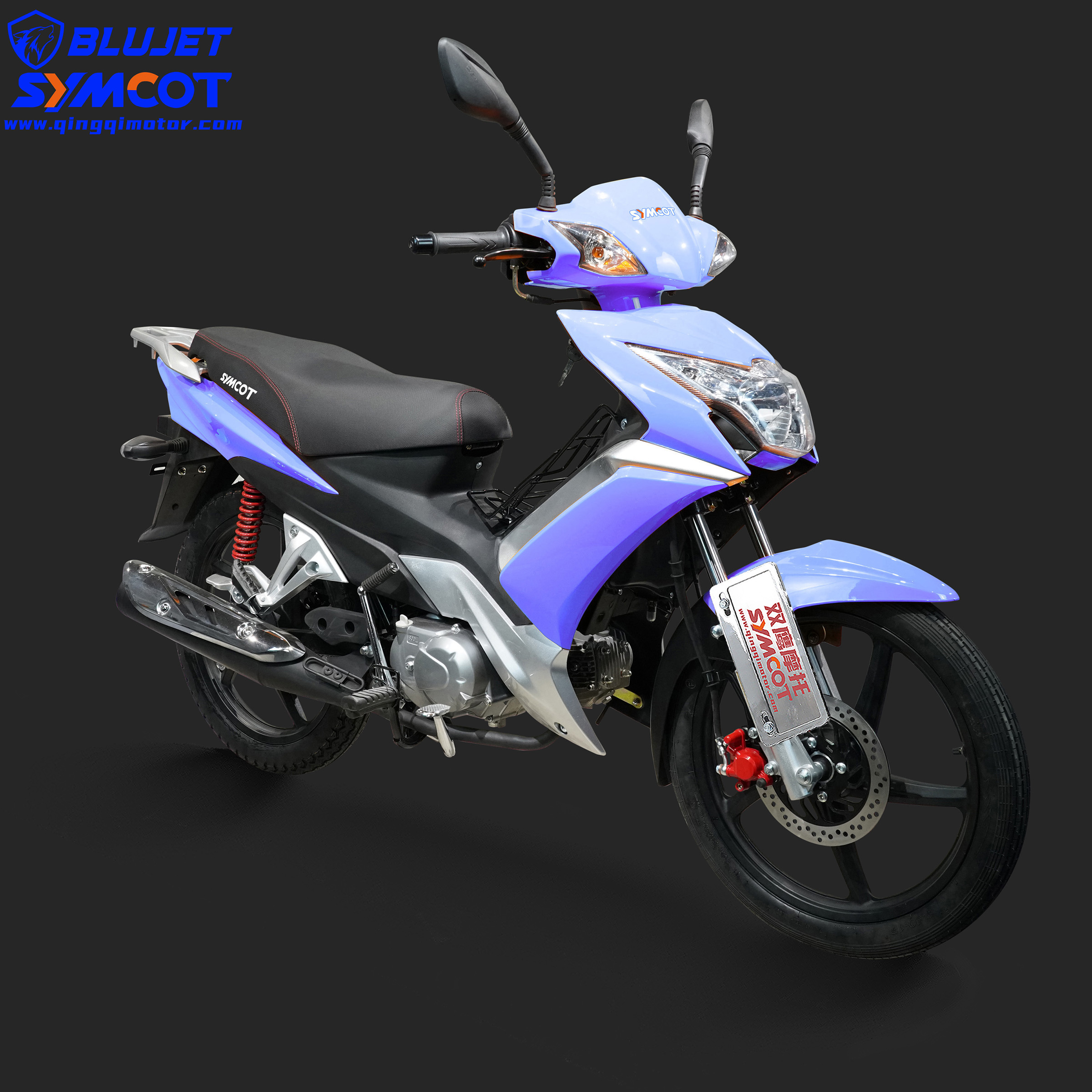

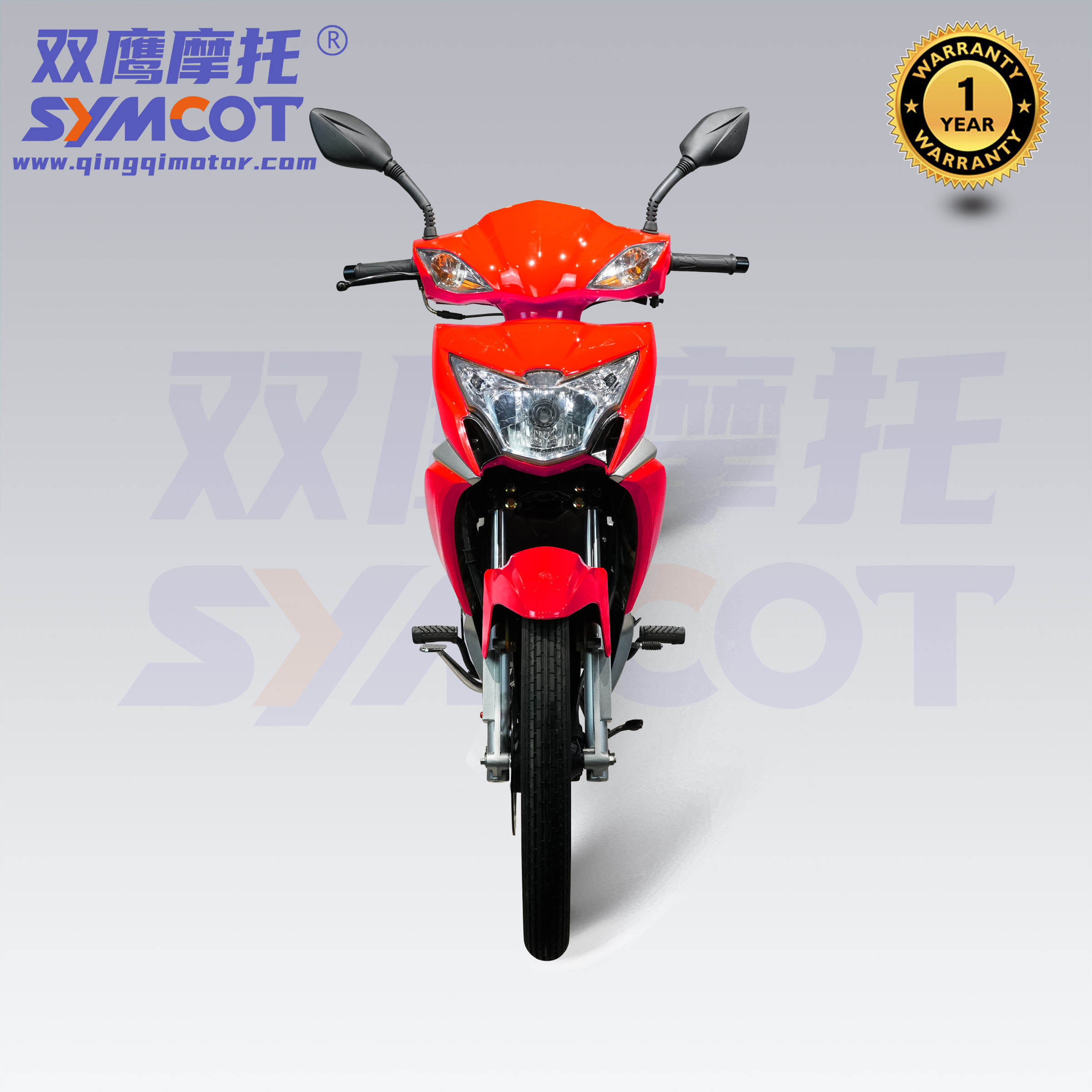

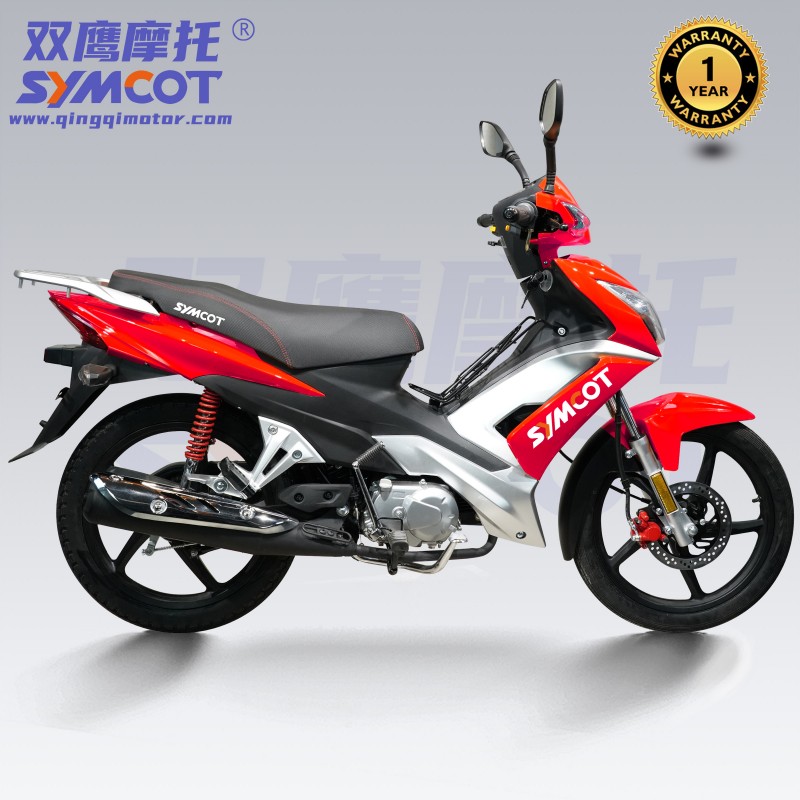

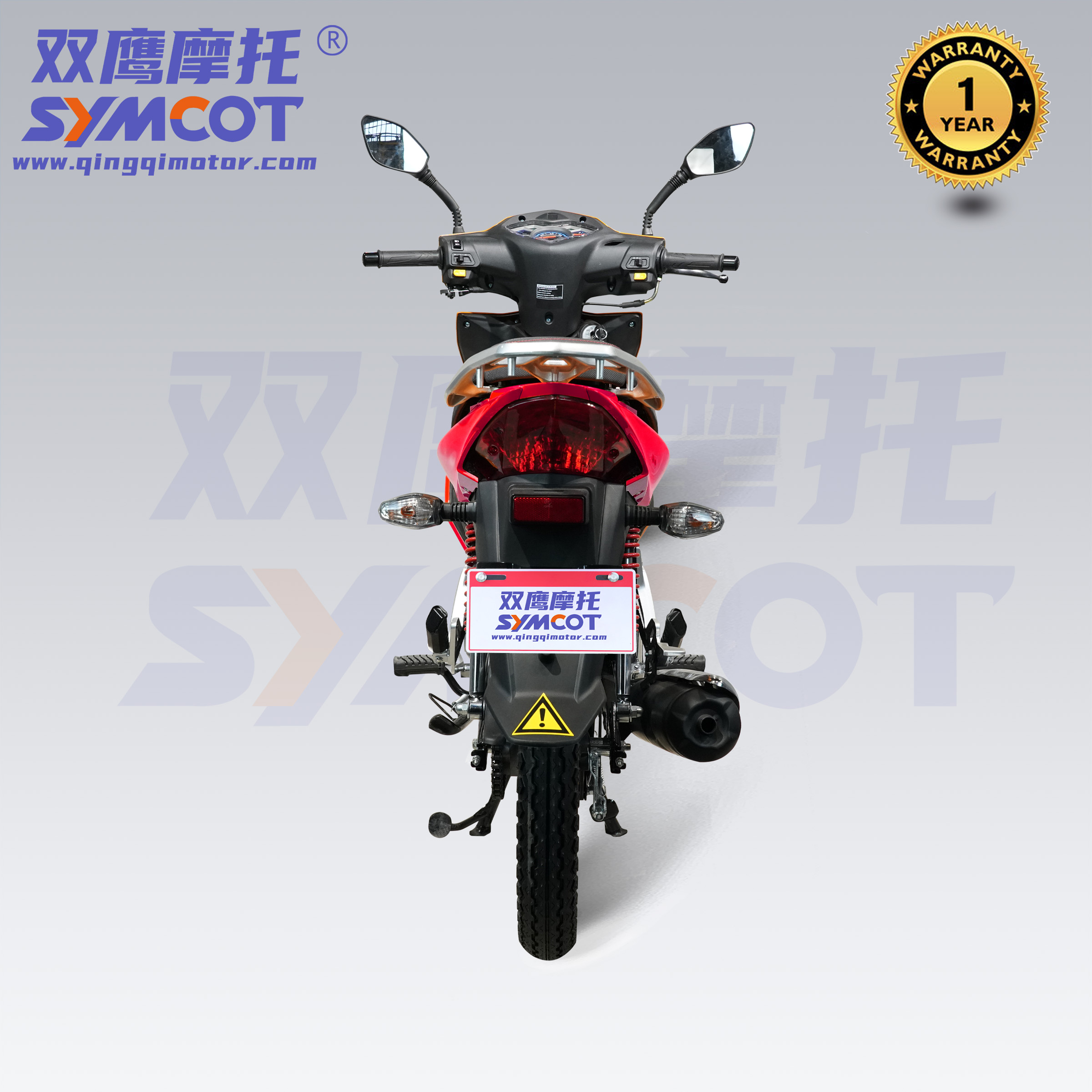

Nexto 110

$500.00 Price drop reminder
  • Product Code: Nexto 110
  • Availability: 1000

Total $500.00
This product has a minimum quantity of 32
 Model Nexto 110
Dimension.(L×W×H)(mm) 1920×670×1060
Wheel base(mm) 1245
Min Ground clearance(mm) 130
Seat height(mm) 765
Turning angle 48°
Min turning radius(mm) 1940
Front/Rear sprocket teeth 14/38
Gearshift 4-forward
Fuel tank(L) 4L
 Fuel Type gasoline
Max. Load Capacity(kg) 150
Dead Weight(kg)
 Brake Mode  Front Wheel Disc brake
 Rear Wheel Drum brake
Brake Operation Mode Front Wheel Hand clip
Brake Operation Mode  Rear Wheel Kick
Wheel Rim Type Aluminum Front: 1.40×17
Aluminum Rear: 1.60×17
Tire type with tube
Front tire 2.50-17
Rear tire 2.75-17
Headlight 12V  18W/18Wdouble
Winker 12V  10W
Batterymm 12N4-3B   120×70×92 with acid
 Engine Model 152FMH
Engine Type 1-Cylinder, 4-stroke, air-cool, Single Over Head Camshaft
Start Electric and kick
Ignition CDI
Bore×Stroke 52.4×49.5
Displacement(ml) 107
Compression rate 8.81
Magneto 12V 6 head, full phase
Oil Capacity(ml) 800
Spark plug A7TC
Spark clearance(mm) 0.6~0.7
Valve clearance(mm) 0.05~0.06
Lubriation type Press and splash
Carburetor PZ19
Transmission Constant mesh, 4-forward, with high shift protection
Clutch type Automatic, wet type, offcenter
Initial rate 3.722
Gears rate 1st: 3.273,2nd: 1.938,3rd: 1.350,4th: 1.043
Final trans Chain
Rotation direction Facing shaft, unclock wise
Size(mm) 477×395×280
Net Weight(kg) 25
Rated Power 4.6KW(7500r/min±5%)
Max Power 5.0KW(8000r/min±5%)
Max Torque 6.5N·m(5500-6500r/min)
Min fuel comsumption(g/kw.h) 367
Load Quantity SKD 40HQ 105 units
Load Quantity CKD 40HQ 190 units
