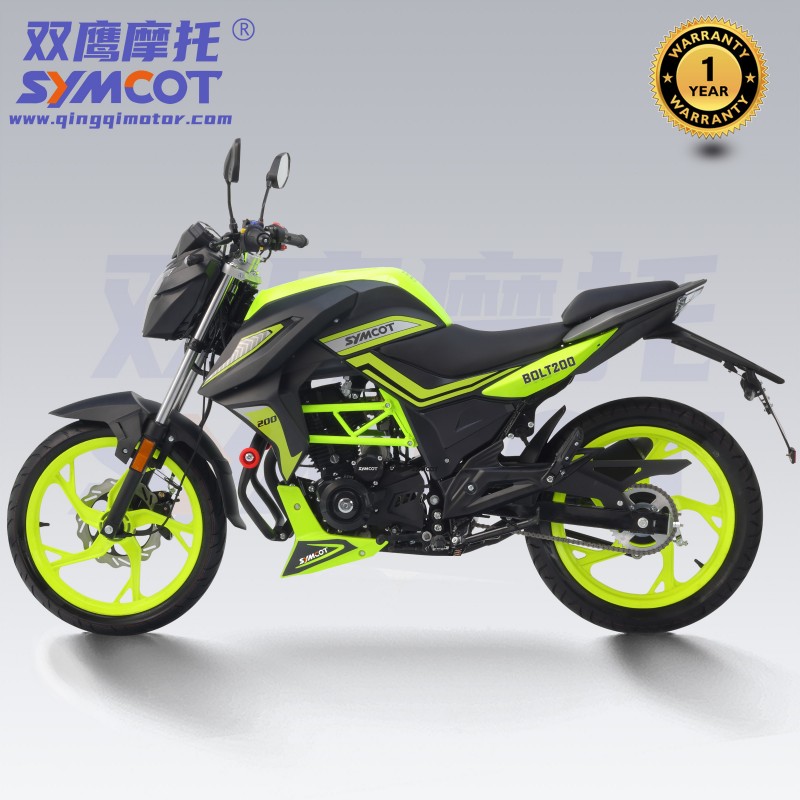

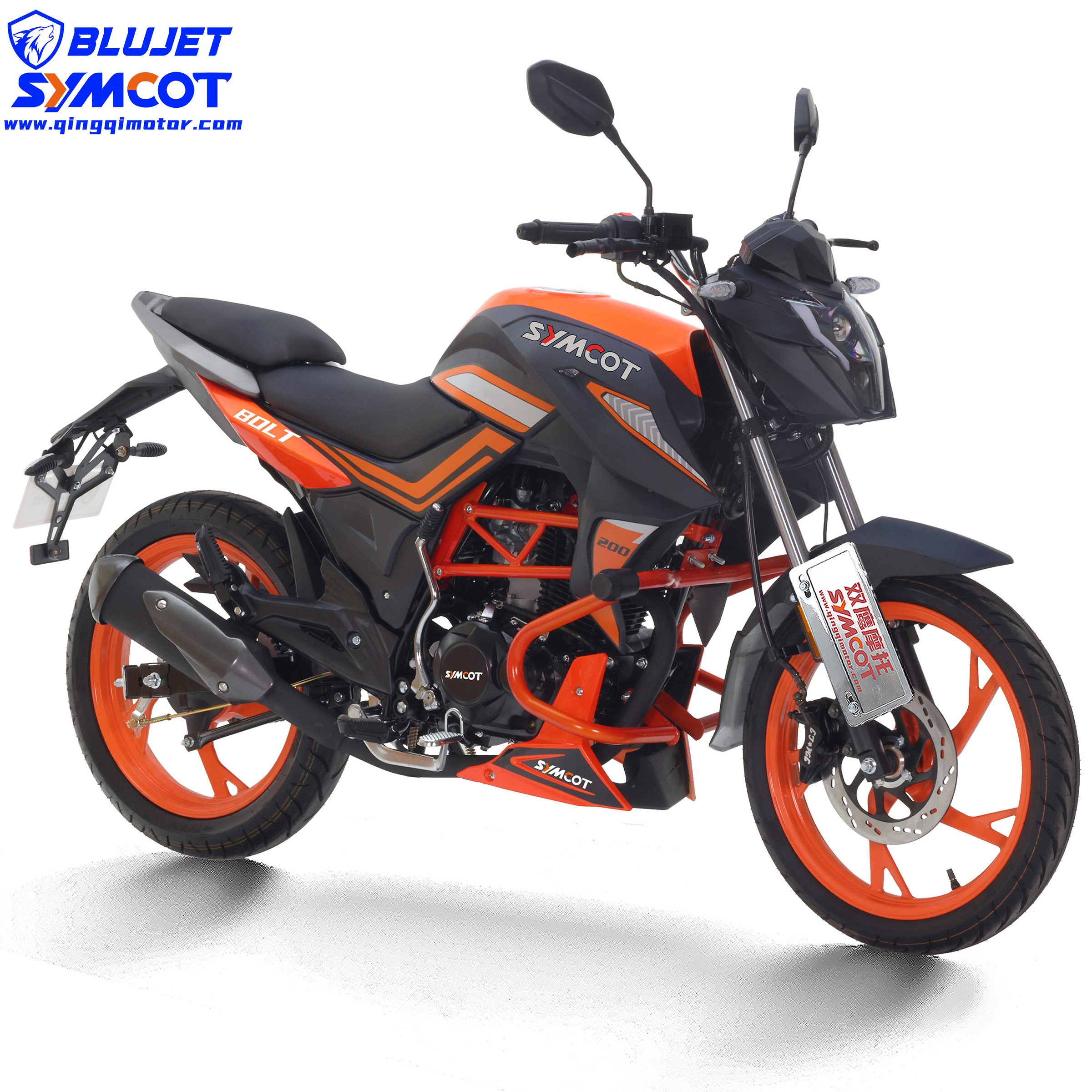

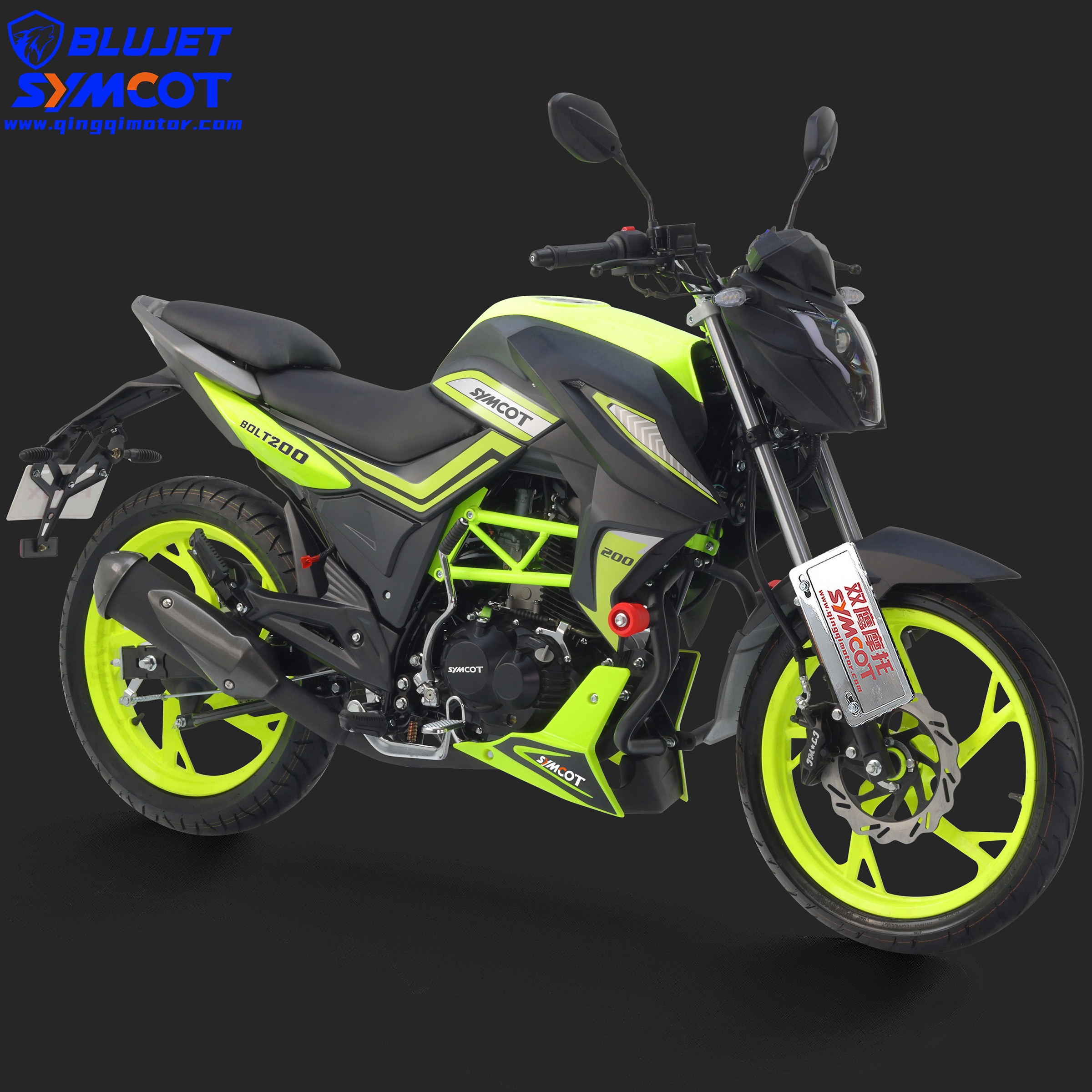

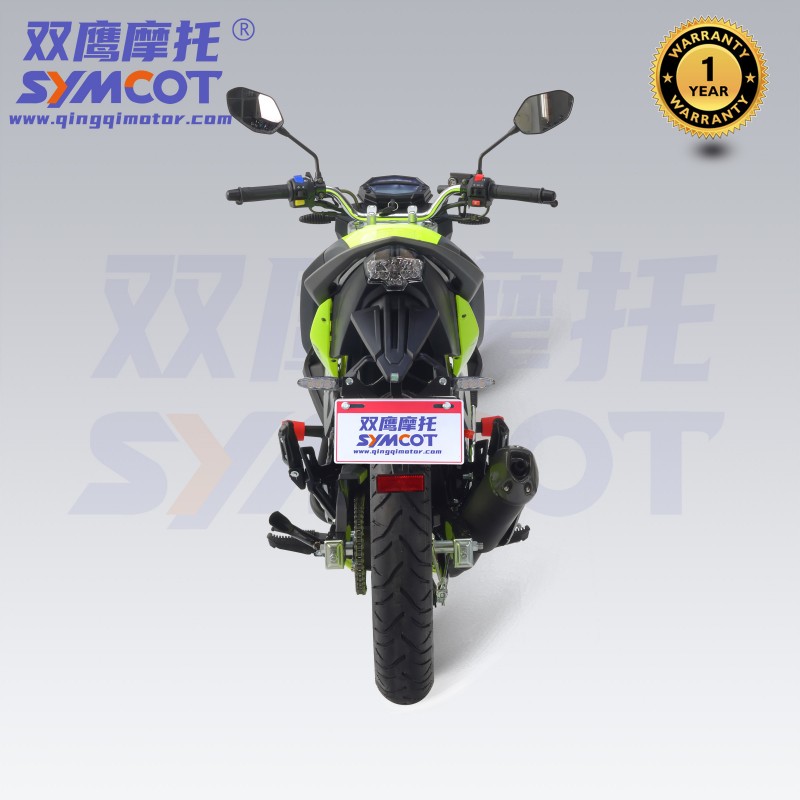

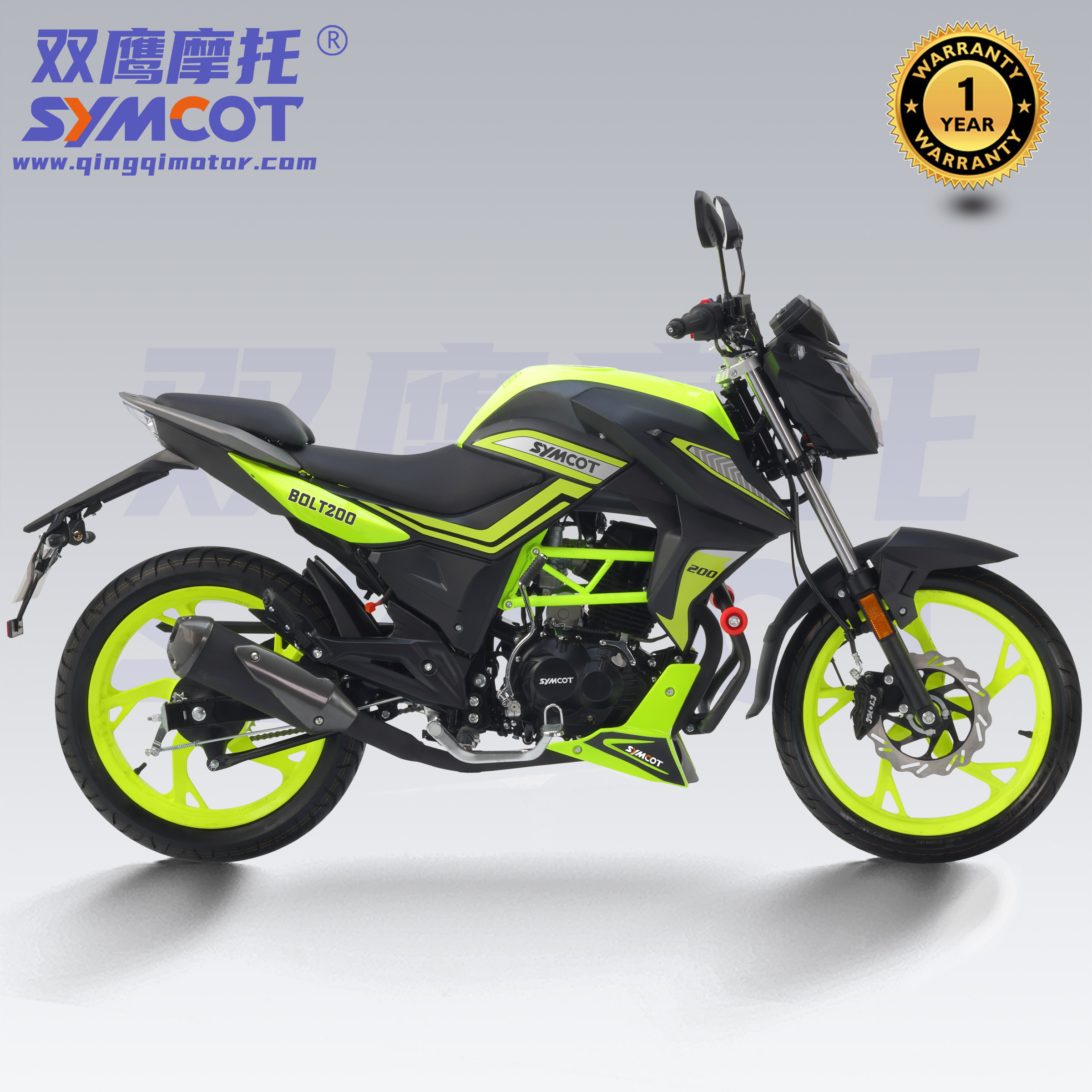

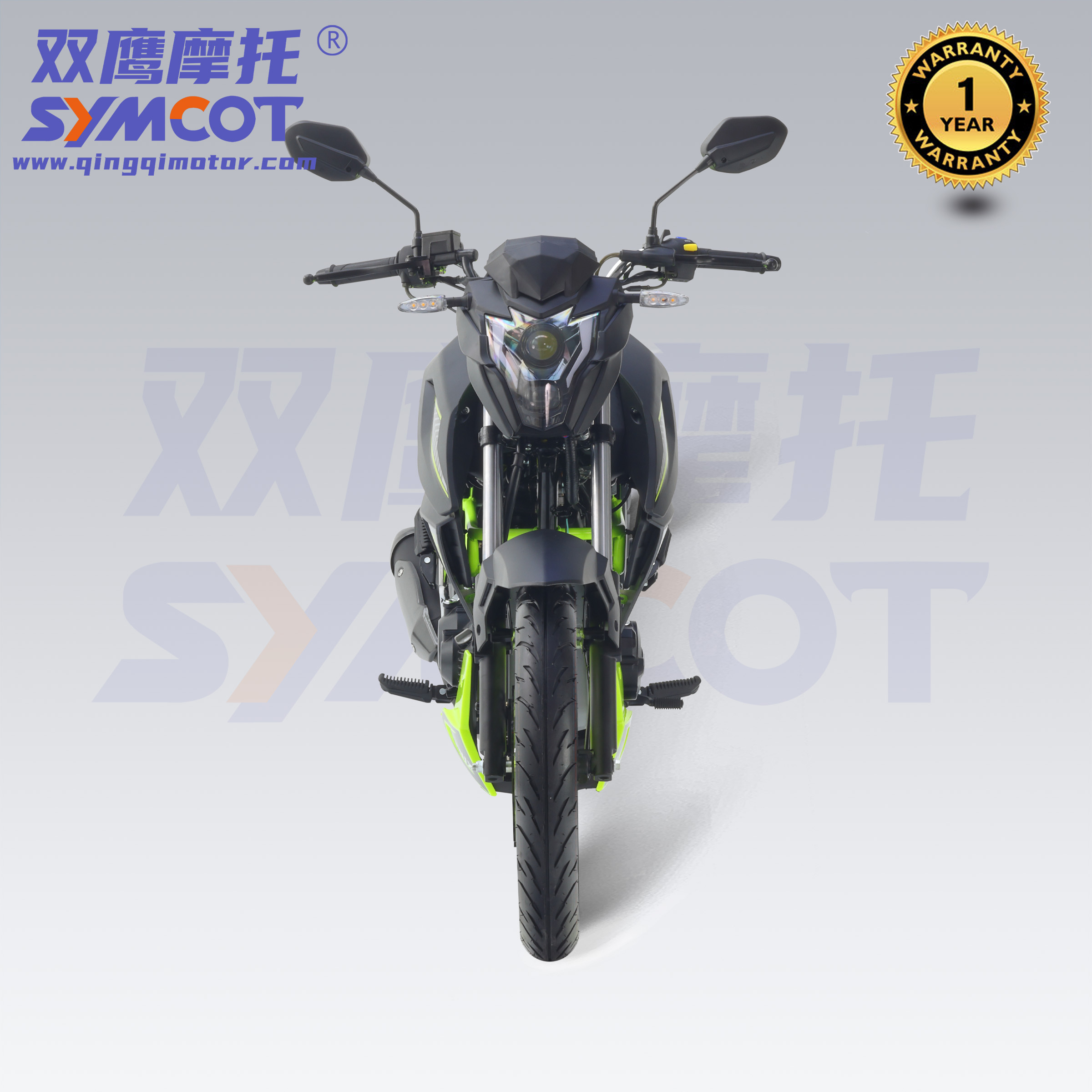

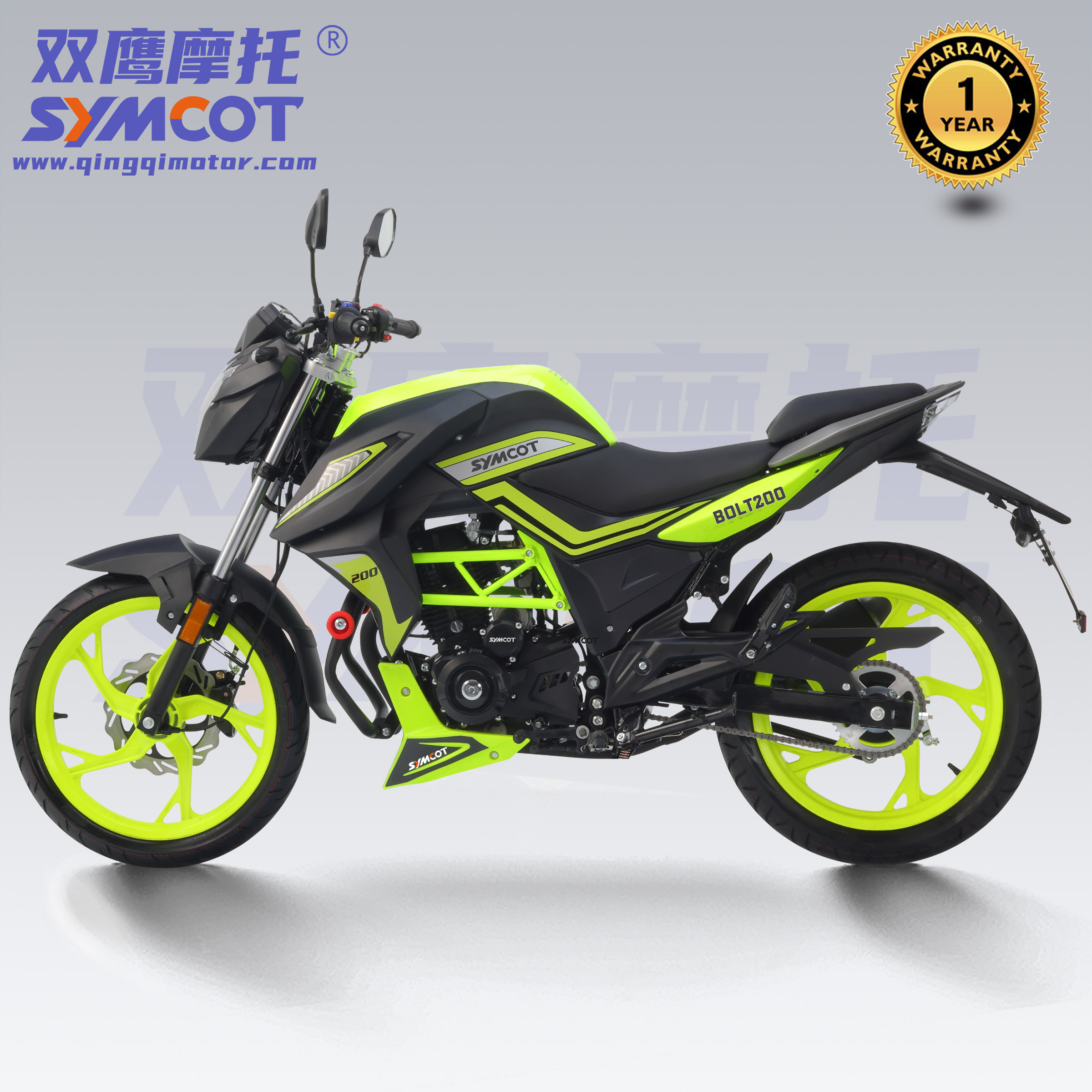

| Model： | AK200 | |
| Dimension.(L×W×H)(㎜) | 2000×760×1050 | |
| Wheel base(㎜) | 1356 | |
| Min ground clearance (㎜) | 142 | |
| Seat height(㎜) | 830 | |
| Turning angle | ＜48° | |
| Min turning radius(㎜) | 2120 | |
| Front/rear sprocket teeth | 17/42 | |
| Gearshift | 5-forward | |
| Fuel tank(L) | 9L | |
| Fuel Type | Gasoline | |
| Max. Load Capacity(kg) | 150 | |
| Dead Weight(kg) | 132 | |
| Displacement/Power(ml/kw): | 197㏄ | |
| Eco fuel consumption(L/100km) | 2.1 | |
| Brake Mode： | Front Wheel | Disc brake |
| Rear Wheel | Drum brake | |
| Front Wheel | Manual | |
| Brake Operation Mode | Rear Wheel | kick |
| Wheel Rim Type | Front aluminum wheel: 1.60×17 | |
| Rear aluminum wheel: 2.10×17 | ||
| Tire type | With tube | |
| Front tire | 90/80-17 | |
| Rear tire | 120/70-17 | |
| Head light | 12V 35W/35W | |
| Winker | 12V 10W | |
| Battery（mm） | Maintenance Free: 12V9AH 114×71×106 | |
| Engine type | 1-Cylinder, 4-stroke, air-cool, OHC | |
| Engine Model | 163FML | |
| Start | Electric+kick | |
| Ignition | CDI | |
| Bore×Distance | 63.5×62.2 | |
| Displacement(ml) | 197 | |
| Compression rate | 9.2：1 | |
| Magneto | 12V 8head full phase | |
| Oil capacity(ml) | 1100 | |
| Spark plug | D8EA（NGK） | |
| Spark clearance(mm) | 0.6~0.7 | |
| Valve clearance(mm) | 0.04~0.06 | |
| Lubriation | press+splash | |
| Carburetor | PZ30 | |
| Transmission | Constant mesh | |
| Clutch type | Manual, multi-disc | |
| Initial trans rate | 3.333 | |
| Gearshift rates | 1st: 2.769 2nd: 1.882 3rd: 1.400 4th 1.130，fifth: 0.960 | |
| Final trans | Chain | |
| Rotation direction | Facing shaft, unclock wise | |
| Size(mm) | 388×324×446 | |
| N.W.(kg) | 31 | |
| Rated power | 9.7KW(7500r/min±5%) | |
| Max power | 10.8KW(8000r/min±5%) | |
| Max torque | 13.5N·m(6500r/min) | |
