$700.00 Price drop reminder
  • Product Code: AK150
  • Availability: 1000

Total $700.00
This product has a minimum quantity of 34

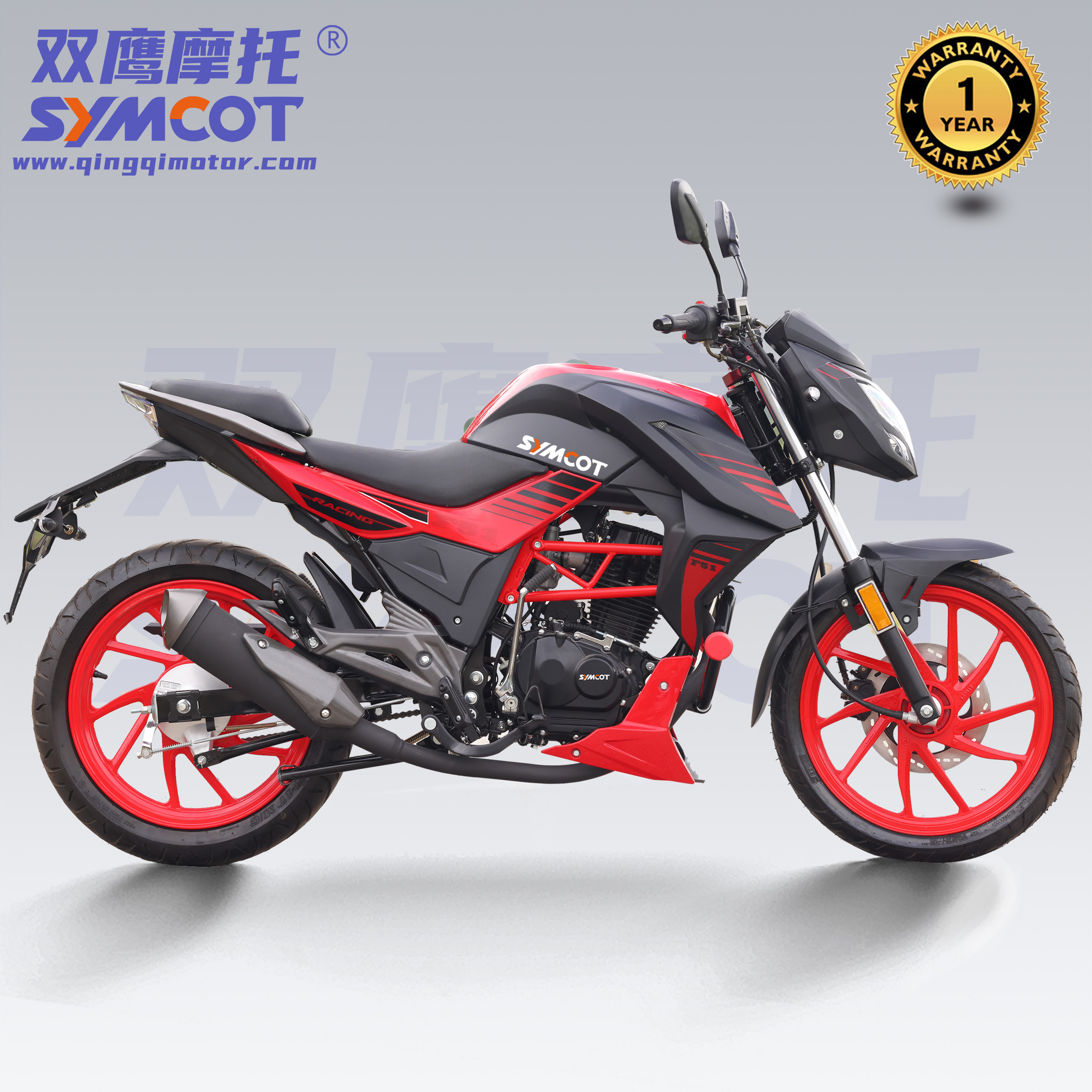

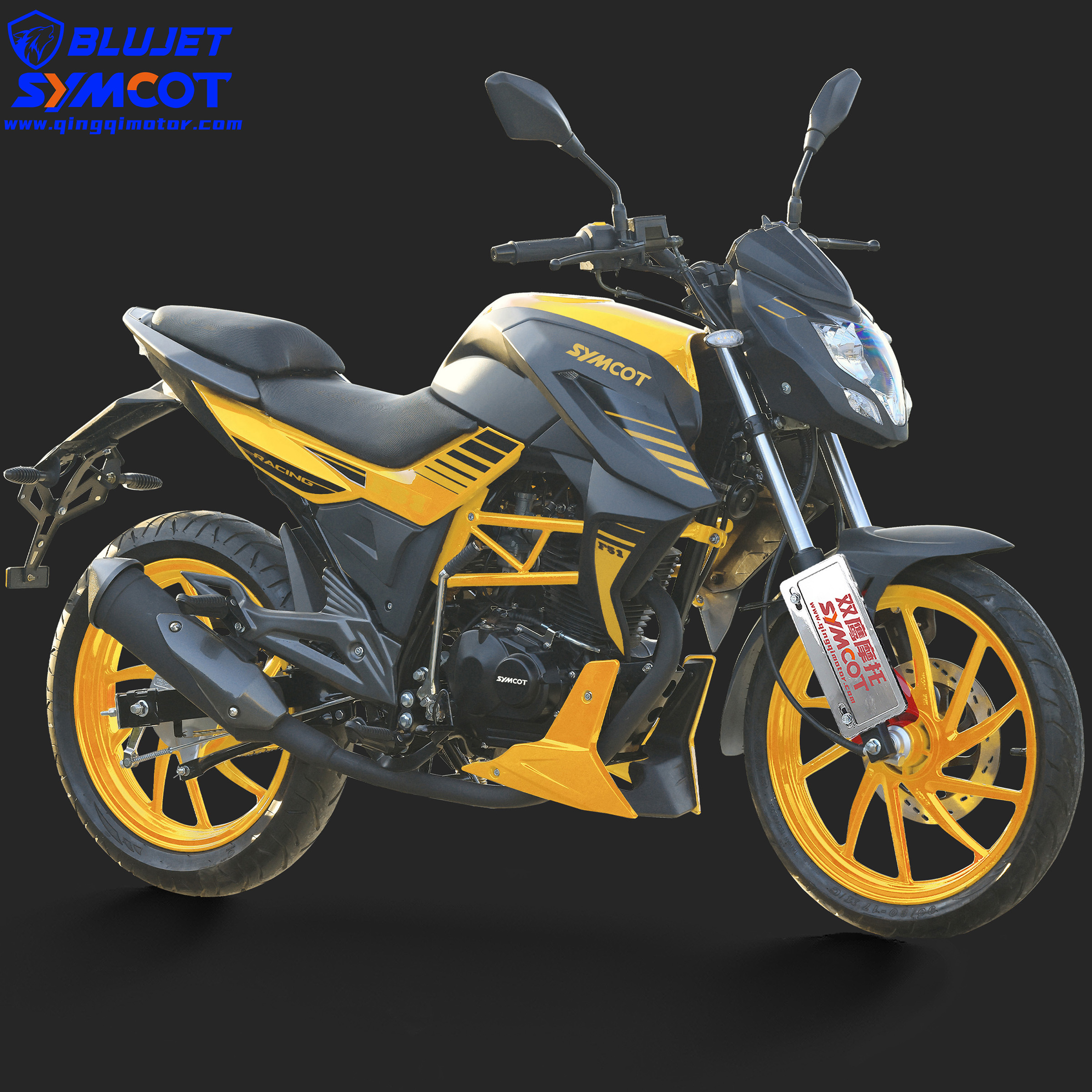

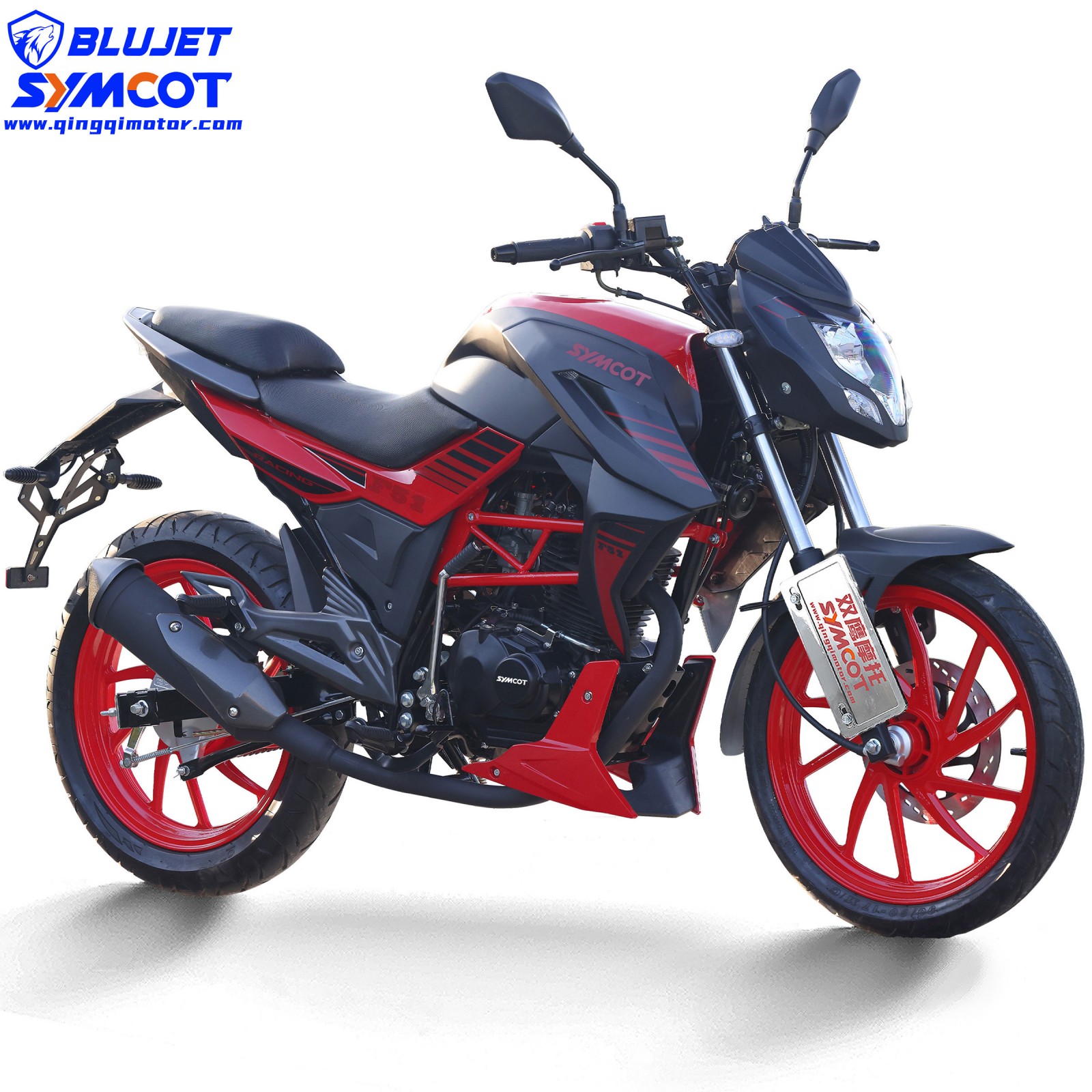

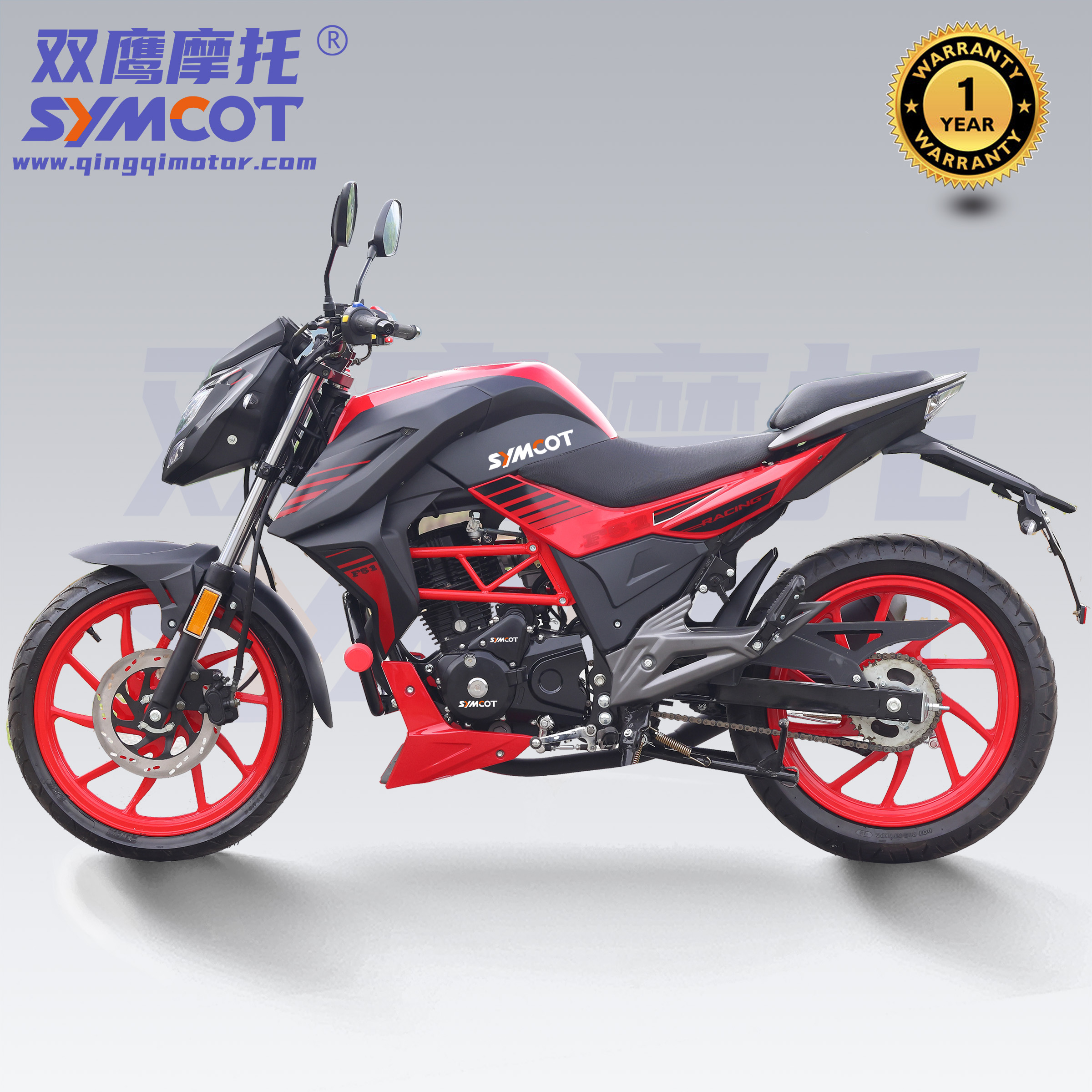

 Model AK150
Dimension.(L×W×H)(mm) 2050×770×1030
Wheel base(mm) 1380
Min ground clearance (mm) 170
Seat height(mm) 800
Turning angle 48°
Min turning radius(mm) 2120
Front/rear sprocket teeth 15/42
Gearshift 5-forward
Fuel tank(L) 9.5
 Fuel Type Gasoline
Max. Load Capacity(kg) 150
Dead Weight(kg) 132
Displacement/Power(ml/kw): 149cc
Eco fuel consumption(L/100km) 2
Brake Mode Front Wheel Disc brake, D240
Rear Wheel Disc brake, D220
  Front Wheel Manual
Brake Operation Mode Rear Wheel kick
Wheel Rim Type Front aluminum wheel:       1.85×17
Rear aluminum wheel:     2.5×17
Tire type Tubeless
Front tire 90/90-17
Rear tire 110/80-17
Head light 12V  35W/35W LED
Winker 12V  10W
Batterymm 12N7-4A     Jelly battery
Engine type 1-Cylinder, 4-stroke, air-cool, OHC
Engine Model 162FMJ
Start Electric+kick
Ignition CDI
Bore×Distance 62×49.5
Displacement(ml) 144.6
Compression rate 8.6:1
Magneto 12V 8head full phase
Oil capacity(ml) 1100
Spark plug D8TC
Spark clearance(mm) 0.6~0.7
Valve clearance(mm) 0.04~0.06
Lubriation Press+splash
Carburetor PZ27
Transmission Constant mesh
Clutch type manual, wet, multi-disc
Initial trans rate 3.333
Gearshift rates 1st: 2.769 ,2nd: 1.882,third; 1.400,forth: 1.130,fifth: 0.960
Final trans Chain
Rotation direction Facing shaft, unclock wise
Size(mm) 358×324×446
N.W.(kg) 31
Rated power 8.5KW(8500r/min±5%)
Max power 9.6KW(9500r/min±5%)
Max torque 9.5N·m(7500r/min)
