200-X7

$900.00 Price drop reminder
  • Product Code: 200-X7
  • Availability: 1000

Total $900.00
This product has a minimum quantity of 10

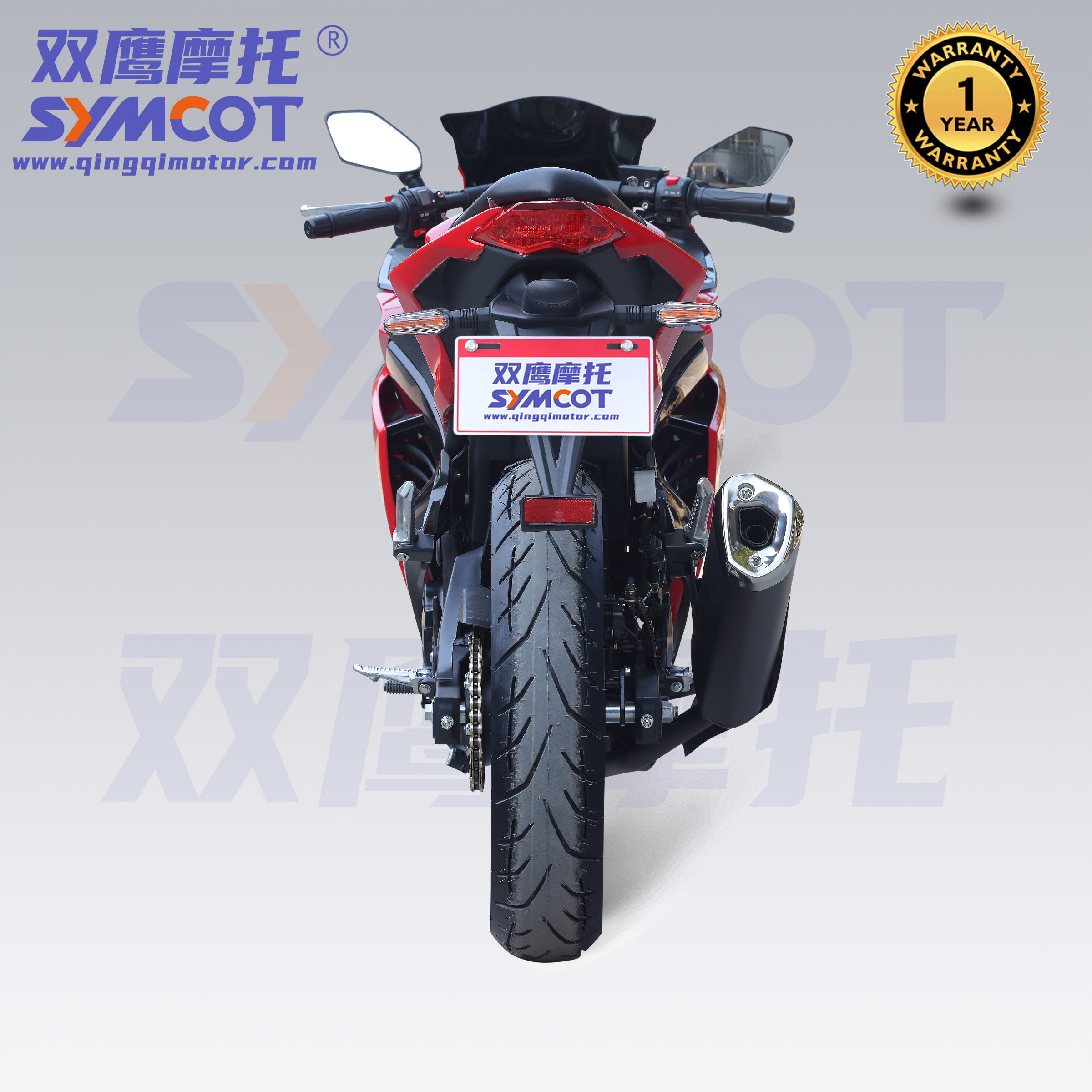

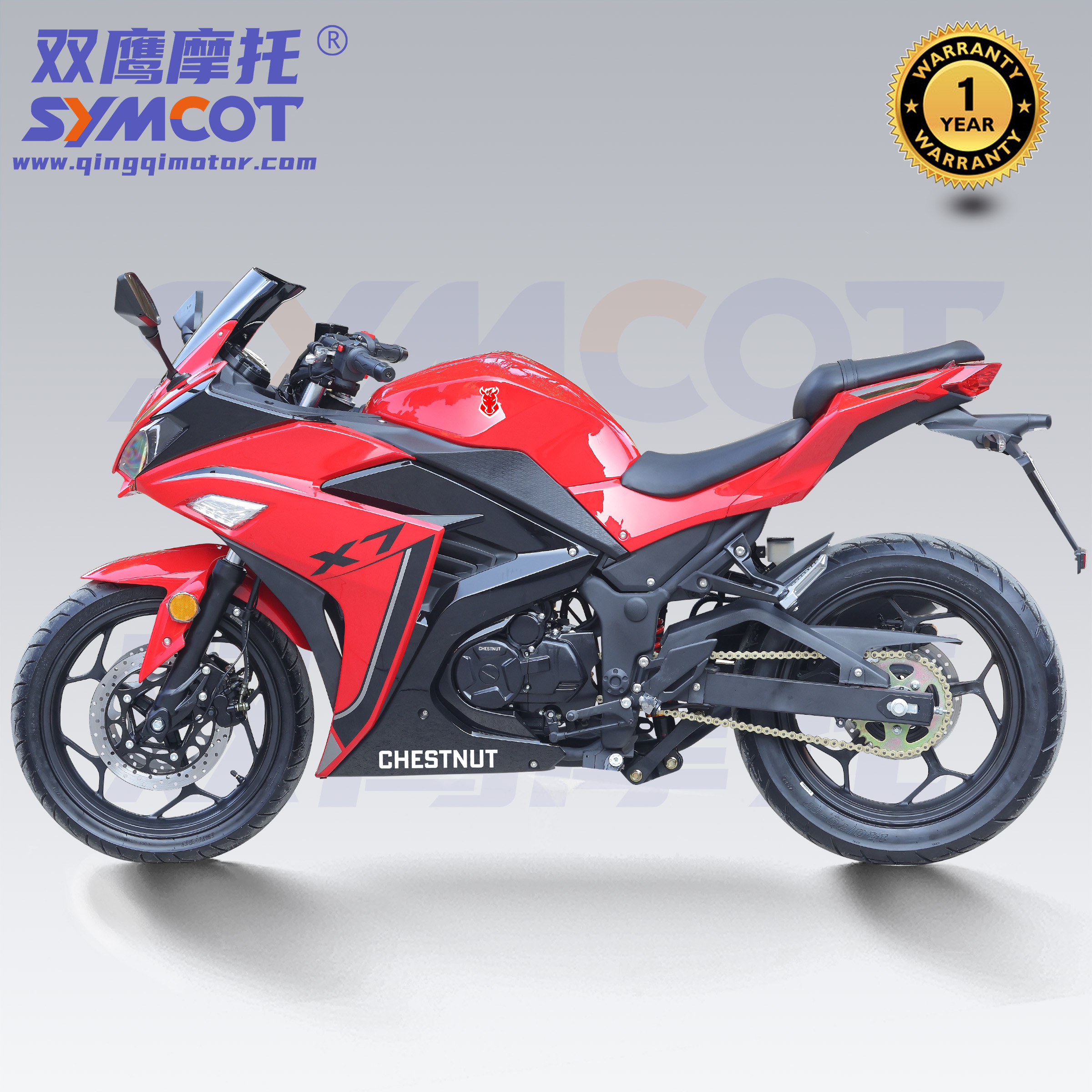

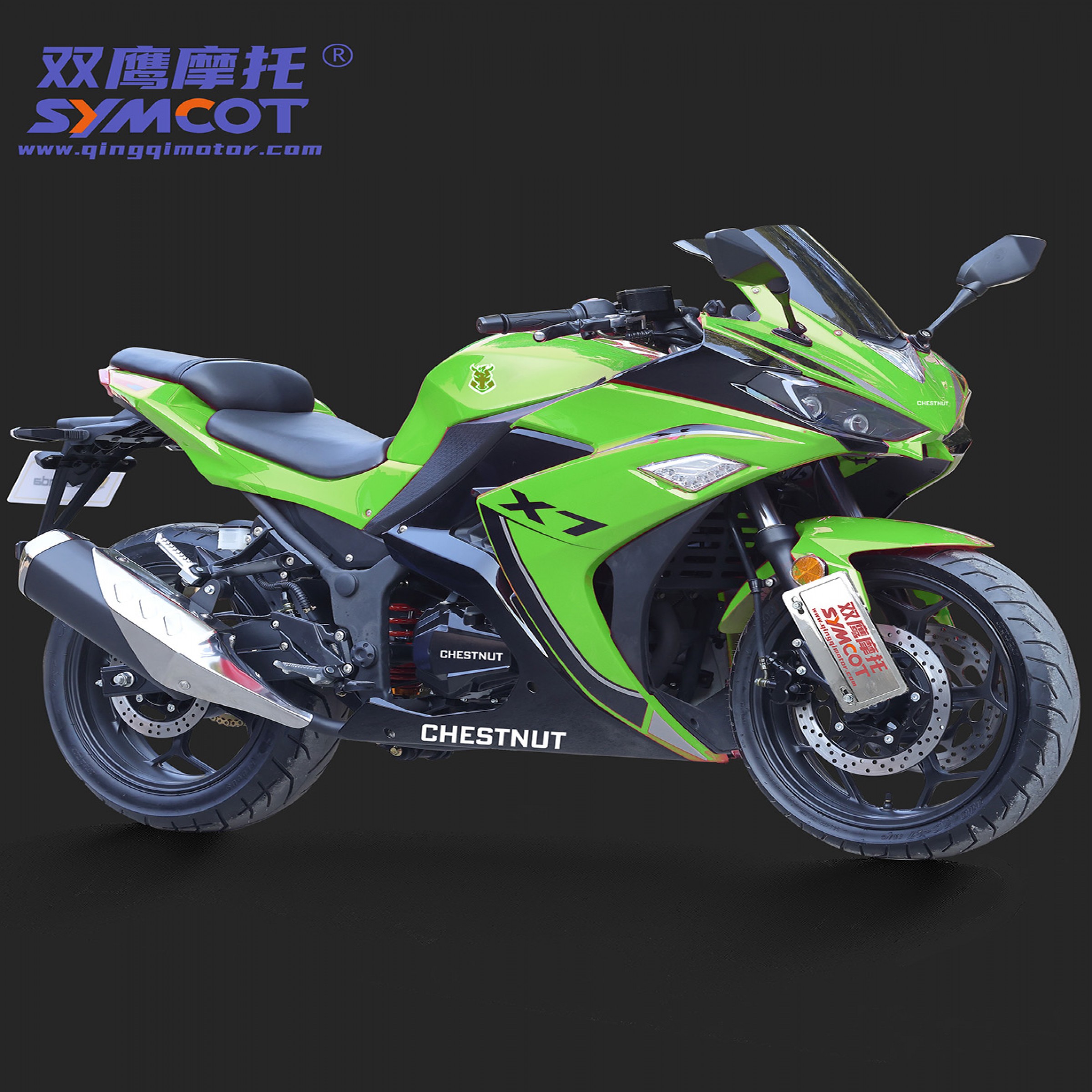

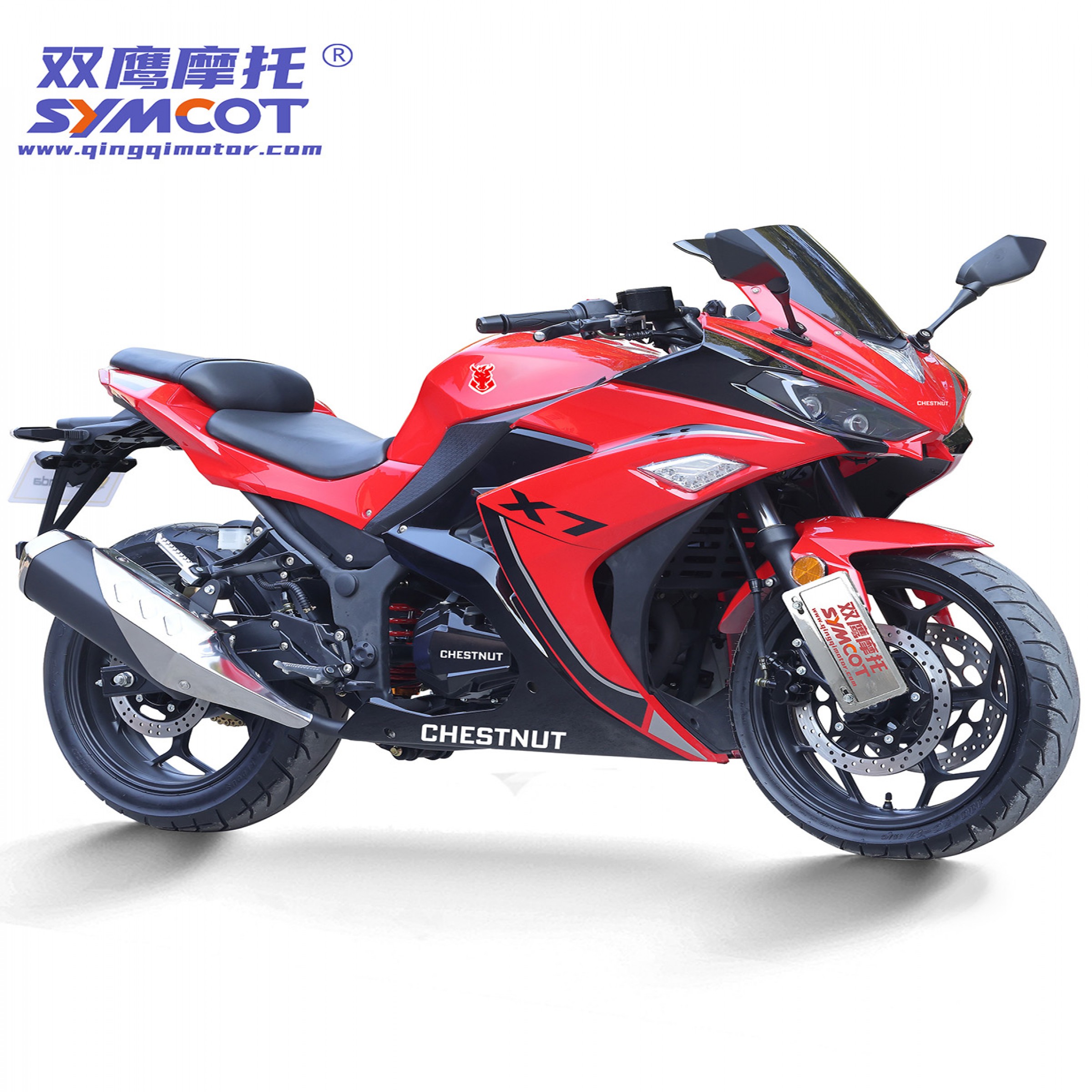

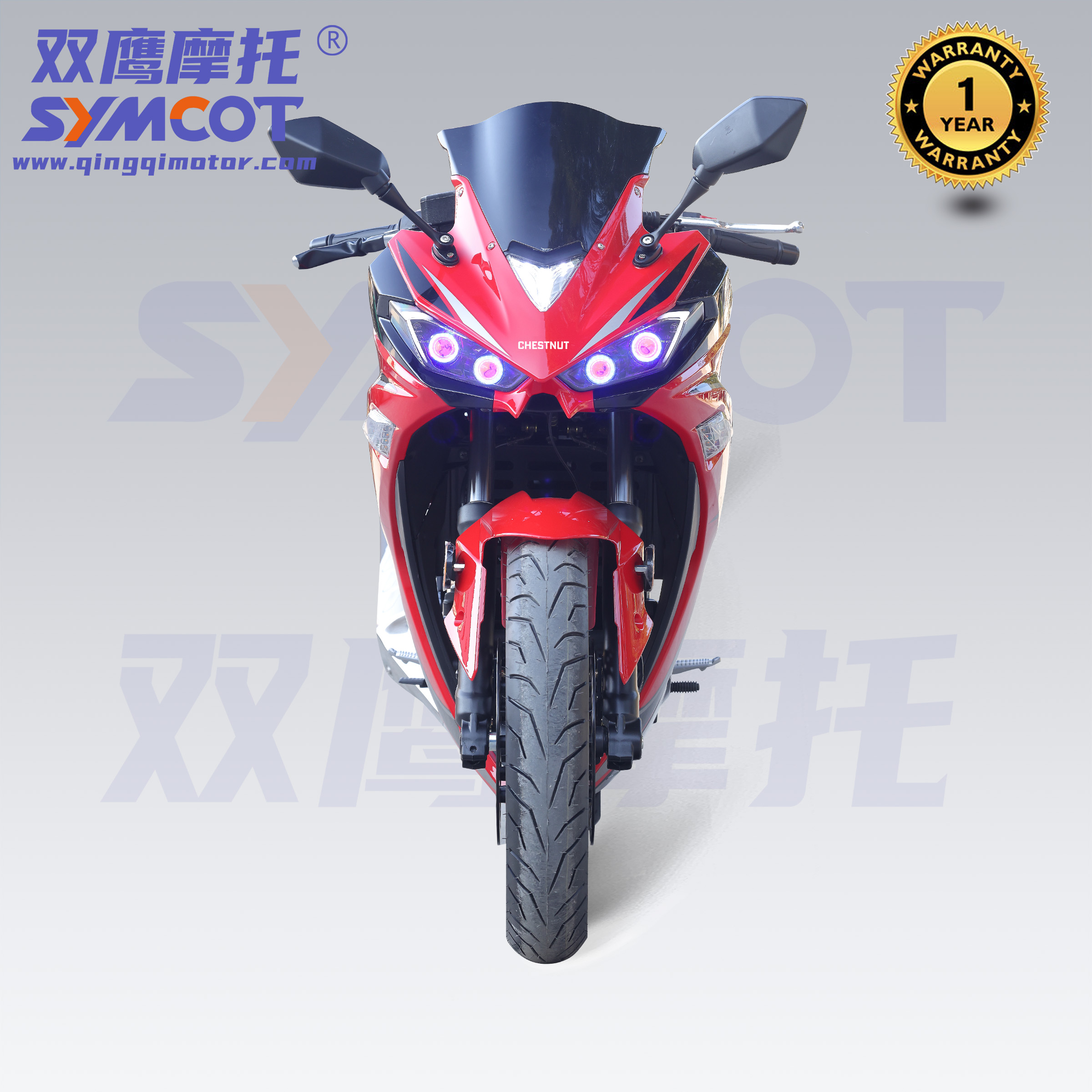

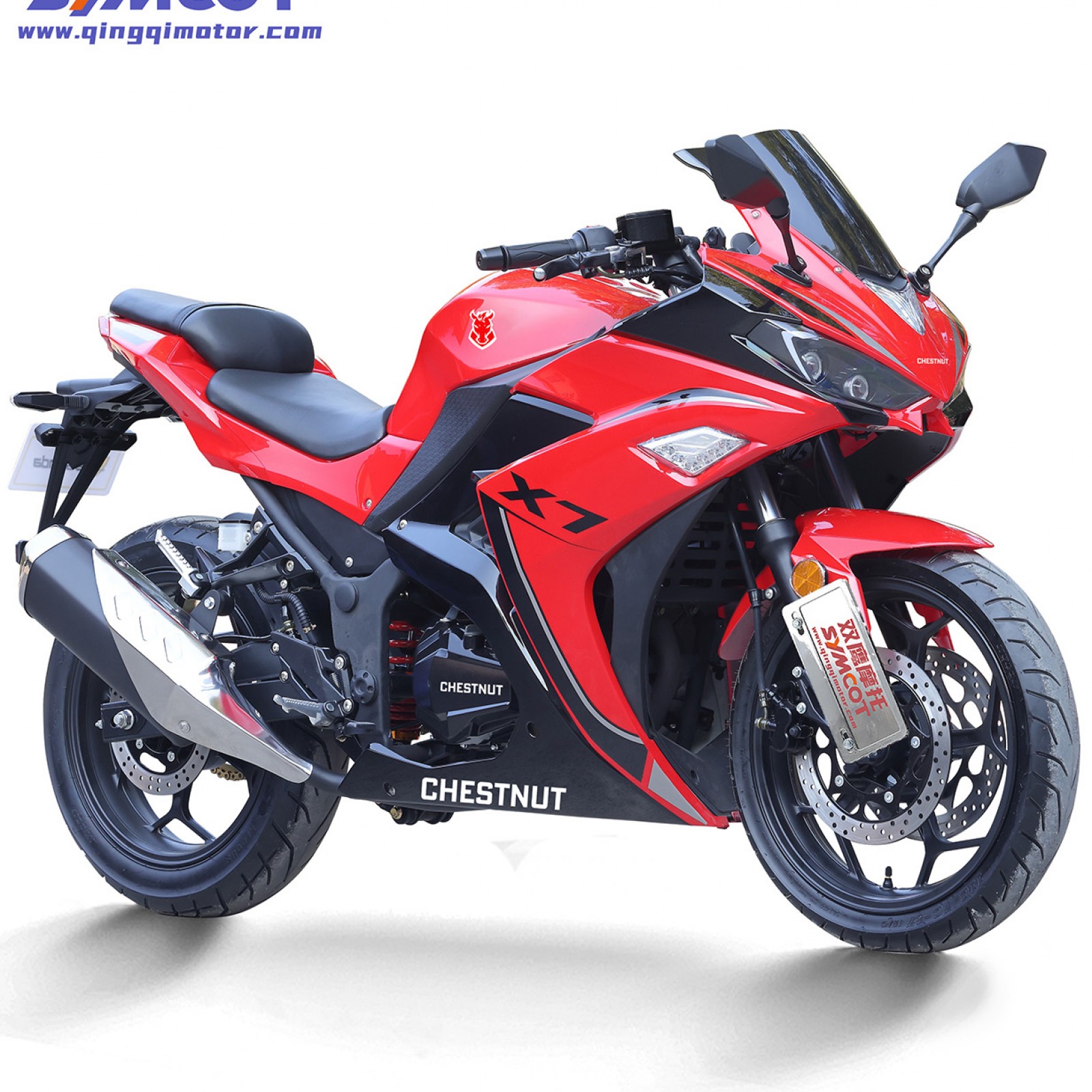

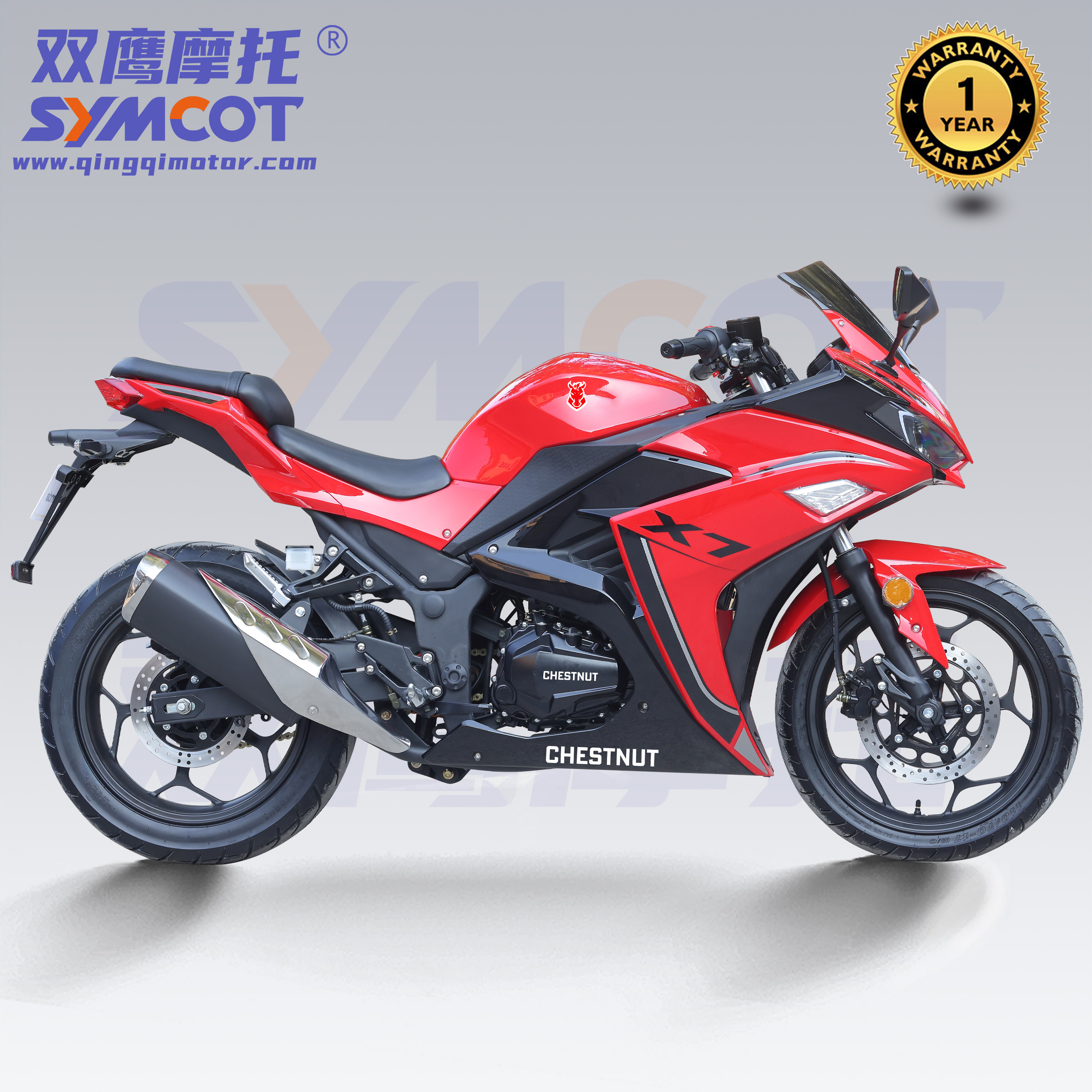

 Model X7 200
Dimension.(L×W×H)(mm) 2060X710X1140
Wheel base(mm) 1430
Ground (mm) 180
Seat height(mm) 770
Turning angle 48°
Min turning radius(mm) 2120
Front/rear sprocket teeth 17/46
Gearshift 6-forward
Fuel tank(L) 14
 Fuel Type Gasoline
Max. Load Capacity(kg) 150
Dead Weight(kg) 175
Displacement/Power(ml/kw): 198CC
Eco fuel consumption(L/100km) 2.5L
Brake Mode Front Wheel Dual Disc brake
Rear Wheel Disc brake
  Front Wheel Manual
Brake Operation Mode Rear Wheel kick
Wheel Rim Type Front spoke wheel:        2.15×17
Rear spoke wheel:        2.25×17
Tire type With tube
Front tire 110/70-17
Rear tire 140/70-17
Head light 12V  35W/35W
Winker 12V  10W
Batterymm With acid: 12V5AH

Engine type 1-Cylinder, 4-stroke, air-cool, with balancer, 6-speed
Engine Model LONCIN CBB200
Start Electric+kick
Ignition CDI
Bore×Distance 63.5×62.2
Displacement(ml) 198
Compression rate 8.71
Magneto 12V 8head full phase
Oil capacity(ml) 1100
Spark plug D8EANGK
Spark clearance(mm) 0.6~0.7
Valve clearance(mm) 0.04~0.06
Lubriation press+splash
Carburetor PZ30
Transmission Constant mesh
Clutch type Manual, multi-disc
Initial trans rate 3.333
Gearshift rates 1st: 2.769 2nd: 1.882 3rd: 1.400 4th 1.130fifth: 0.960 sixth: 0.8
Final trans Chain
Rotation direction Facing shaft, unclock wise
Size(mm) 470×410×450
N.W.(kg) 31
Max power 12KW(7000r/min±5%)
Max torque 14N·m(5500r/min)

Load Quantity 40HQ 72 units
Price USD850 FOB China
  1950*570*860
