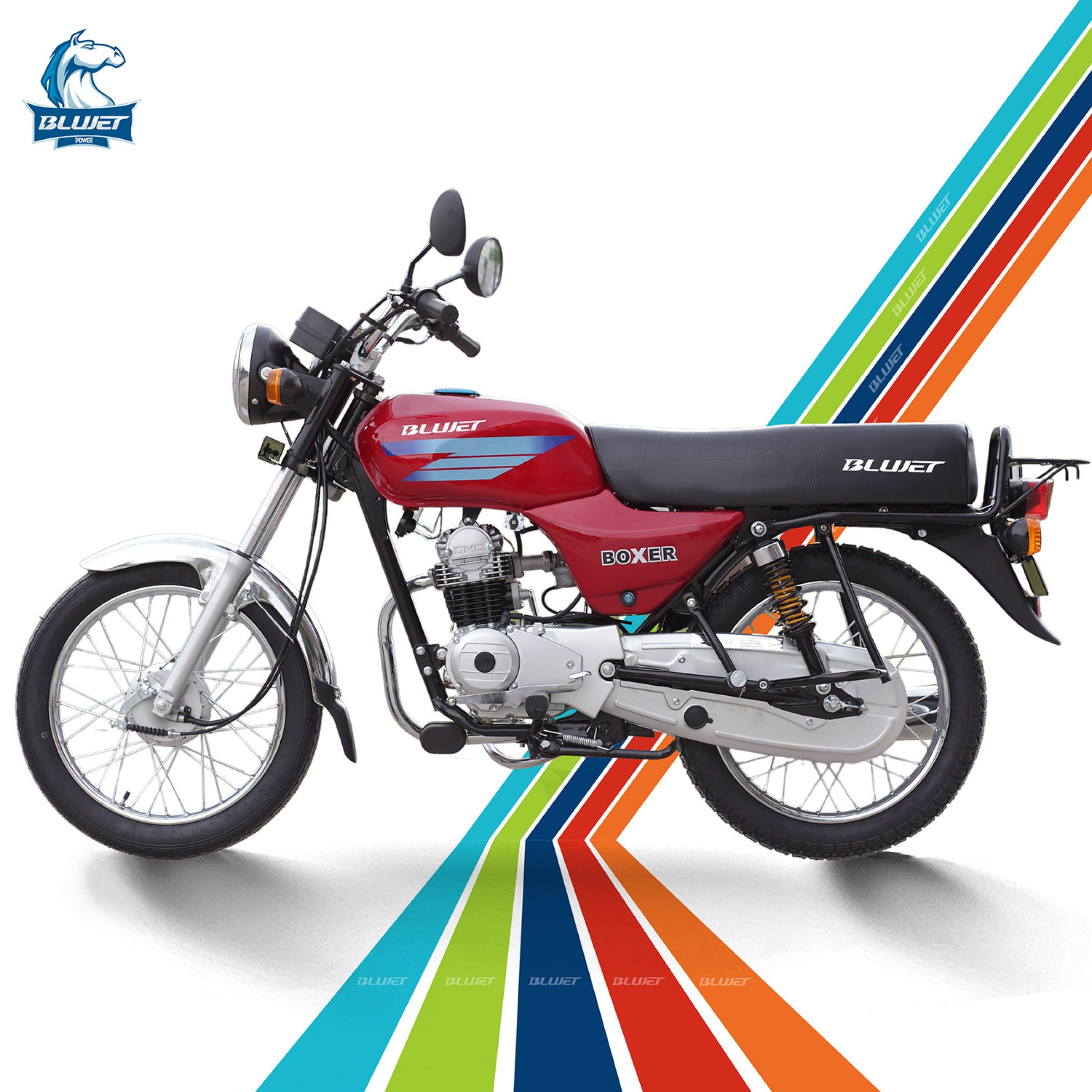

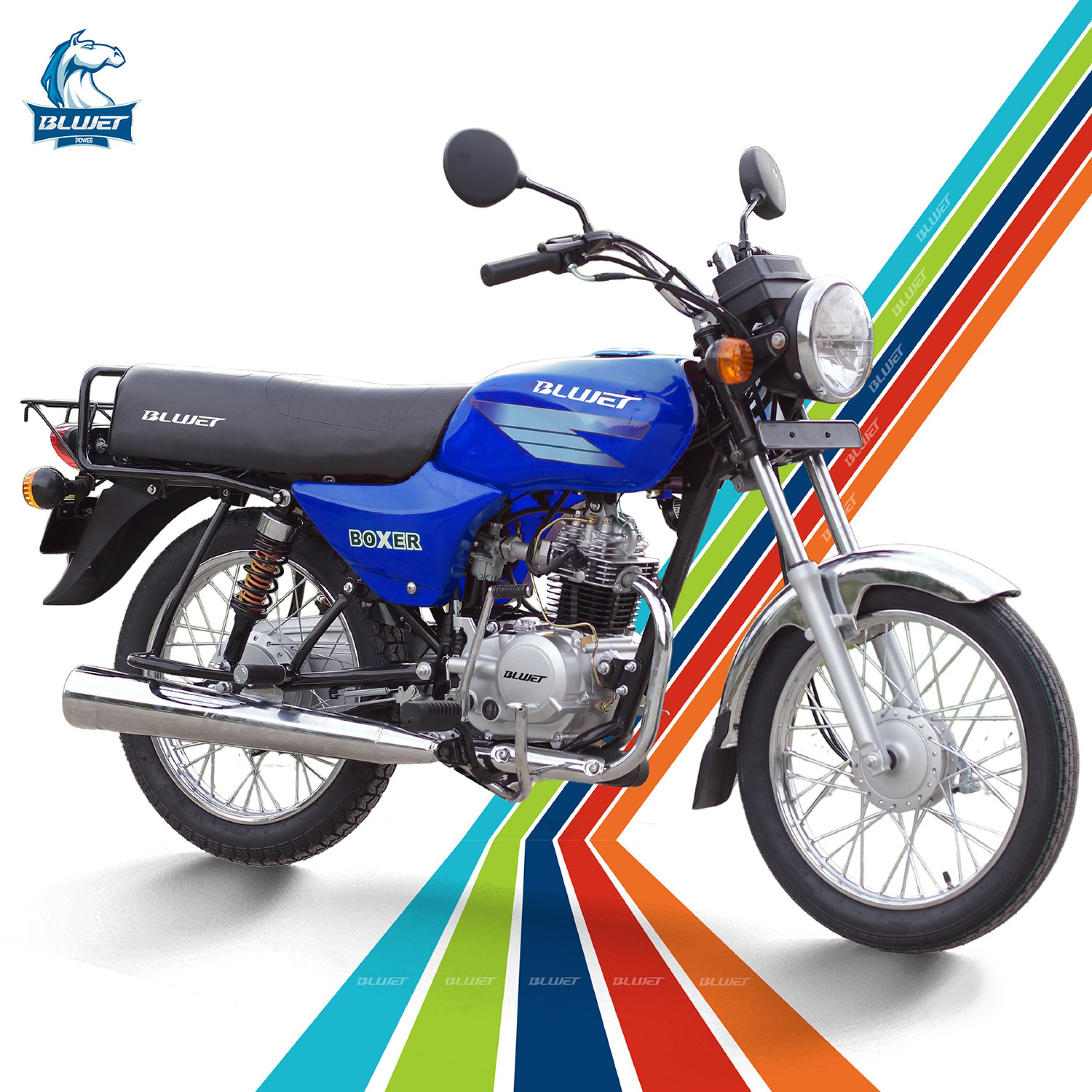

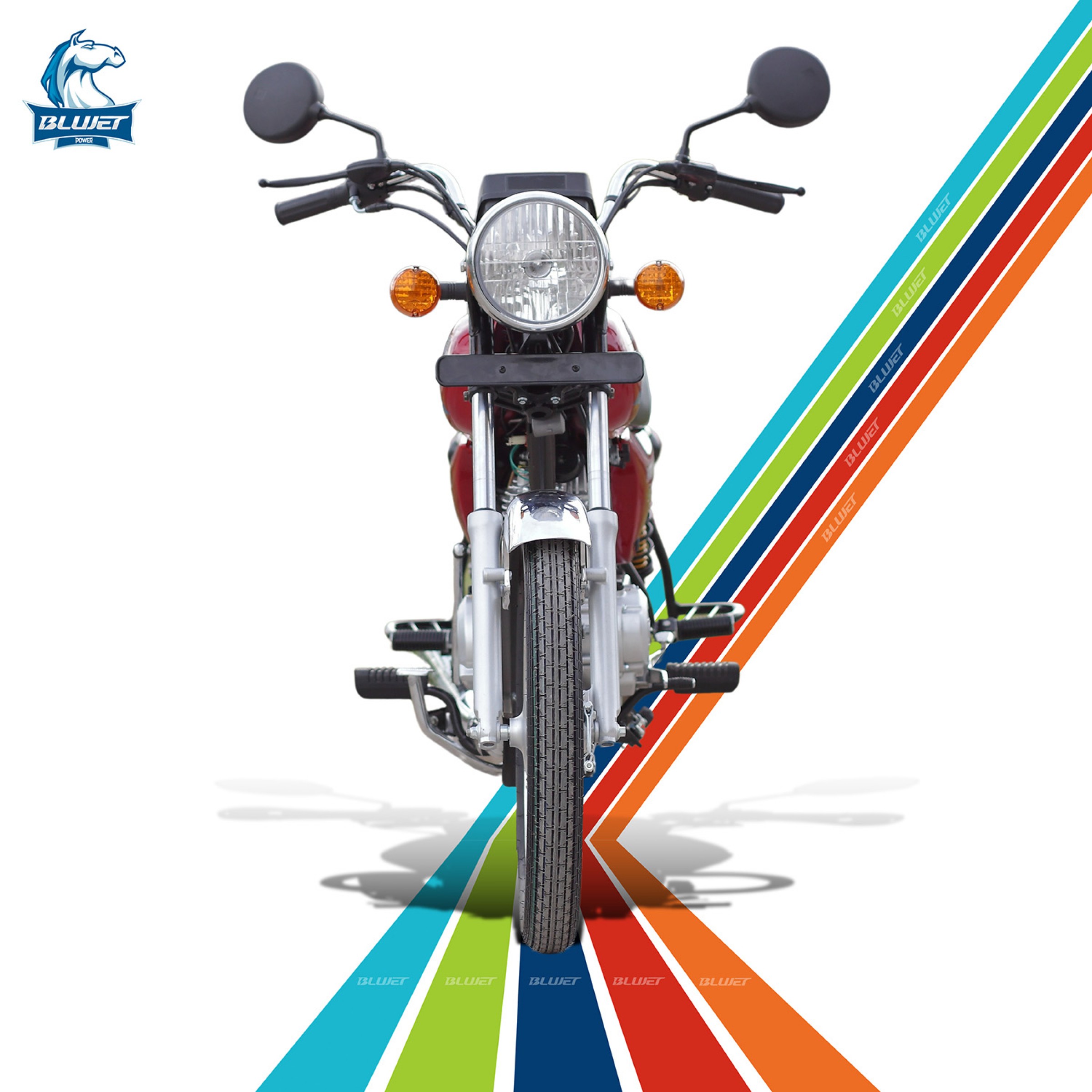

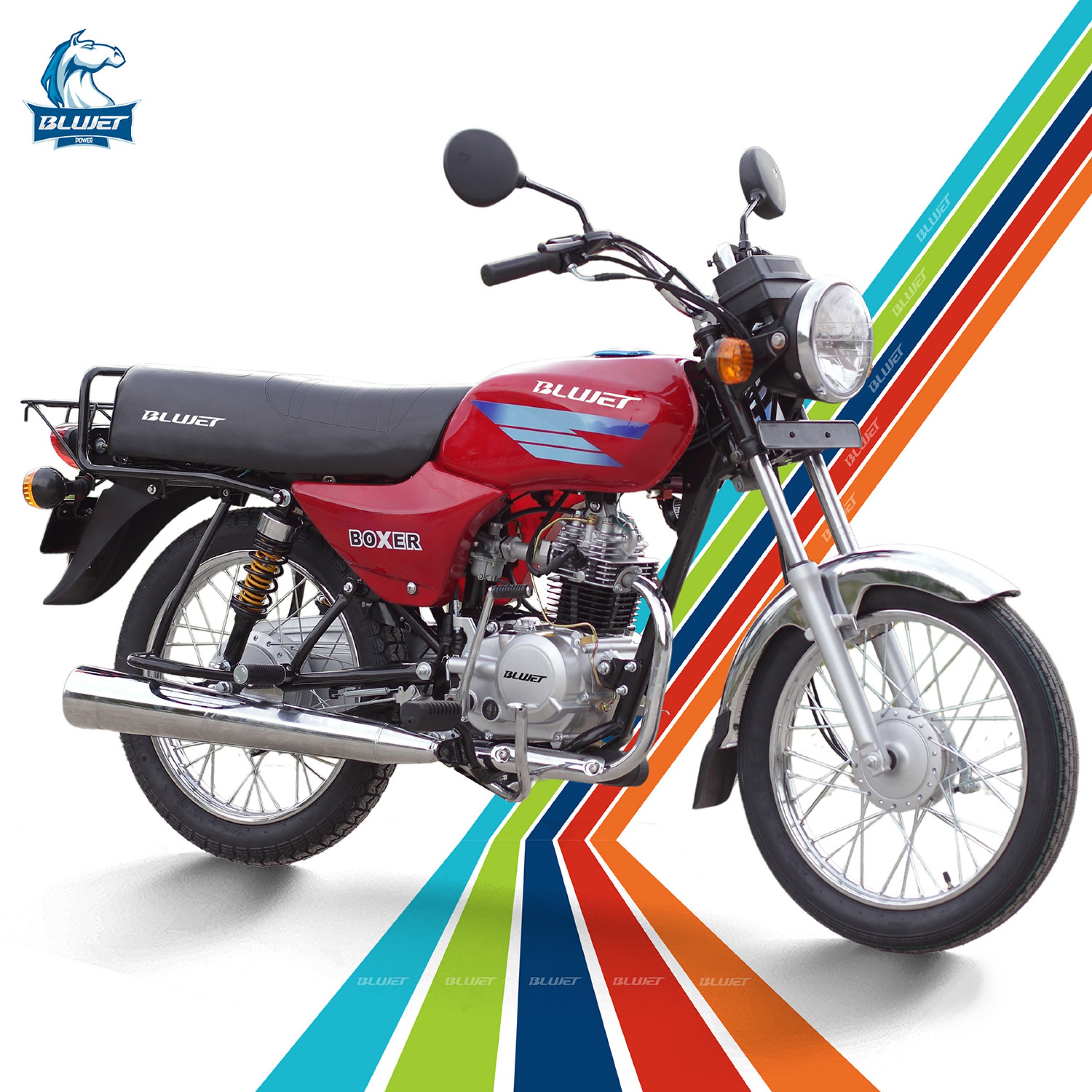

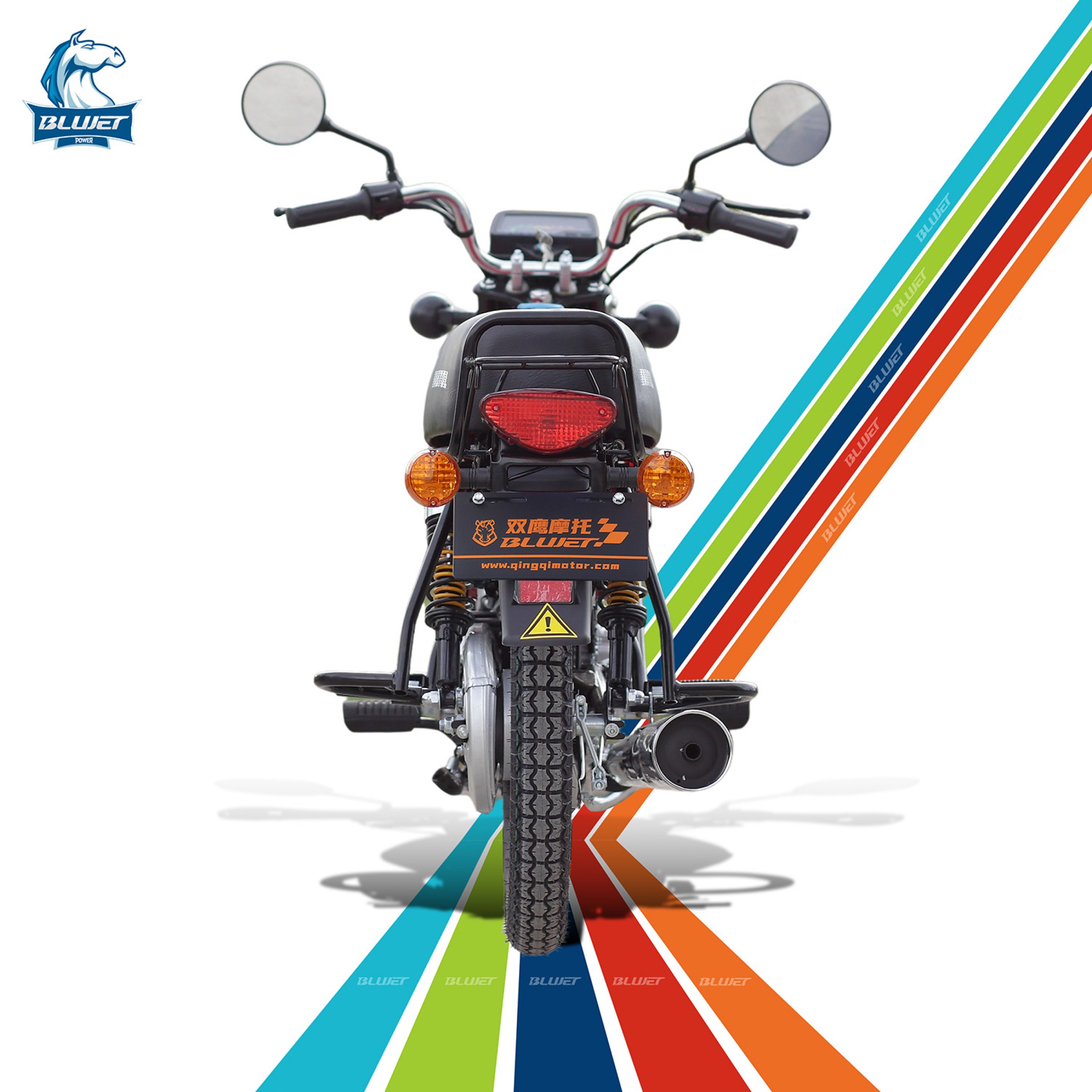

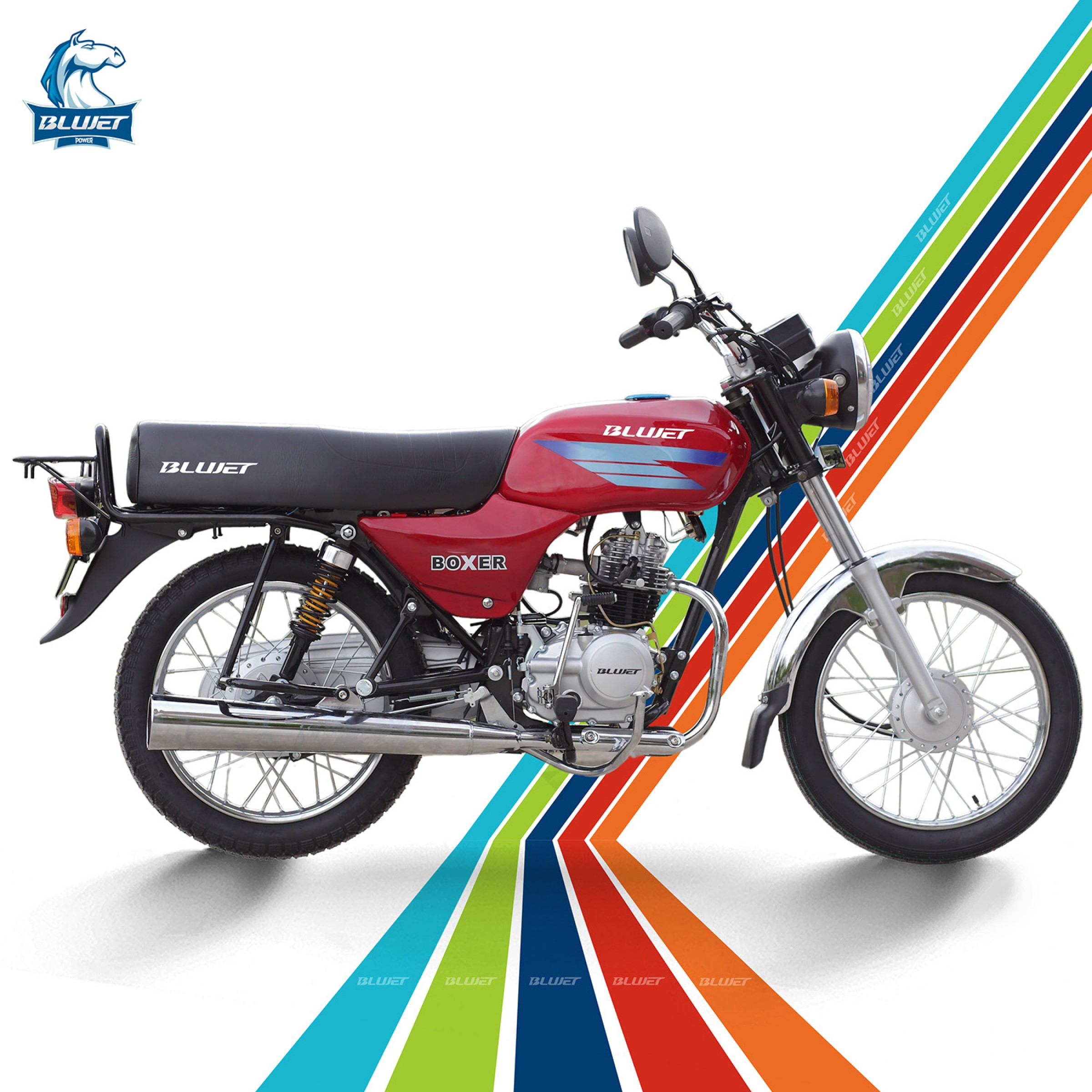

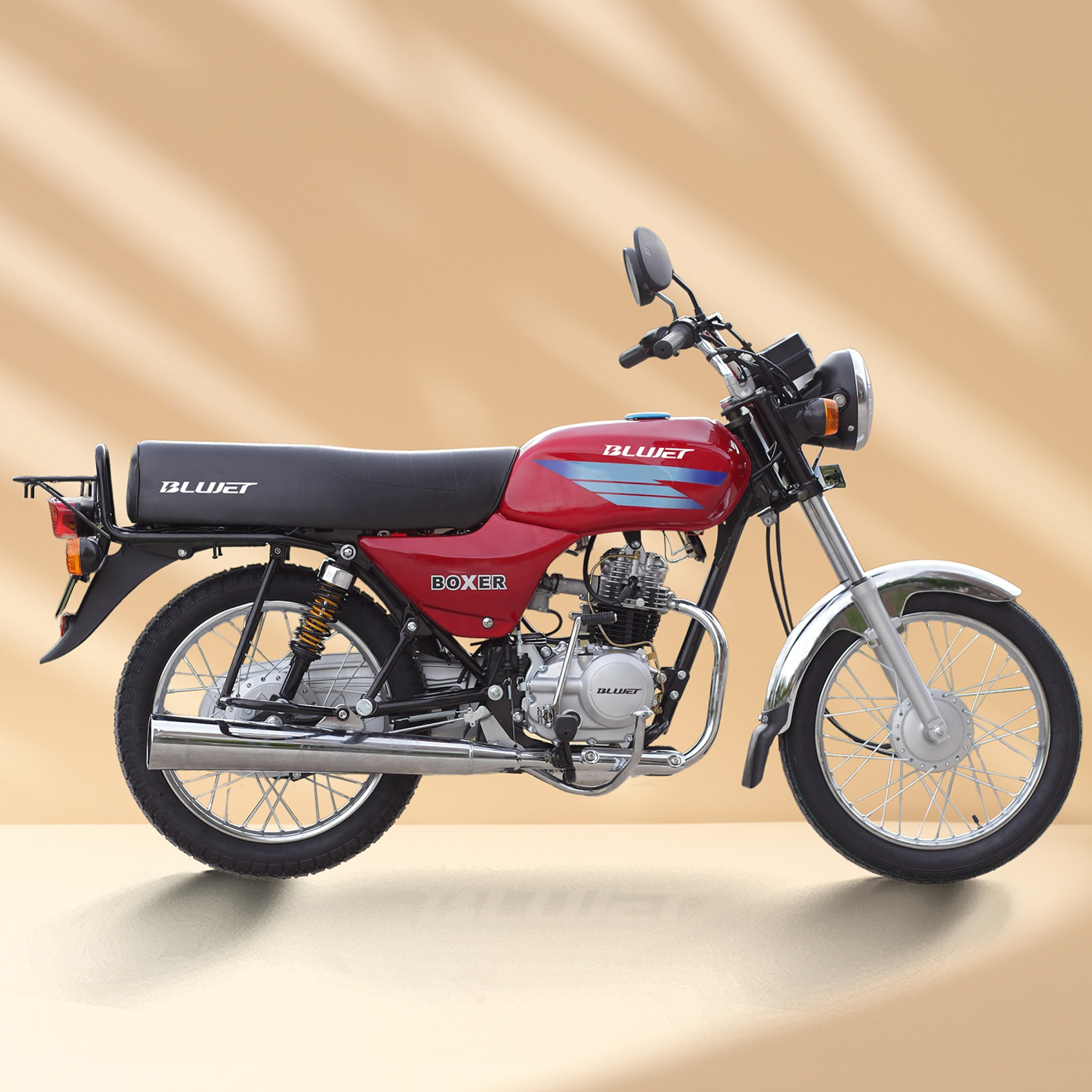

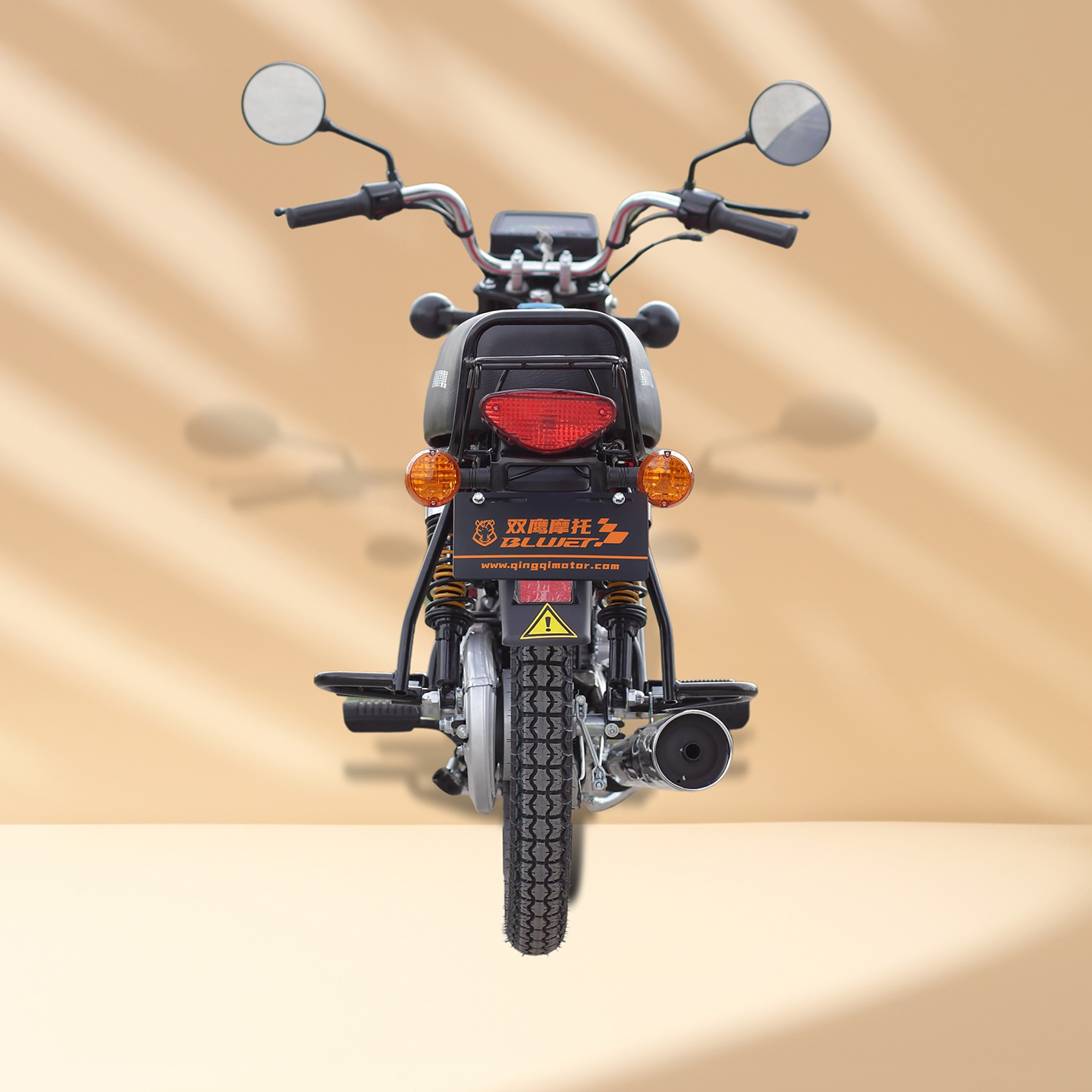

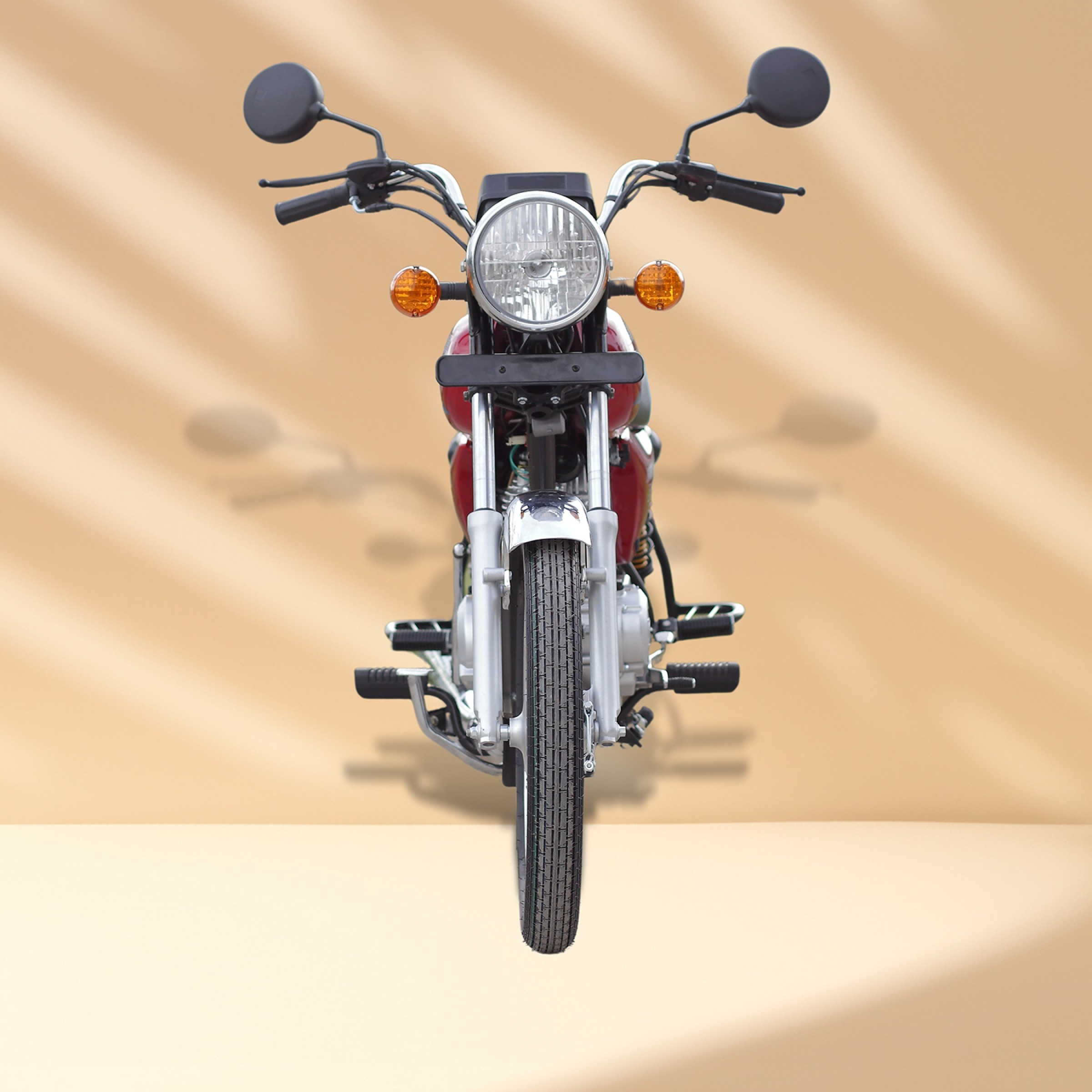

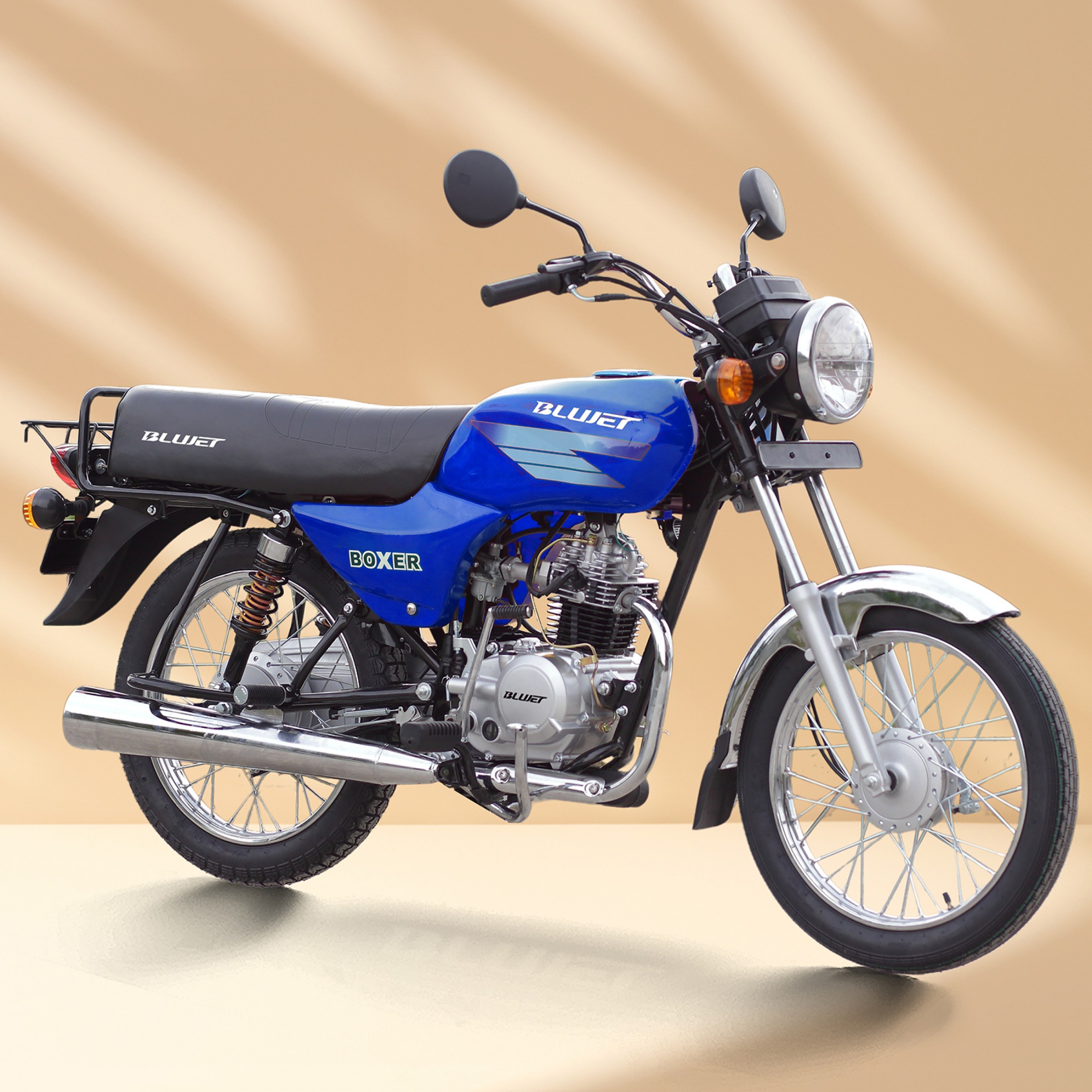

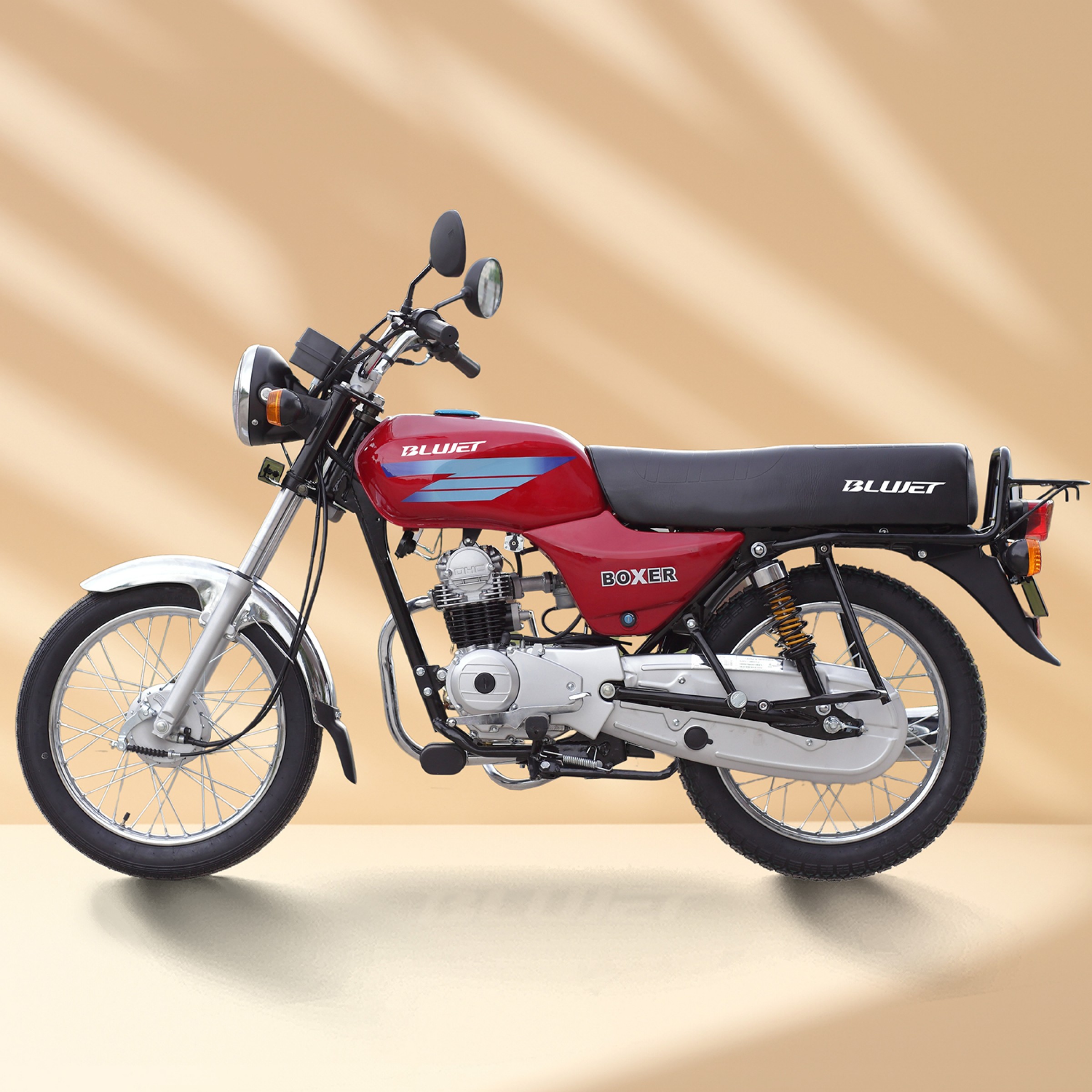

Boxer 100

€412.68 降價提醒
  • 品牌: Symcot
  • 型號: Boxer 100
  • 商品庫存: 1000

總價 €412.68
 Model: Boxer 100
Dimension.(L×W×H)(mm) 2080×760×1100
Wheel base(mm) 1320
Ground (mm) 310
Seat height(mm) 760
Turning angle <48°
Min turning radius(mm) 2040
Front/rear sprocket teeth 15/42
Gearshift 5-forward
Fuel tank(L) 10L
 Fuel Type Gasoline
Max. Load Capacity(kg) 150
Dead Weight(kg) 120
Displacement/Power(ml/kw): 110cc
Eco fuel consumption(L/100km) 2.2L
Brake Mode: Front Wheel Drum brake
Rear Wheel Drum brake
  Front Wheel Manual
Brake Operation Mode Rear Wheel kick
Wheel Rim Type Front spoke wheel:        1.40×17
Rear spoke wheel:        1.60×17
Tire type With tube
Front tire 2.75-17
Rear tire 3.00-17
Head light 12V  35W/35W
Winker 12V  10W
Battery(mm) With acid 12N7AH    150×60×130

 Engine Model 152FMH
Engine Type 1-Cylinder, 4-stroke, air-cool, Single Over Head Camshaft
Start Electric and kick
Ignition CDI
Bore×Stroke 52.4×49.5
Displacement(ml) 107
Compression rate 8.8:1
Magneto 12V 6 head, full phase
Oil Capacity(ml) 800
Spark plug A7TC
Spark clearance(mm) 0.6~0.7
Valve clearance(mm) 0.05~0.06
Lubriation type Press and splash
Carburetor PZ19
Transmission Constant mesh, 4-forward, with high shift protection
Clutch type Automatic, wet type, offcenter
Initial rate 3.722
Gears rate 1st: 3.273,2nd: 1.938,3rd: 1.350,4th: 1.043
Final trans Chain
Rotation direction Facing shaft, unclock wise
Size(mm) 477×395×280
Net Weight(kg) 25
Rated Power 4.6KW(7500r/min±5%)
Max Power 5.0KW(8000r/min±5%)
Max Torque 6.5N·m(5500-6500r/min)
Min fuel comsumption(g/kw.h) 367

Load Quantity 40HQ 178 sets
