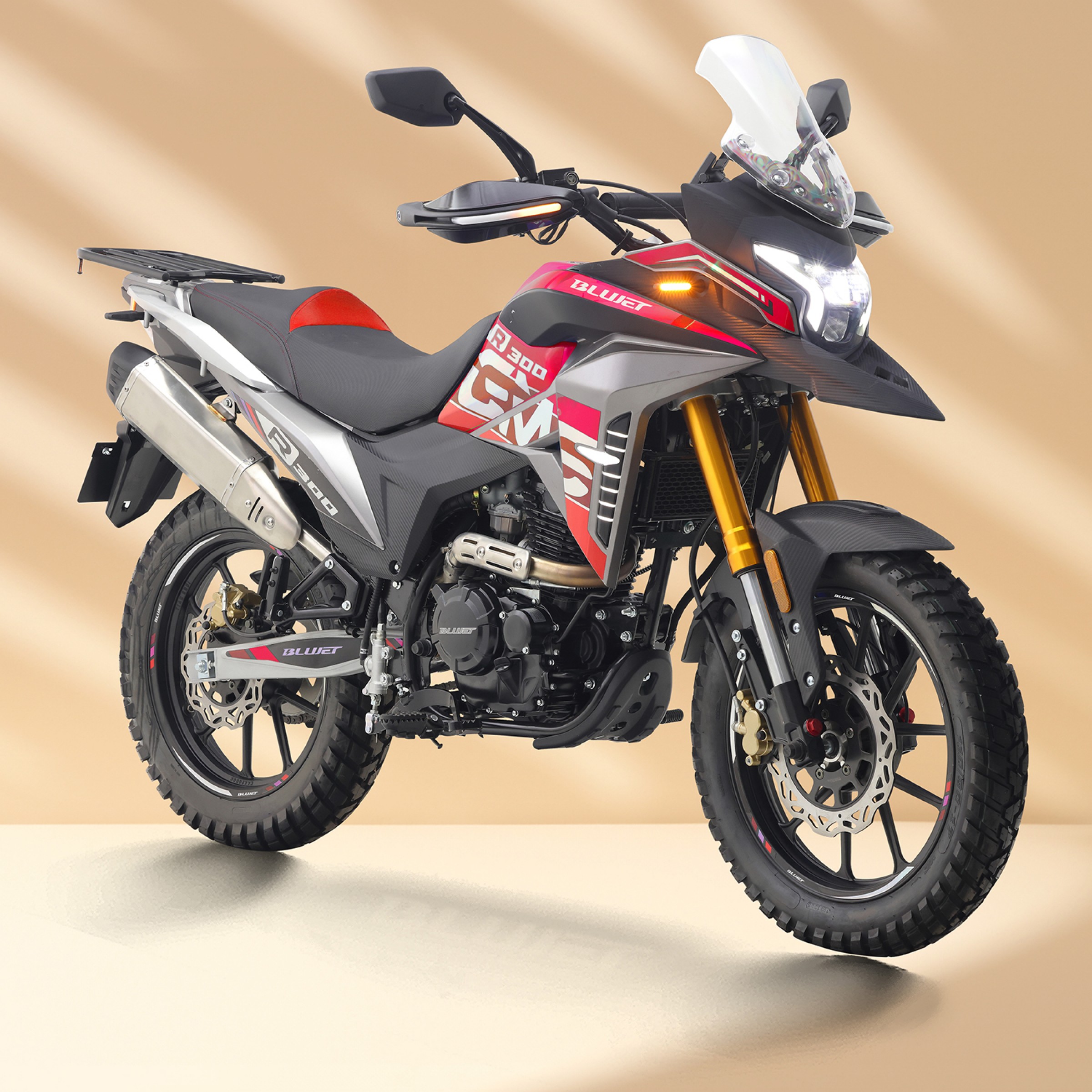

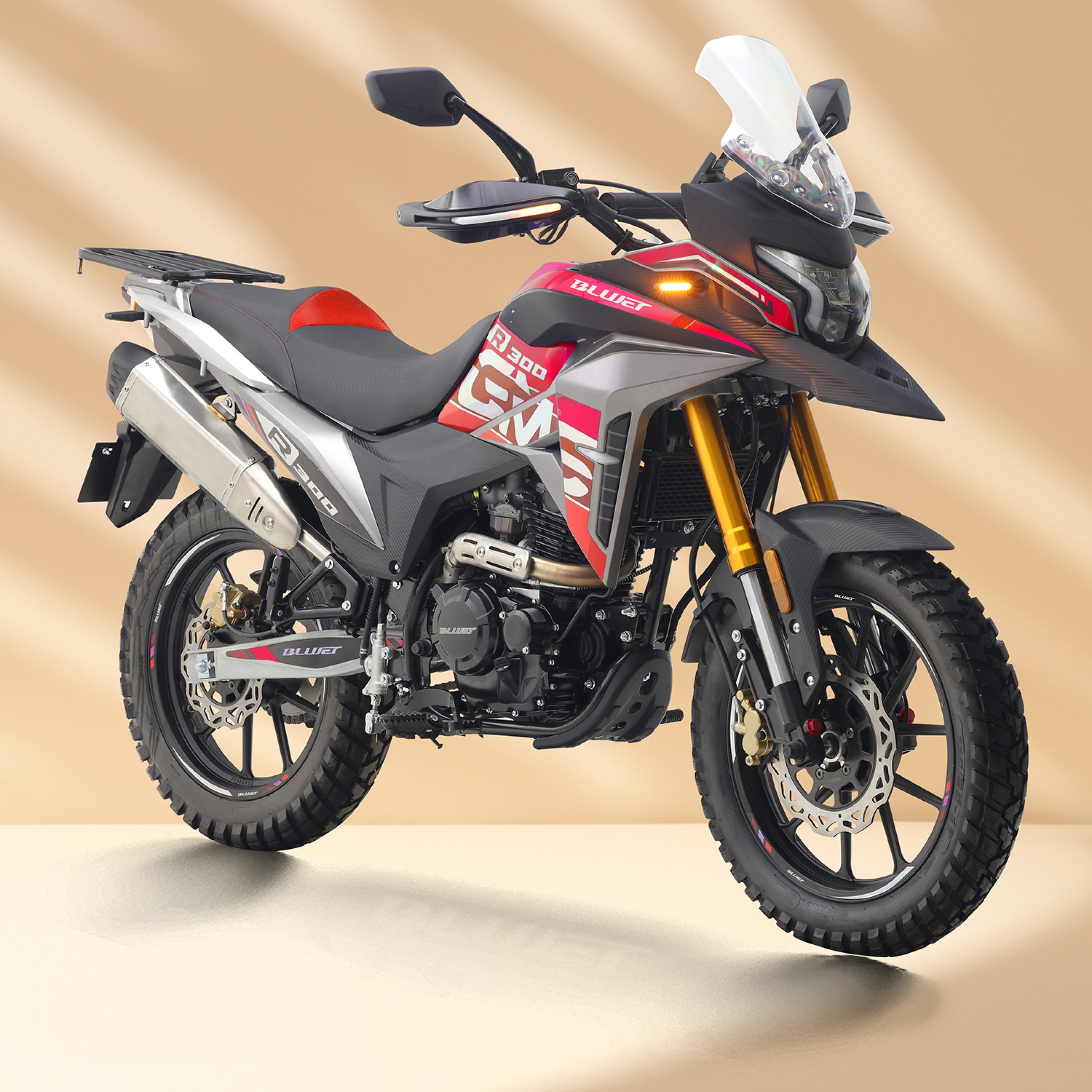

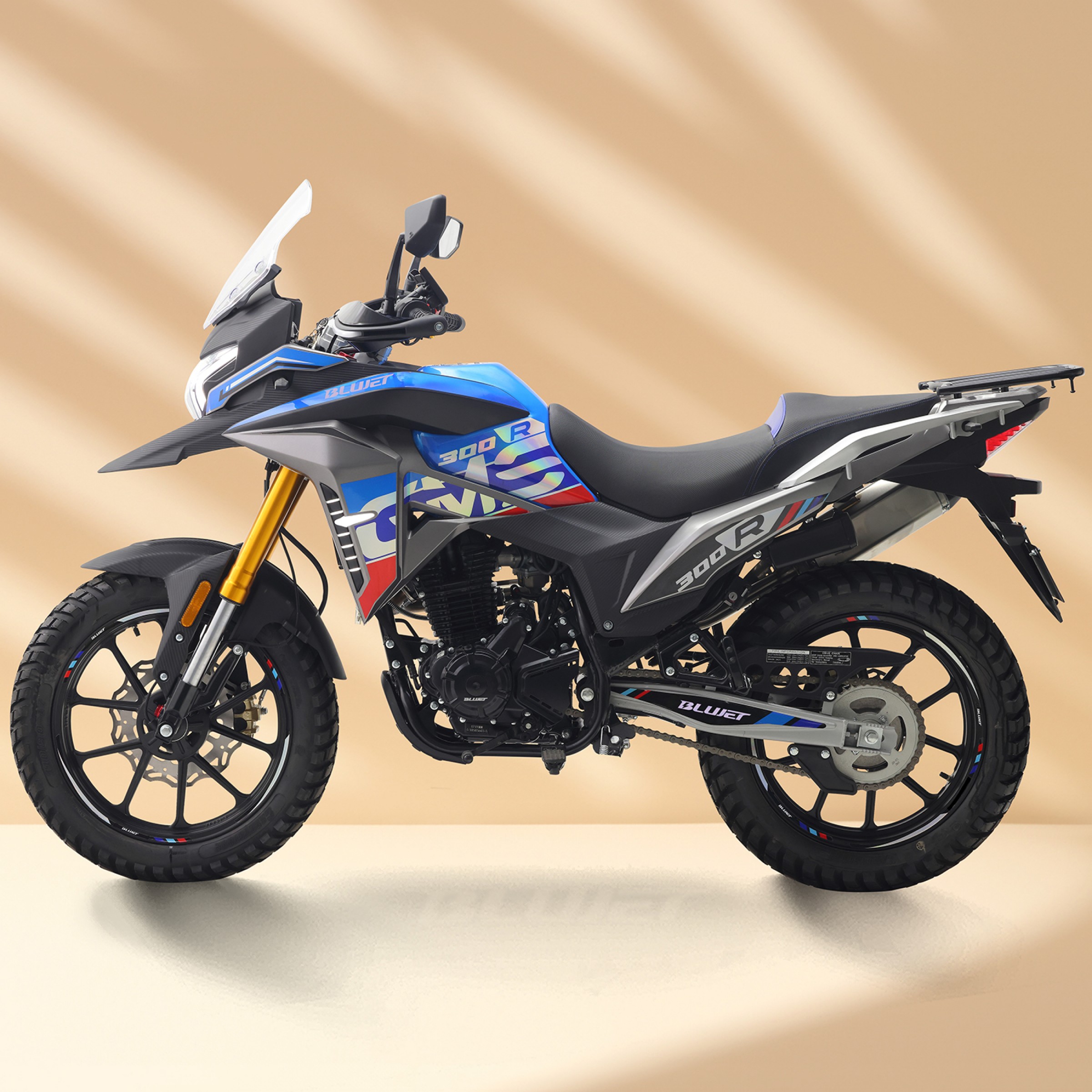

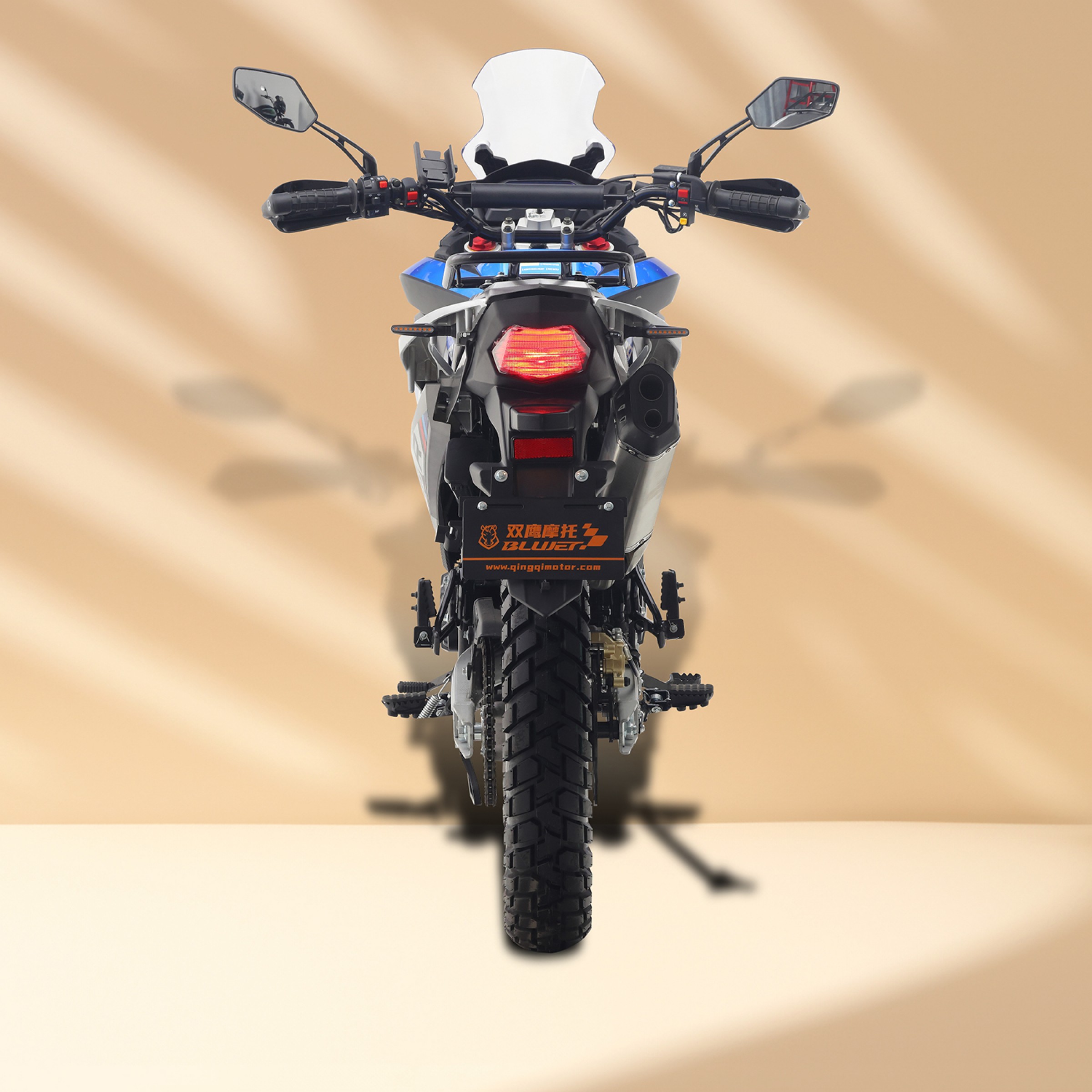

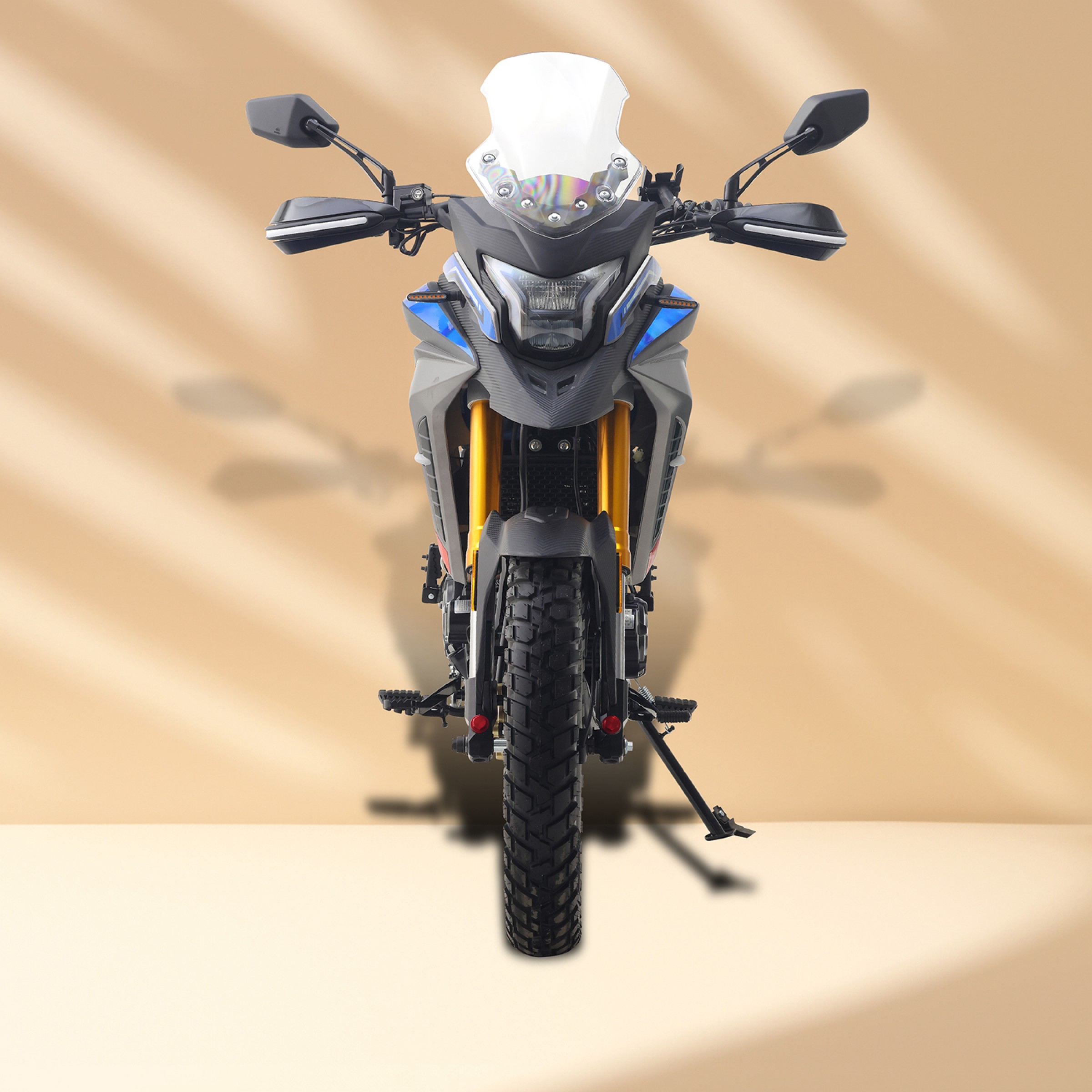

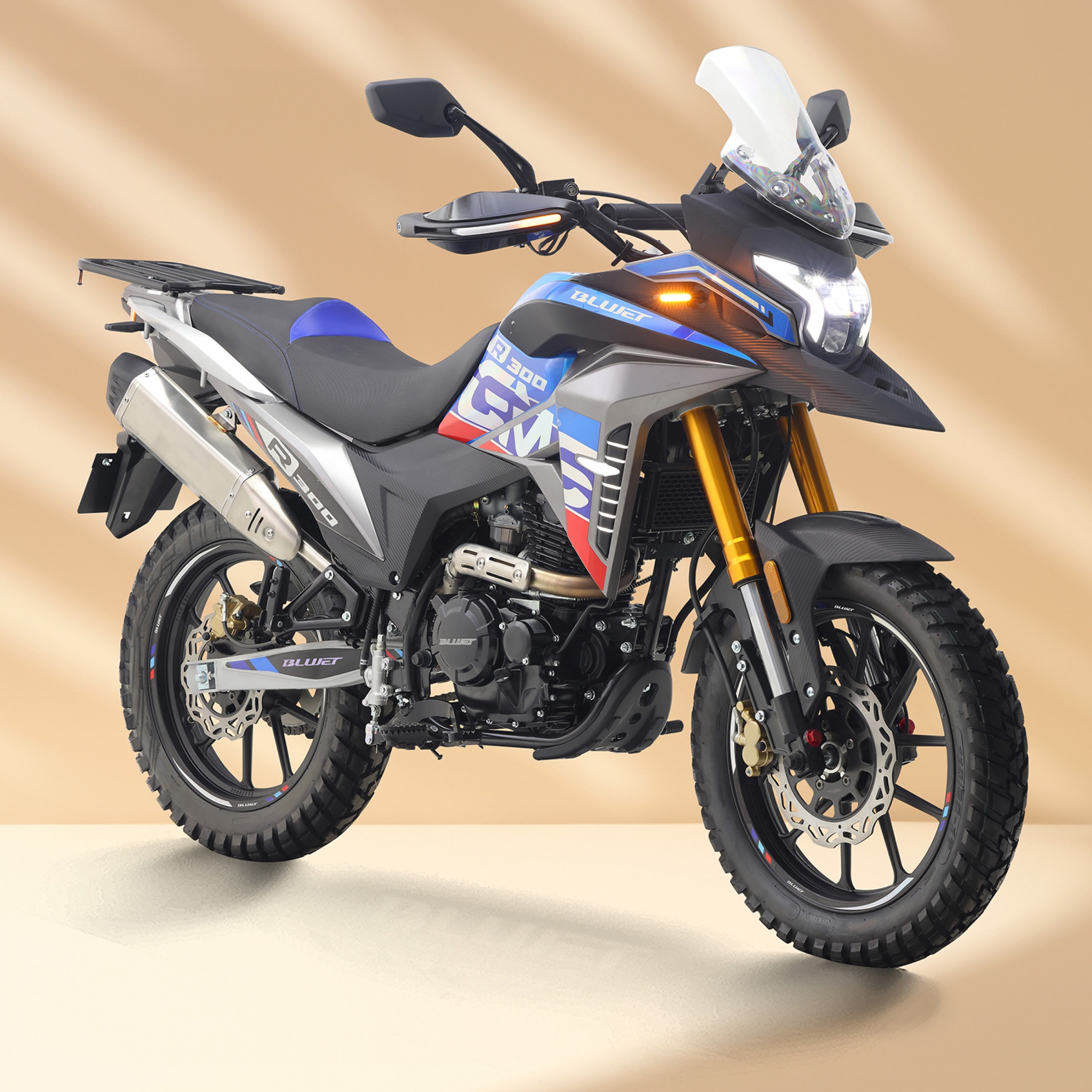

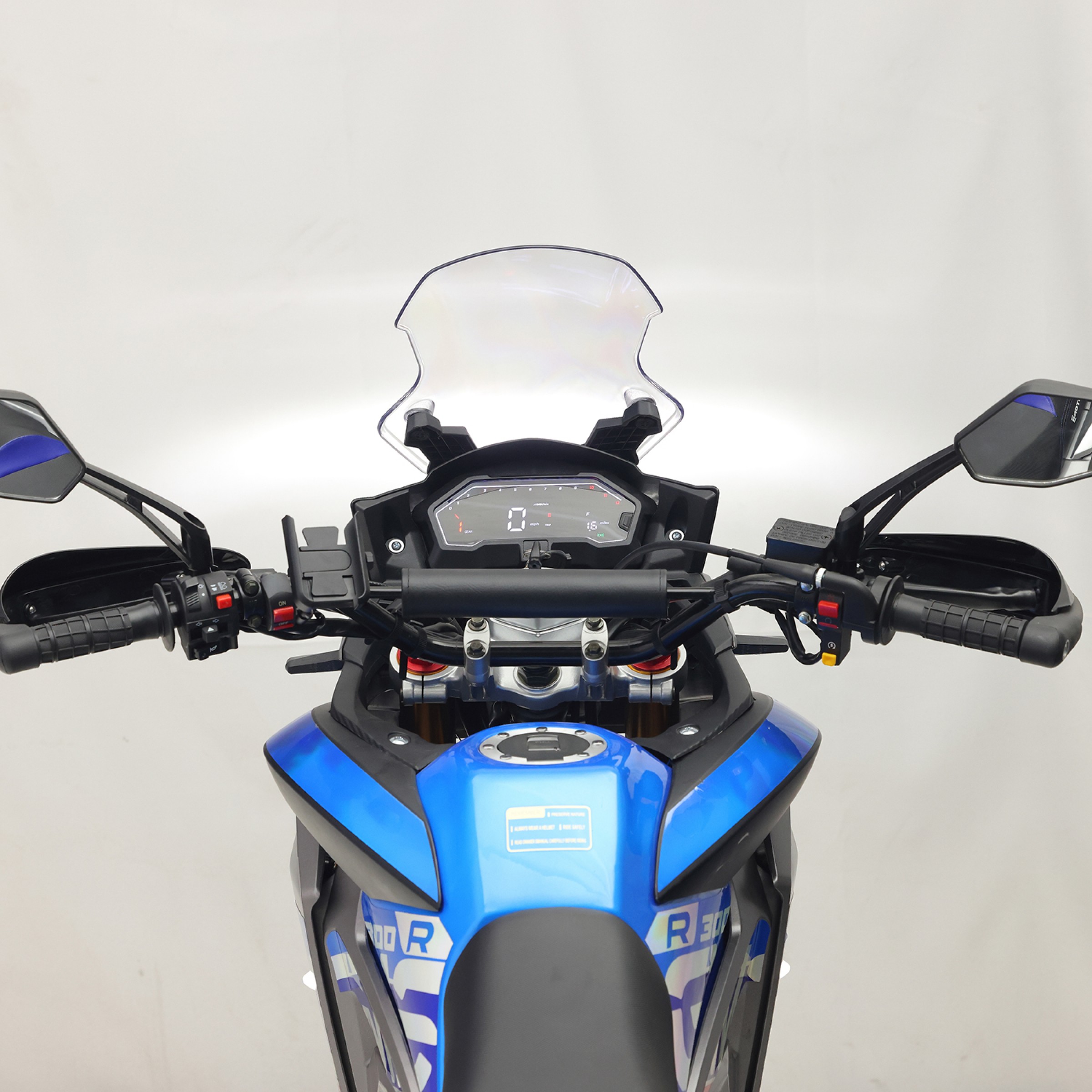

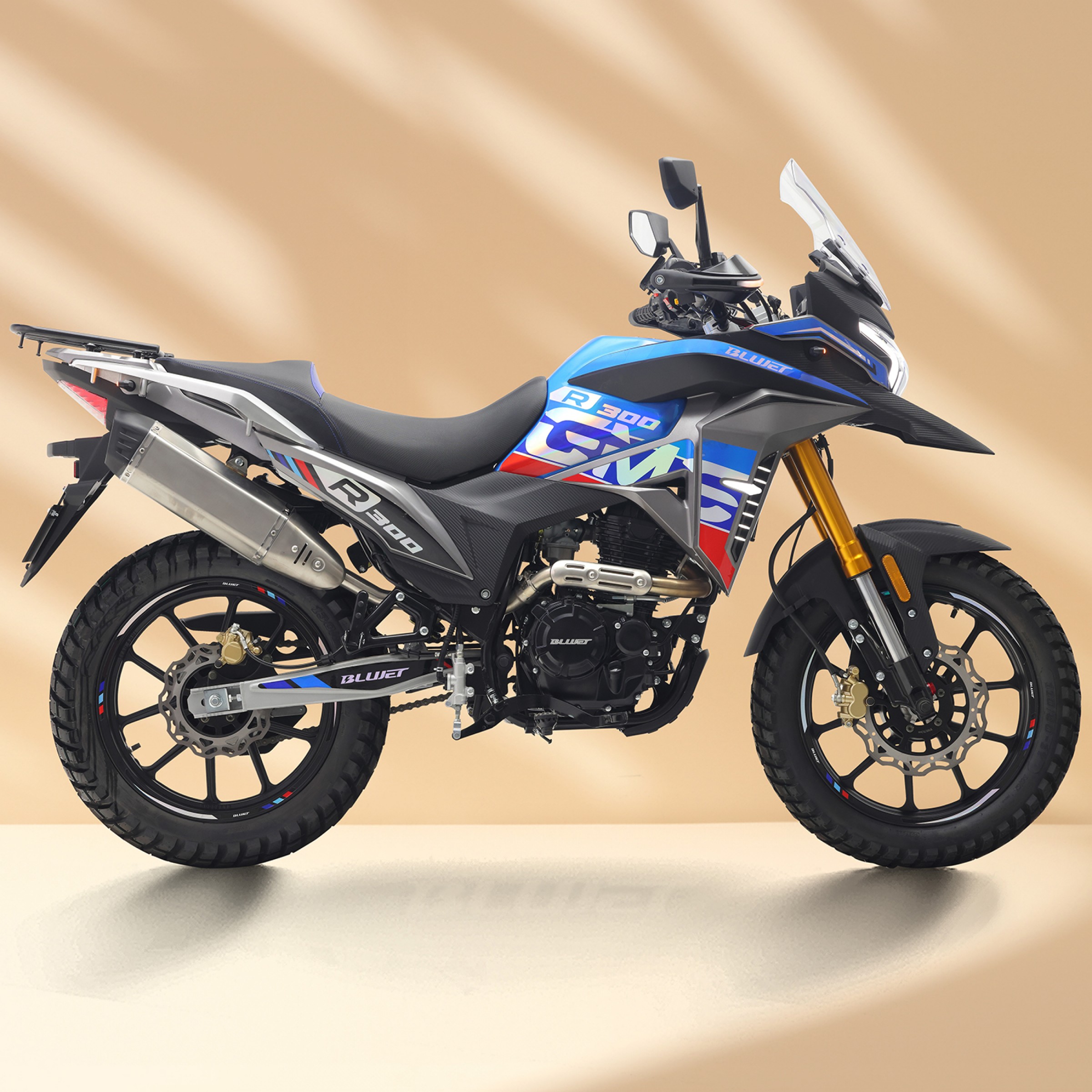

| Model： | GTS 300 |
| Dimension.(L×W×H)(mm) | 2145×820×1175 |
| Wheel base(mm) | 1390 |
| Ground clearance(mm) | 320 |
| Seat height(mm) | 900 |
| Turning angle | ＜48° |
| Min turning radius(mm) | 2520 |
| Front/rear sprocket teeth | 16/56 |
| Gearshift | 5-forward |
| Fuel tank(L) | 12.5 |
| Fuel Type | Gasoline |
| Max. Load Capacity(kg) | 150 |
| Dead Weight(kg) | 140 |
| Displacement/Power(ml/kw): | 300cc |
| Eco fuel consumption(L/100km) | 3.5 |
| Brake Mode： | Front Wheel:Disc brake |
| Rear Wheel:Drum brake | |
| Wheel Rim Type | Front spoke wheel: 1.85×17 |
| Rear spoke wheel: 2.15×17 | |
| Tire type | With tube |
| Front tire | 3.50-17 |
| Rear tire | 4.60-17 |
| Head light | 12V 35W/35W |
| Winker | 12V 10W |
| Battery（mm） | Maintenance Free: YTX7L-BS 114×71×106 |
| Engine type | 1-Cylinder, 4-stroke, air-cool, OHV |
| Engine Model | ZONGSHEN, ZS175FMY, 6-SPEED, INNER BALANCER, CHAIN |
| Start | Electric only |
| Ignition | CDI |
| Bore×Distance | 75×61.4 |
| Displacement(ml) | 271.3 |
| Compression rate | 9.3：1 |
| Magneto | 12V 8 HEAD |
| Oil capacity(ml) | 1100 |
| Spark plug | D8EA |
| Spark clearance(mm) | 0.6~0.7 |
| Valve clearance(mm) | 0.04~0.06 |
| Lubriation | press+splash |
| Carburetor | PE30 |
| Transmission | Constant mesh |
| Clutch type | Manual, multi-disc |
| Initial trans rate | 3.333 |
| Gearshift rates | 1st: 3.0 2nd:2.1 3rd: 1.4 4th 1.1, fifth: 0.9, 6th: 0.8 |
| Final trans | Chain |
| Rotation direction | Facing shaft, unclock wise |
| Size(mm) | 388×324×446 |
| N.W.(kg) | 35 |
| Max power | 16.0KW(8500r/min±5%) |
| Max torque | 22N·m(6500r/min) |
| Load Quantity SKD | 40HQ: 93 UNITS |
| Load Quantity CKD | 40HQ: 135 UNITS |
