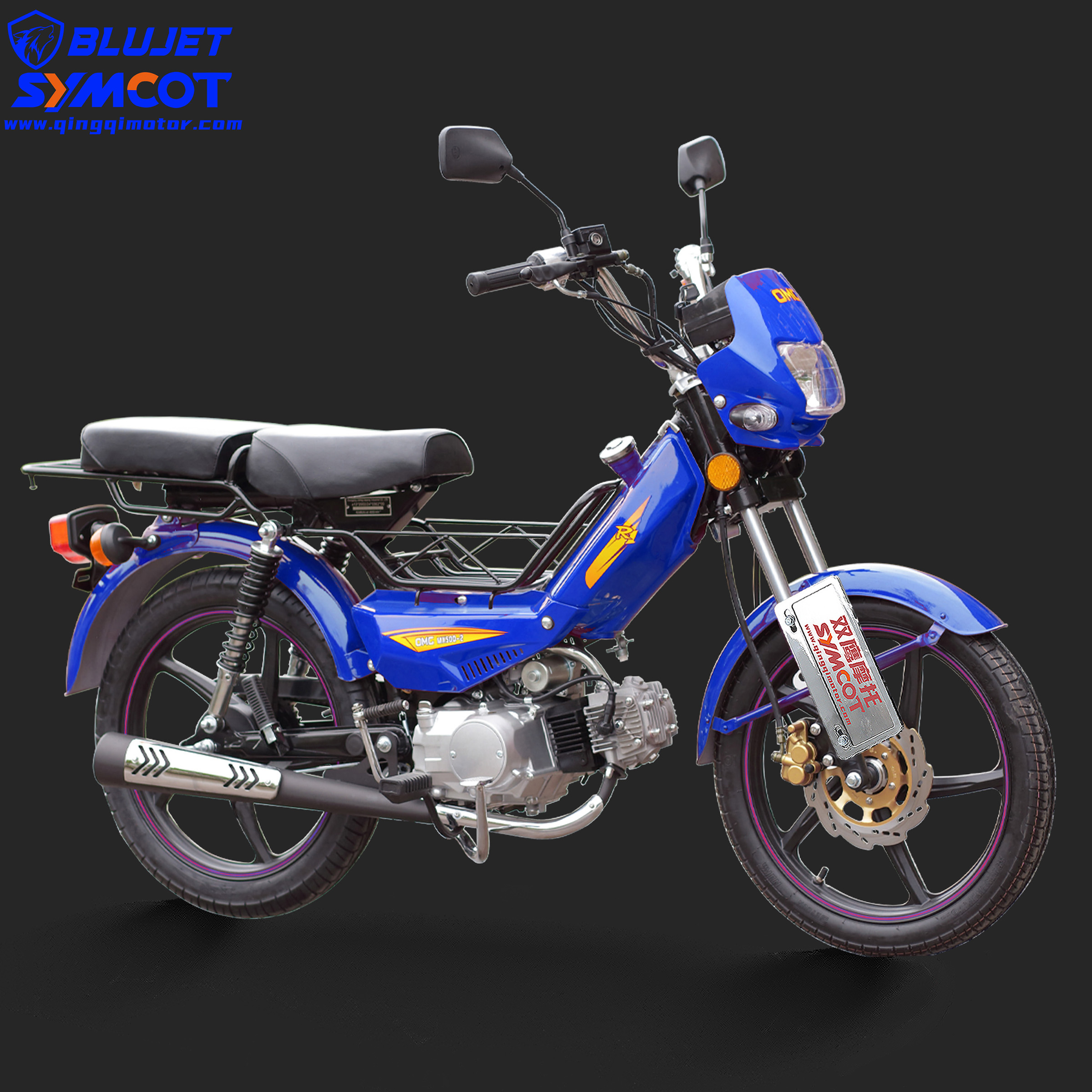

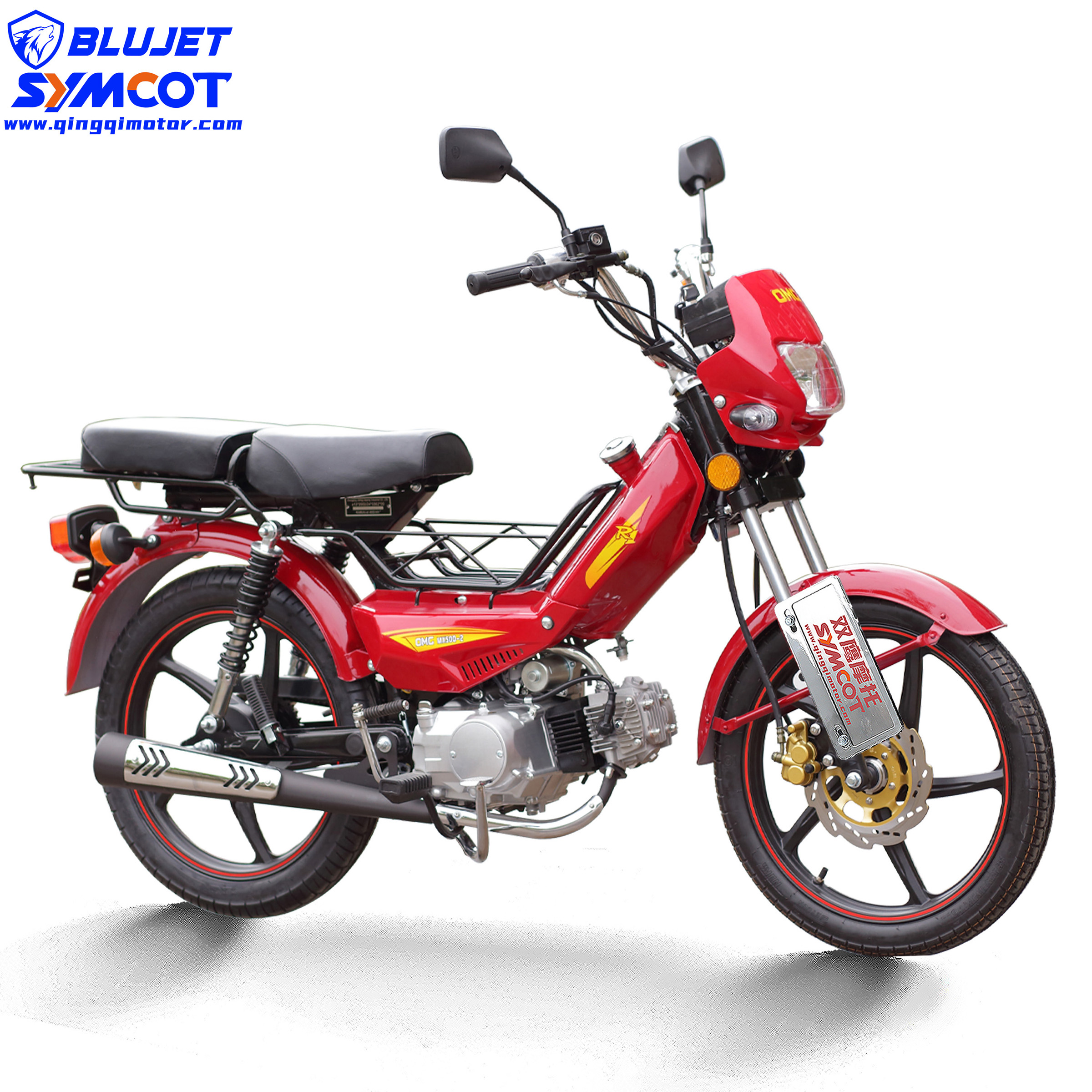

| Model： | Puppy70 | |
| Engine Model | 1P47FMD | |
| Dim.(L×W×H)(mm) | 1820×710×1090 | |
| Wheelbase(mm) | 1185 | |
| Ground clearance(mm) | 110 | |
| Seat height(mm) | 810 | |
| Turnign angle | 42° | |
| Min turning radius(mm) | 1800 | |
| Sprocket teeth(f/r) | 14/40 | |
| Gradient | ||
| Passenger | 1 | |
| Gearshift | 4-forward | |
| Fuel tank() | ||
| Max. Load Capacity(kg) | 105 | |
| Dead Weight(kg) | 78 | |
| Max. Speed(km/h) | ||
| Displacement/Power(ml/kw): | 70㏄ | |
| Eco Fuel consump(L/100kw) | ||
| Brake Mode： | Front Wheel | drum |
| Rear Wheel | drum | |
| Front Wheel | Handle | |
| Brake Operation Mode | Rear Wheel | Kick |
| Wheel Rim Type | Front rim: 1.20×17 | |
| Rear rim: 1.40×17 | ||
| Tire type | With tube | |
| Front tire | 2.50-17 | |
| Rear tire | 2.75-17 | |
| Headlight | 12V35/35W | |
| Winker bulb | 12V 10W | |
| Battery(mm) | 12N2.5AH, size 80×70×105 | |
| Engine type | 1-cylinder, air-cool, 4-stroke | |
| Start type | Kick and electric | |
| Ignition | CDI | |
| Borexstroke | 47×41.4 | |
| Displacement(ml) | 72 | |
| Compression rate | 8.8：1 | |
| Magneto | 12V6head, half wave | |
| Oil capacity（ml） | 800 | |
| Spark plug(mm) | A 7 T C | |
| Spark clearance(mm) | 0.6~0.7 | |
| Valve clearance(mm) | 0.05~0.06 | |
| Lubriation | Press+splash | |
| Carburetor | PZ19 | |
| Transmission | 4 gears | |
| Clutch | automatic | |
| Initial transmission rate | 3.722 | |
| Gears rate | 1st gear: 3.273, 2nd gear: 1.938, 3rd gear: 1.350 4th gear: 1.043 | |
| Final transmission | Chain | |
| Size(mm) | 410×295×310 | |
| N.W.(kg) | 19 | |
| Rated power | 7500r/min;3.3kw | |
| Max power | 8000 r/min;3.6kw | |
| Max torque | 5500 r/min;4.8N·m | |
| Packing size(mm) | 1470x380x650 | |
| Loading qty | 192 Units | |
| Packing materal | Carton with wood frame | |
